04/ Connecting Power and Data
4.1 Connecting Power
To apply power, first check that the head pan and tilt locks are released.
This fixture can operate on any 180-240V~ 50/60Hz AC mains power supply.
The maximum power consumption is 2265W.
The fixture must be grounded/earthed and able to be isolated from AC power. The AC power
supply must incorporate a fuse or circuit breaker for fault protection.
Wiring and connection work must be carried out by a qualified electrician.

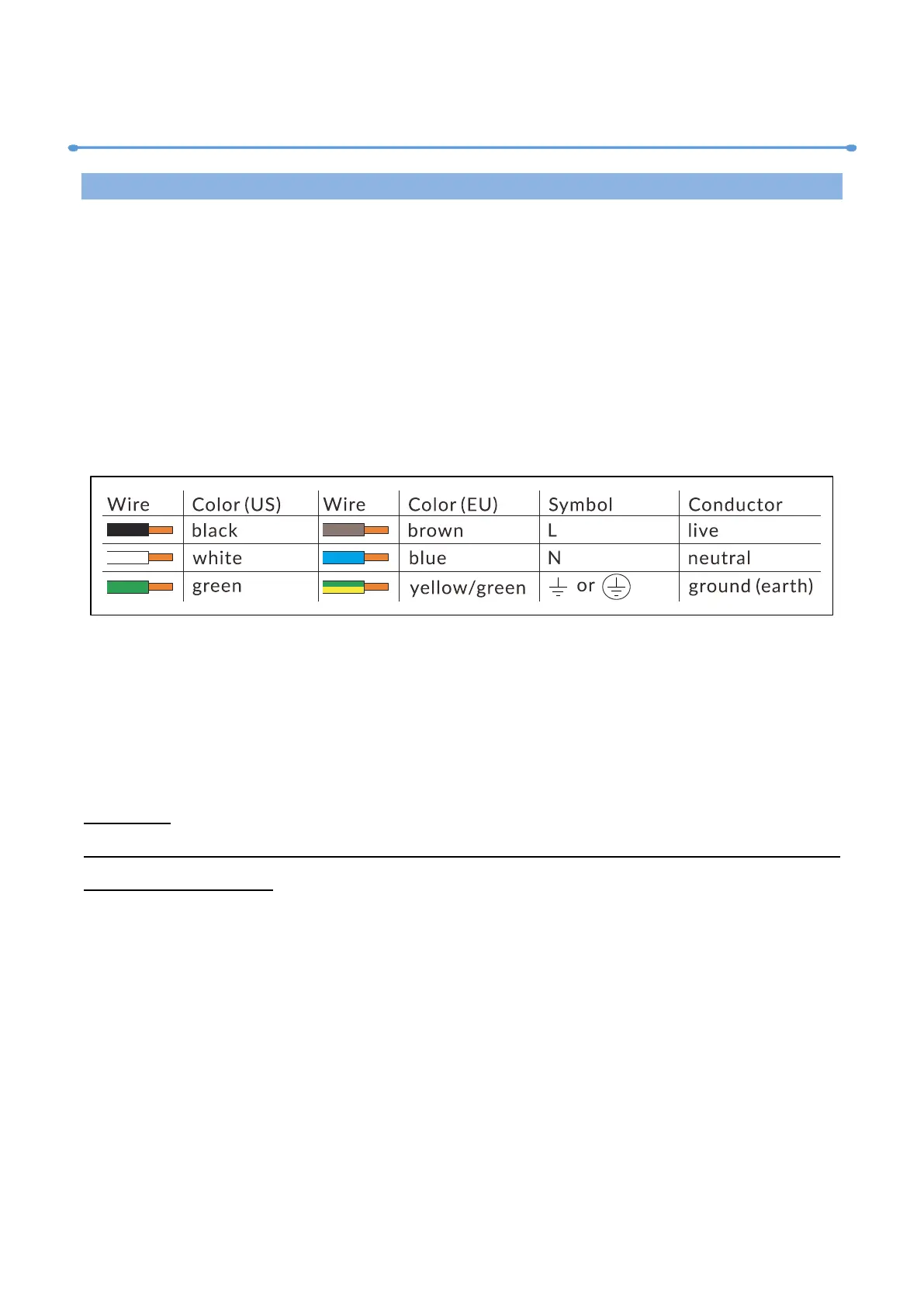

The power cable color coding is given in the figure below:
Description for power cord set should be used: Listed SJOW flexible cord with rating: 300V,
105°C, VW-1, 14AWG x 3C, molded with 5-20P attachment plug and terminated with cord
connector model RCAC3F-X-000-01 with rating 250V, 16A by Neutrik Technology (Ningbo)
Co., Ltd. The power cord shall be at least 914mm (lt is to be measured from the face of
attachment plug to the face of connector).
CAUTION!
DO NOT CONNECT THE FIXTURE TO AN ELECTRICAL DIMMER SYSTEM AS DOING SO
MAY CAUSE DAMAGE.
