ACMER P1 - Tailboard and Y-axis Assembly

Required materials: Tail plate assembly, Y-axis section bar assembly, m5*35
screws 2pcs, m5*16 screws 2pcs
材料：背板组件、Y轴型材组件、 M5*35螺丝 2PCS 、 M5*16螺丝 2PCS。
2. Assemble the tailboard assembly and Y-axis section bar assembly
组装背板组件与Y轴型材组件

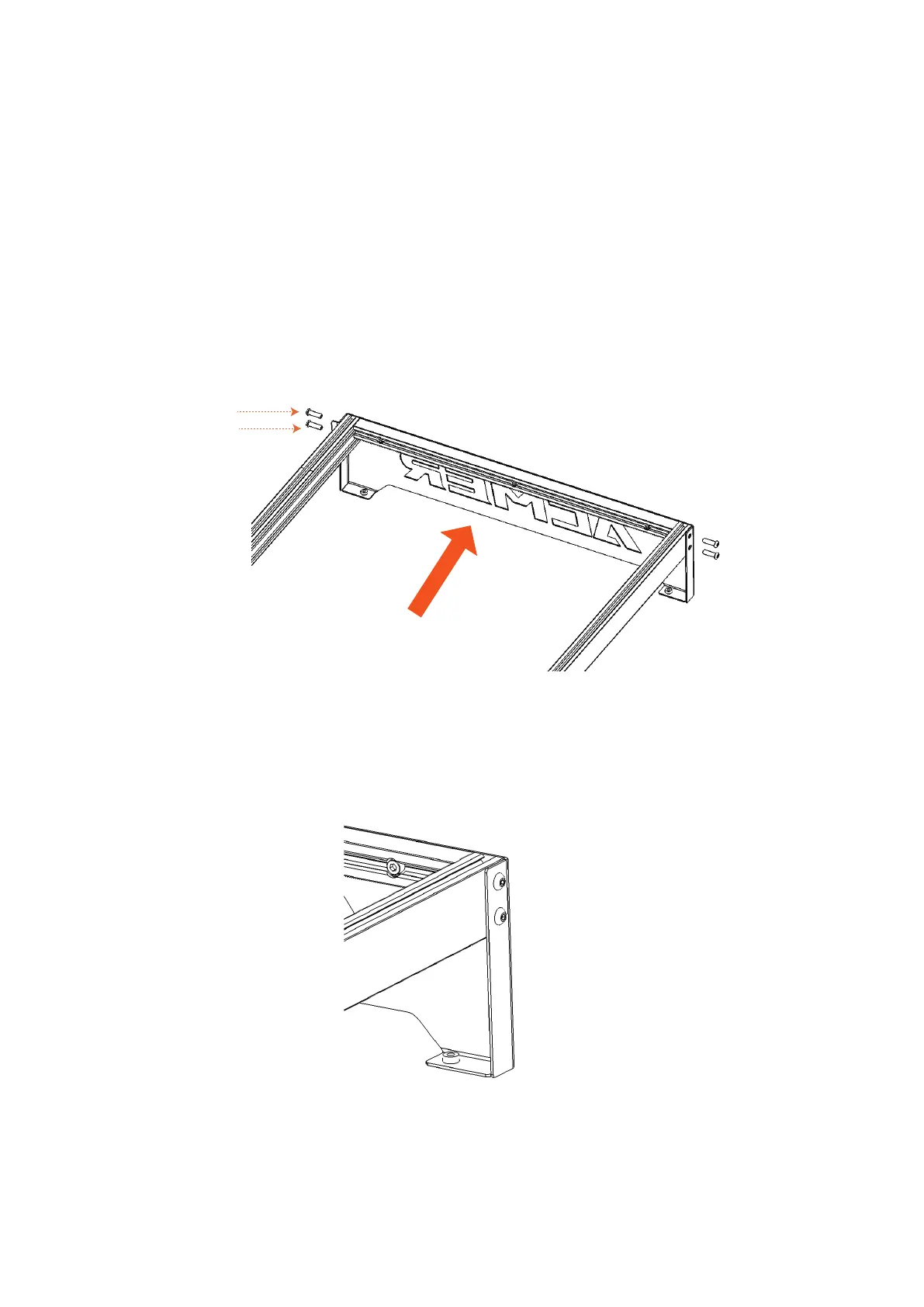

2.1 Assemble the Y-axis and tailboard assembly as shown in the figure
按照如图所示方式组装Y轴和尾板组件
2.2 Lock the screws from the two holes on the side for fixation
从侧面两个孔位锁上螺丝固定
M5*35 screws
M5*16 screws
08
