6.2

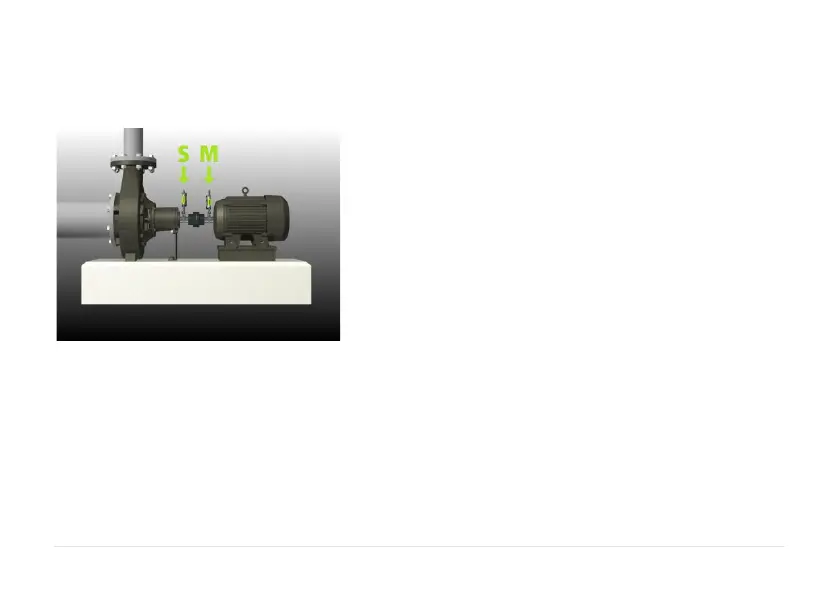

The EVO system has two measuring units
that are placed on each shaft by using the
fixtures supplied with the system.
After rotating the shafts into different
measuring positions, the system calculates
the relative distance between the two shafts in
two planes. The distances between the two
measuring planes, distance to the coupling
and distances to the machine feet are entered
into the system. The display box then shows
the actual alignment condition together with
the position of the feet. Adjustment of the
machine can be made directly, according to
the displayed values.
The alignment results can be saved in the
memory manager. The measurements in the
memory manager can easily be transferred to
a PC for further documentation purposes.
