6.4
MOUNTING
The sensor marked “M” should be mounted
on the movable machine and the sensor
marked “S” on the stationary machine. The
sensors shall be assembled on their V-block
fixture and placed on each side of the
coupling.

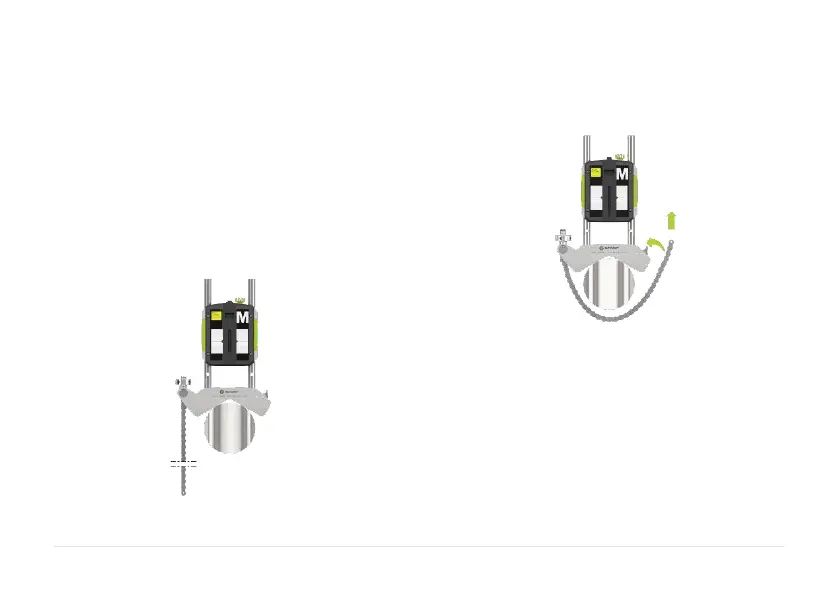

Hold the V-block fixture upright and mount it
on the shafts of the measurement object.
Lift the open end of the chain, tension it so
that the slack is removed and attach it to the
hook.
