MEASUREMENT POINT
REGISTRATION

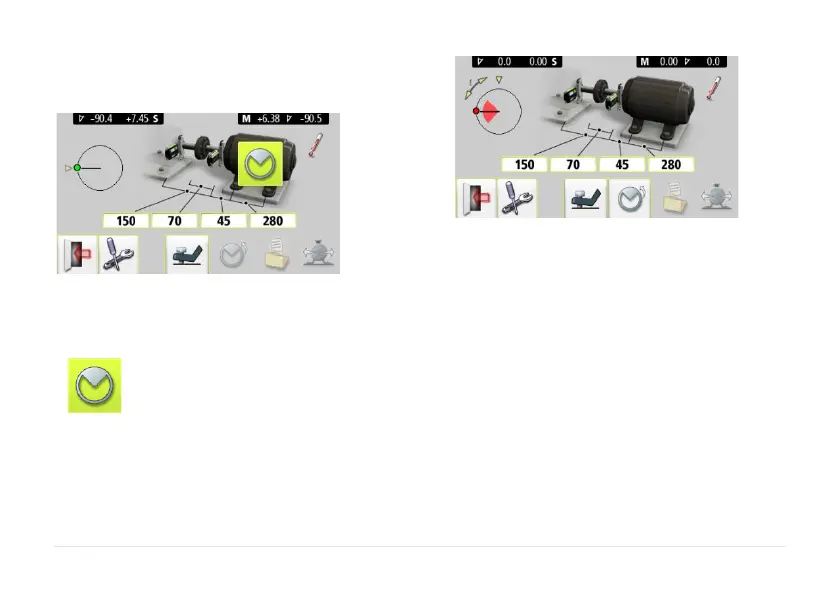

Set the sensors at approximately the same
rotational angle at the first measurement
position.
Touch the register icon.
This registers the first reading.
Rotate the shafts to the next position. The
shafts must be rotated over a minimum of 45°.
Green sector shows permitted positions. Red
sector shows forbidden positions. The
Register icon is not shown if the rotation is
less than 45°.
