Acom 2000A User Manual

14

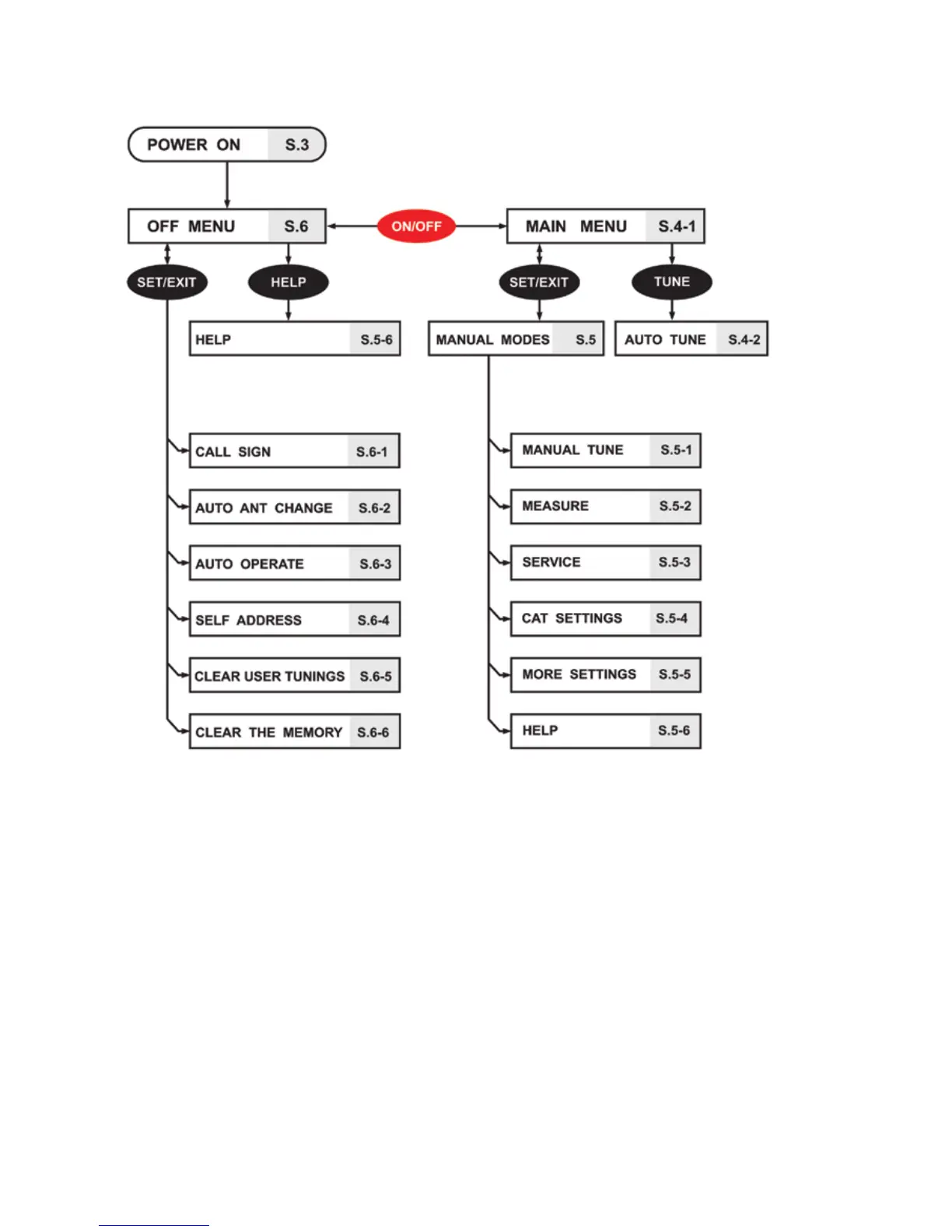

Fig.3-2 Menu Structure (see also S.10)
N O T E
We recommend that before powering up the amplier for the rst time, you
familiarize yourself with the functions of the RCU in the OFF menu. The
available controls and indications seen on the RCU are similar in both the
OFF and MAIN menus.
You can proceed in one of two directions:
a) you can enter the OFF menu (see below) or:
b) you can turn on the amplier and begin the warm-up sequence. After 2.5 minutes you will
enter the MAIN menu (see S.4-1) and may start operating the amplier.
The OFF-menu (see also section 6) can be reached by pressing the SET/EXIT button:

Acom 2000A Specifications

General

Power Gain	13 dB
Cooling	Forced air
Complies with CE and FCC	Yes
Frequency Coverage	1.8-29.7 MHz
Harmonic Suppression	Better than 50 dB
Input Impedance	50 Ohms
Tube	4CX800A
Input VSWR	1.5:1 or less
