12
ACORN 80 Maintenance & Service Manual
SECTION 3
Operating Instructions
SECTION 4
Installation & De-Installation
IF THE OSG HAS DEPLOYED (THIS SYMBOL WILL BE DISPLAYED ON THE
DIAGNOSTIC DISPLAY*) DO NOT USE THE HAND WINDER IN THE DOWNWARD
DIRECTION. THIS COULD CAUSE DAMAGE TO THE DRIVE MECHANISM.
* ONLY WHEN A CALL HAS BEEN MADE.
OPERATING INSTRUCTIONS
3.1 Carriage Hand Winding
Specific Operating Instructions for the Stairlift User are described in the User Manual. The additional instructions
in this manual are for Servicing and Maintenance Engineers.
The carriage can be hand wound manually along the rail if the drive motor cannot be used.
ENSURE THAT POWER IS SWITCHED OFF ON THE ARM REST HOLDING SWITCH.*
* DEPENDANT ON MODEL.

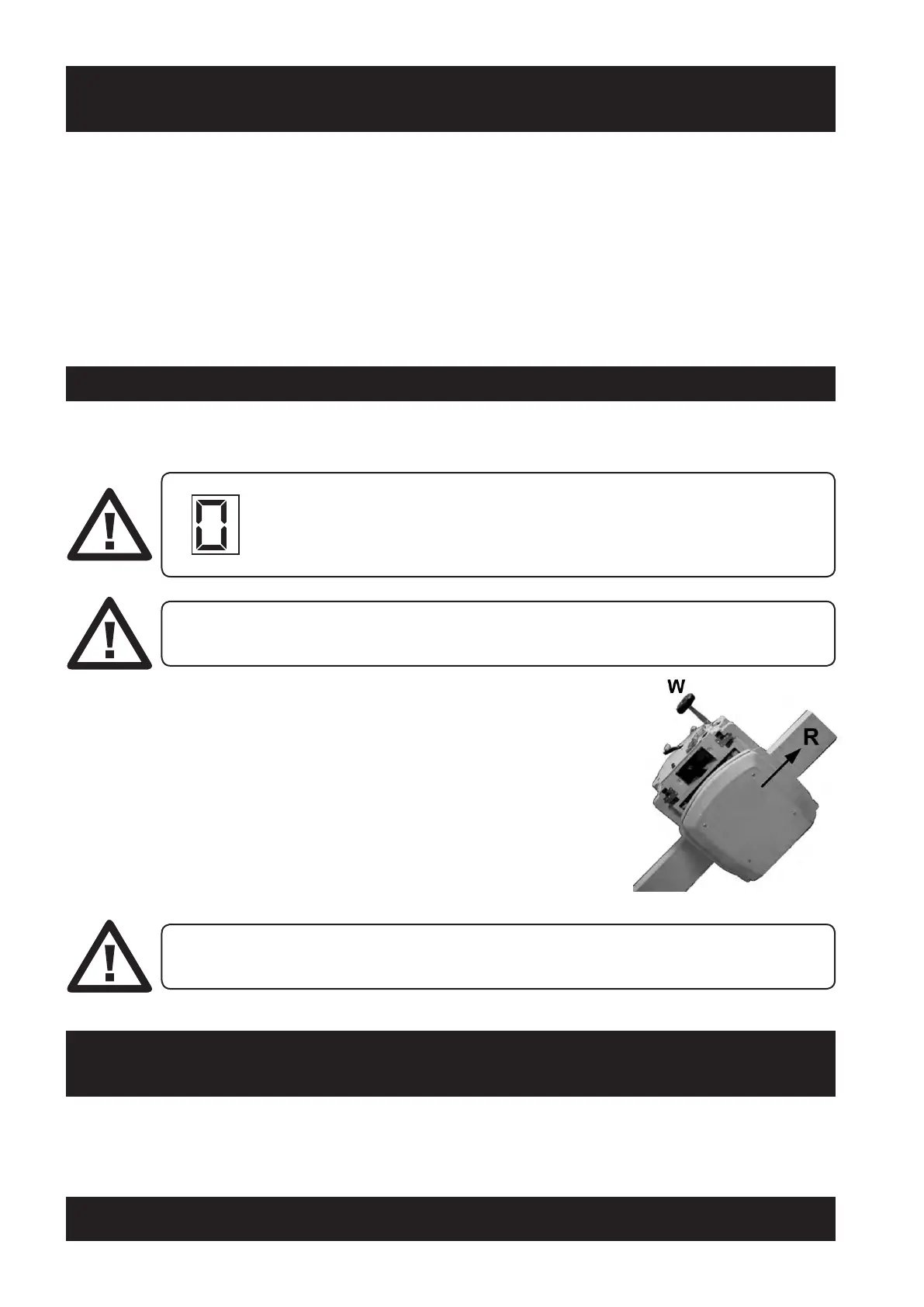

Remove the Drive motor cover cap, insert the Hand Winding Wheel (W) and
rotate to move the carriage along the rail (R).
Refer to the Installation Manual for detailed instructions.
ON NO ACCOUNT MUST POWER TOOLS BE USED TO WIND THE CARRIAGE
ON OR OFF THE RAIL.
