ACORN 80 Maintenance & Service Manual
SECTION 6
Testing & Setting
6.5 Testing Batteries
The following readings are satisfactory:
Battery Voltage 26-30V
D.C. Charge Voltage 30V
D.C. Trickle Charge Current 400 milliamps
D.C. Bulk Charge Current 800 milliamps
IF ANYTHING CHANGE FROM THE ABOVE READINGS CONTACT
TECHNICAL SUPPORT +44 (0)871 200 2448

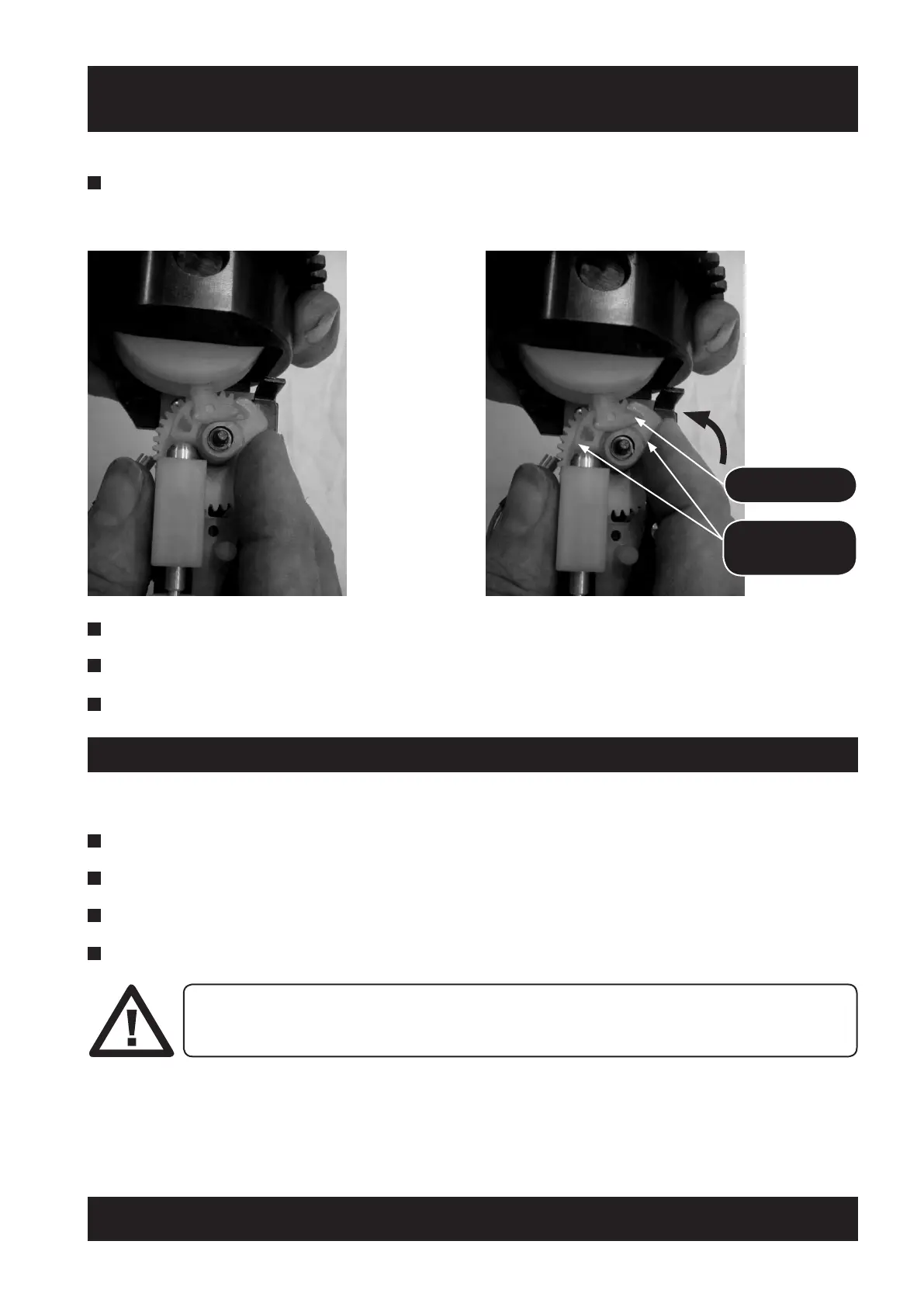

6 At the same time as pressing down on the trigger make sure that the latch & lever is located around the
wedge arm and that the gears are in mesh on the opposite side of the OSG. Please note the images below
show the OSG removed from the carriage, to make it clearer.
7 Re-fit the Power Bogie outers back onto the carriage.
8 Switch on the lift using the holding switch located on the seat arm/ back of the seat cover.
9 Run the lift an upward direction using the direction controller.
WEDGE ARM
LATCH & LEVER
Located around the
wedge arm

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
