ACORN 80 Maintenance & Service Manual
SECTION 6
Testing & Setting

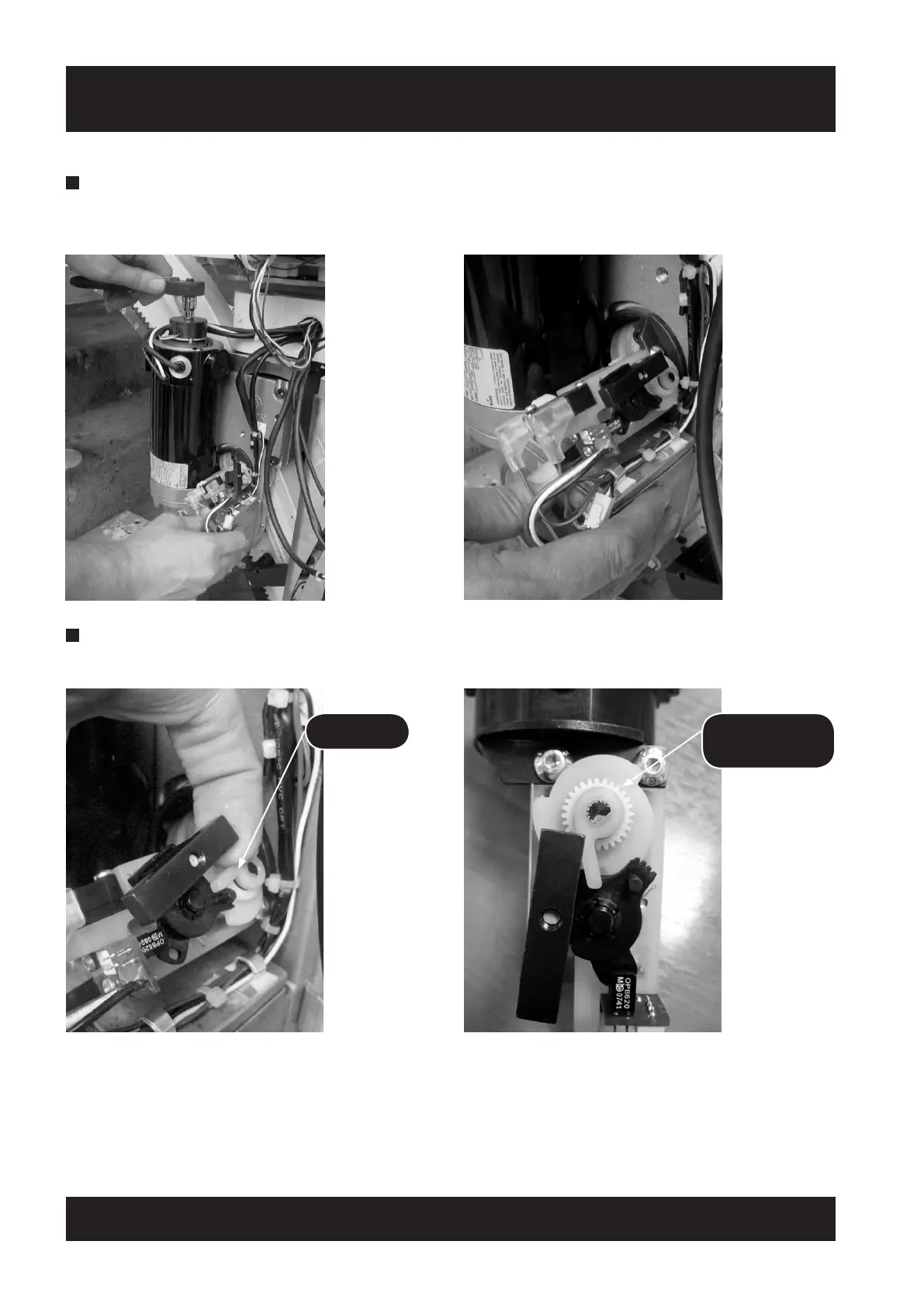

5 Press down on the White trigger into its normal operating position ensuring the teeth of the regulator stay
clear of the gear.
TRIGGER
White
CAM GEAR
Correct position of
regulator and gearing
4 Whilst keeping the reset lever held hand wind the stair lift in an upwards direction until OSG wedges release
and the regulator weight is in a horizontal position (normal operating position) ensuring the teeth of the
regulator are clear of the Cam gear. Once set, release the reset lever.
