ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components
These are inscribed in English on the main board, and are provided here as a numbered list for translation
purposes when necessary.

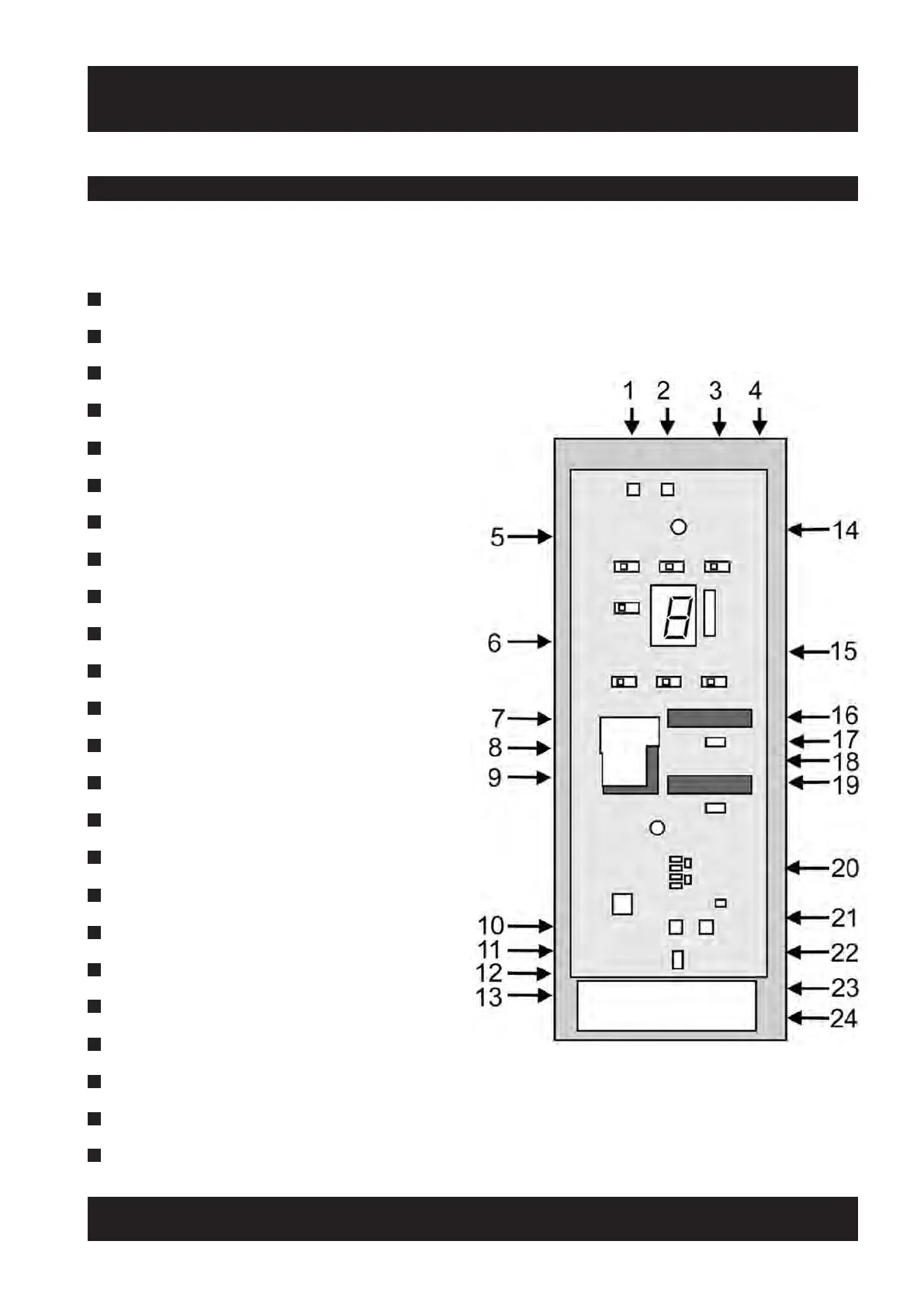

7.5.3 PCB Connections
1 Level Motor Encoder
2 Ground
3 Drive Motor Encoder
4 Main Motor Brake
5 Level Motor Positive
6 Level Motor Negative
7 Battery Positive
8 Battery Negative
9 Thermistor
10 Right-hand PSE (Pressure Sensitive Edge)
11 Overtravel (Levelling)
12 Final Limit
13 Footrest
14 Main Motor Positive
15 Main Motor Negative
16 Battery Positive
17 Battery Negative
18 Thermistor
19 Charger
20 Left-hand PSE (Pressure Sensitive Edge)
21 Arm
22 Options
23 Seat
24 Overspeed

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
