TESTING & SETTING
6.1 Diagnostic Display
The LED (Light Emitting Diode) on the PCB (Printed Circuit Board) is visible through a window in the lift Front Cover.
6.1.1 Normal Operation & Programming Modes

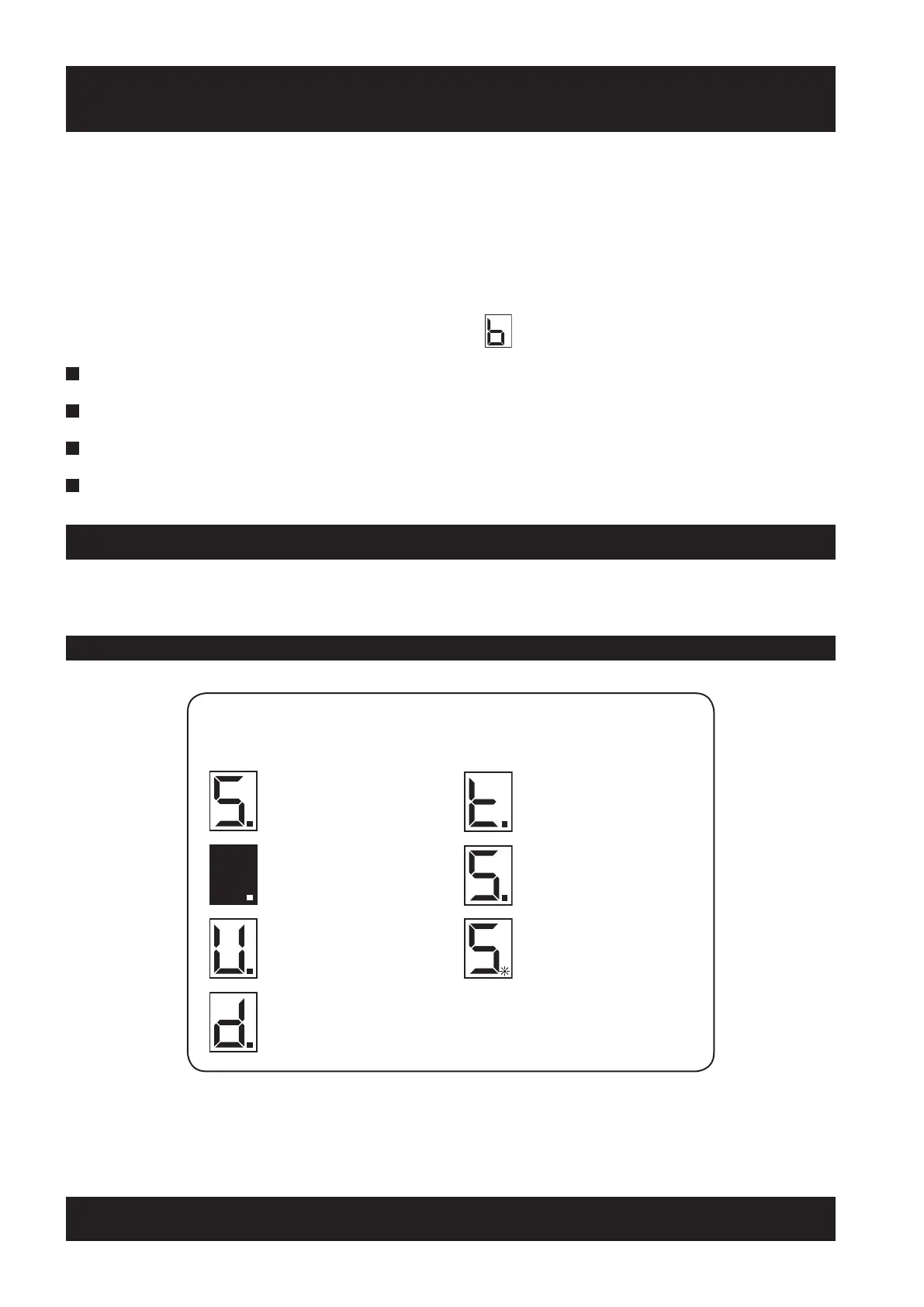

NORMAL OPERATION
Displayed when the lift is operating correctly.
Lift is in Standby Condition and
ready to use
Lift is in Standby Condition but
holding switch is set to off
Lift is moving up the rail
Lift is moving down the rail
Lift is at its correct stopped
position
Batteries are fast charging
(small light on)
Batteries are trickle charging
(small light flashing)
1 Switch off lift at on/off switch.
2 Put call in using rocker switch in required direction.
3 Switch on lift with on/off switch whilst holding the call in on the rocker switch.
4 The lift will now drive.
OVERRIDE INSTRUCTION
The following instruction should assist the installer/engineer if a fault is present.
