ACORN 80 Maintenance & Service Manual
SECTION 6
Testing & Setting

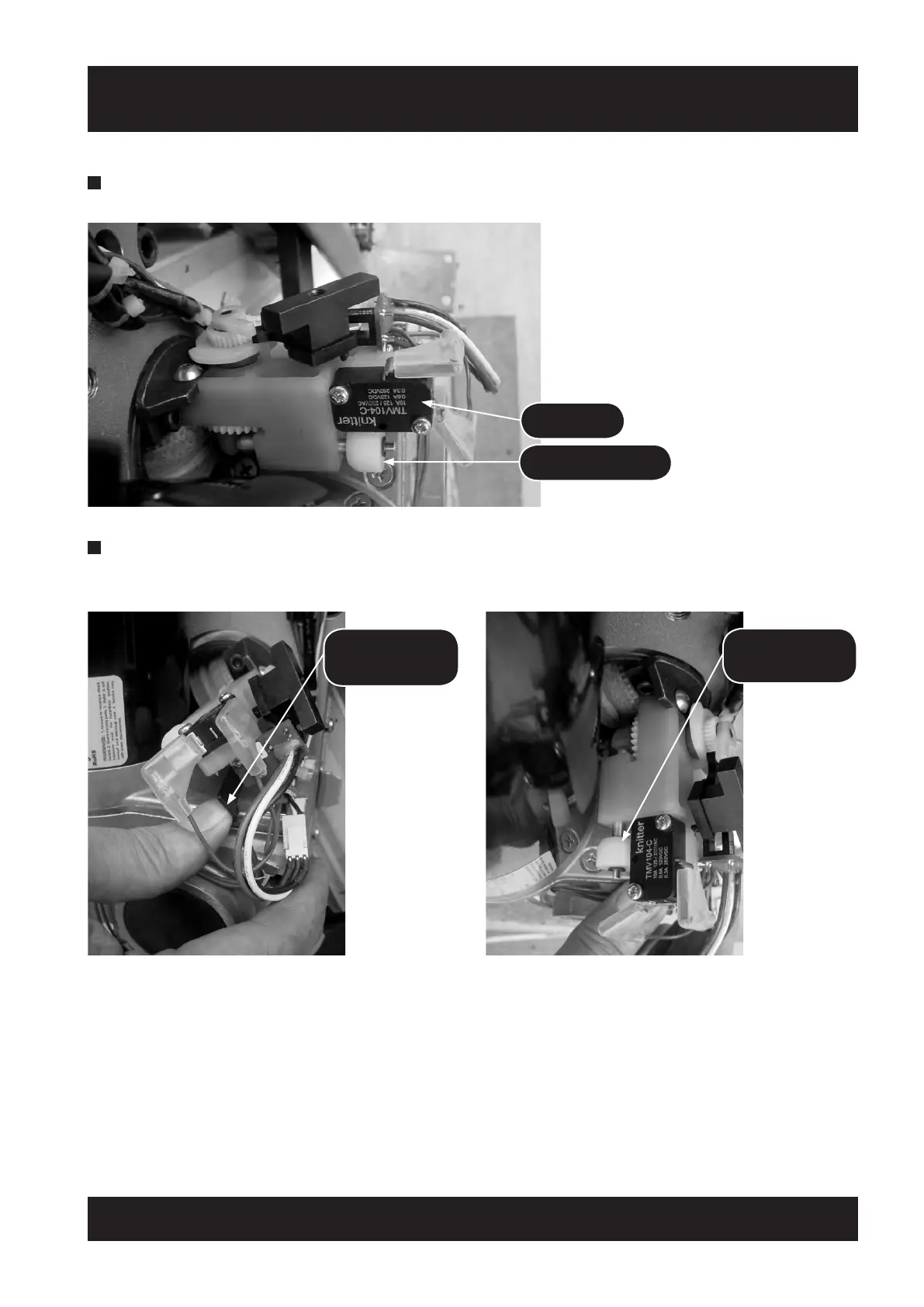

3 To reset the OSG, Press and hold down on the Reset Lever (In a downstairs direction) and this will deactivate
the switch by resetting the plunger back to its original position.
RESET LEVEL
To be pressed in a
downstairs direction
PLUNGER
Reset back to its
original position
2 Picture below shows plunger in it’s fired position activating the switch.
SWITCH
PLUNGER
In its fired position

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
