Acorn 80 User Manual

41
ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components
7.7 Power Bogie
7.7.1 Main Components
THESE ITEMS ARE SHOWN AS PART OF THE ASSEMBLY AND ARE NOT NECESSARILY
COMPLETE SPARE PARTS.

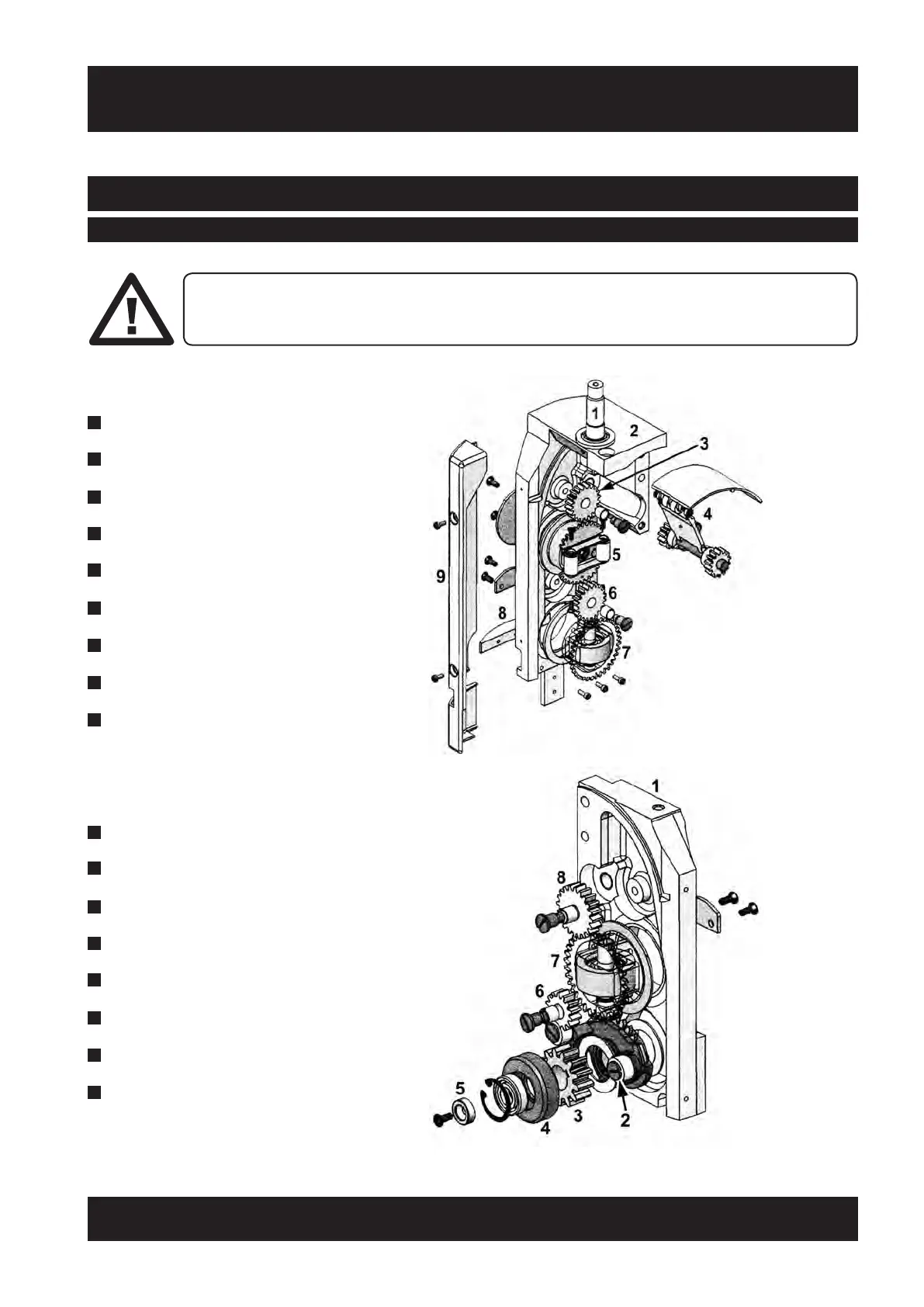

POWER BOGIE FRONT ASSEMBLY
1 Pivot Spindle
2 Front Casting
3 Gear
4 Shutter Assembly
5 Side Roller Assembly
6 Gear
7 Wheel Assembly
8 Tenon Block
9 Front Cover
POWER BOGIE REAR ASSEMBLY
1 Rear Frame
2 Rail Follower Assembly
3 Drive Motor Pinion
4 Support Wheel
5 Backstop
6 Gear
7 Rear Hub Assembly
8 Gear
