ON
TIME
LOCKOUT
TIME
ESCAPE RESET
ON
OFF
GLOBAL
ENABLE
STATION
ENABLE
ACTUATOR
MODE
GLOBAL
DISABLE
STATION
DISABLE
VALVE
MODE
STATUS
CLEAR
ENTRY
ENTER
1 2 3
4 5 6
7 8 9
0
LINK 9VDC
MASTER-TROL PROGRAMMER - CPT
R
Manufacturers of Stainless Steel Plumbing Fixtures
CITY OF INDUSTRY, CALIFORNIA
Facility Name:
Facility Location:
Station Location
1
2
3
4
5
6
7
8
9
10
11
12
Station Location
Link #:
Controller Address #:
Date Shipped:
Acorn SO #:
For assistance in installation or maintenance, call:
Acorn Technical Assistance 1-800-743-8259
MASTER-TROL CONTROLLER
DAUGHTERBOARD VER.
PT. NO. 0715-002-001
MASTER-TROL
ELECTRONIC
VALVE
CONTROLLER
ACORN ENGINEERING COMPANY
15125 PROCTOR AVE PO BOX 3527
INDUSTRY, CA. 91744
24 VAC
POWER
STATIONS
ADDRESS
FL AS HING
IN U SE
VE RS A- LI NK
IN OU TAD D VAL UES
OPEN
CLOSE
RED INDICATES PUSHBUTTON ACTUATION - GREEN INDICATES VALVE IS OPEN - YELLOW INDICATES BOTH
1 2 3 4 5
1 2 3 4 5 6 7 8 9 10 11 12

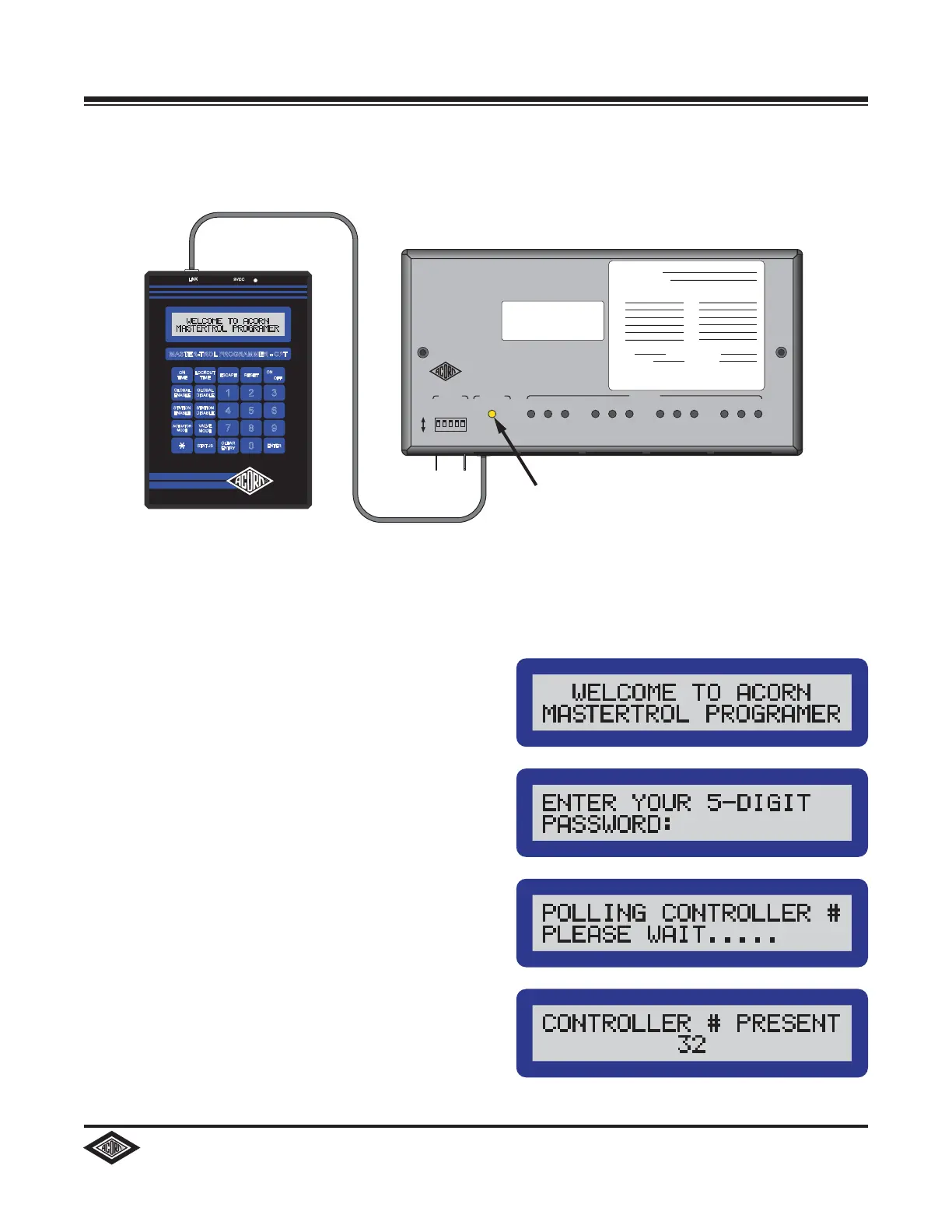

5. Make sure the controller is powered before turning on the Handheld Programmer.
6. Press the “ON/OFF” button to turn on the Handheld Programmer.
Once the Handheld Programmer is powered, the
Welcome screen will be displayed briefly.
Using the number pad, you will then need to
enter the 5-Digit Password, then press “ENTER”.
The Polling screen will be displayed briefly.
While polling the Handheld Programmer will
display the addresses of all the connected
controllers.
Power LED
Technical Support: (800) 743-8259
www.acorneng.com
6
