10
Small Fuses
F2,F3,F4 (12 amp)
F2 - Convection Motor
F3 - Magnetron # 1
F4 - Magnetron # 2
Large Fuses
F1,F5,F6 (25 amp)
*F1 - Main Fuse
F5 - Convection Heater
F6 - Radiant Heater
Triac (TR3)
Magnetron # 1
High Voltage Transformers
Magnetron TCO’s
Temp Sensor
(RTD Convection)
Switch
(Primary)
Triac (TR2)
Triac (TR1)
(Magnetron # 1)

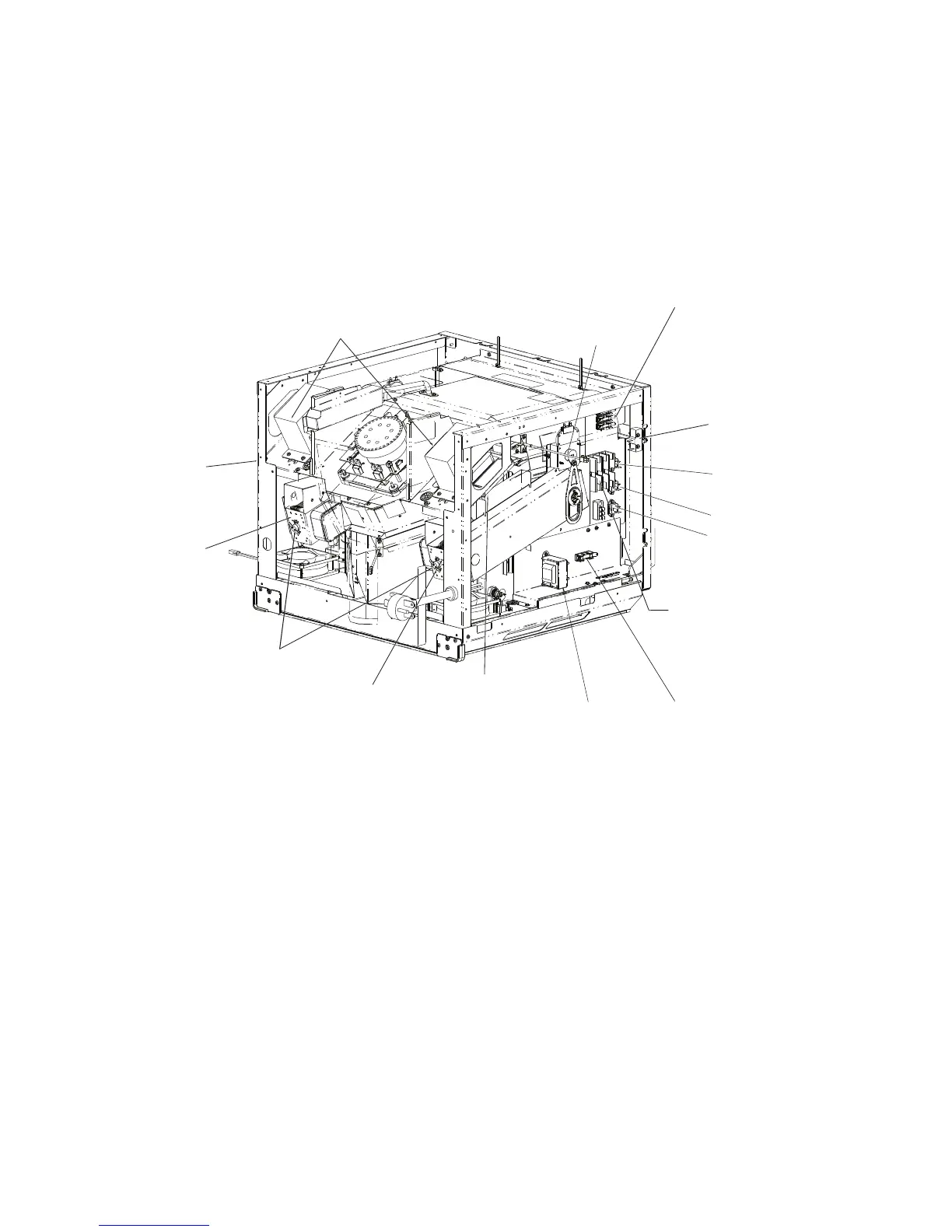

OVEN CONSTRUCTION
HV Transformers
Magnetrons
Fuses
Sensor
Triac’s
Magnetron TCO’s
Capacitor / Diodes
Capacitor
Diode
(Right Side)
Capacitor
Diode
(Left Side)
Magnetron # 2
(Magnetron # 2)
(Convection Heater)
*Note: If Main Fuse (F1) is blown
replace Relay Monitor
Board and Power Relay.
Control
Transformer
(AXP20QT Only)
Fuse (2.5A)
(AXP20QT Only)
OVEN CONSTRUCTION-
