ACP AXP20 - Internal Components and Switches

9
Limiter
*Power Relay
Triac
(TR4) -Radiant
Heater
Convection
Motor
Main Board
*Relay Monitor
Board
Cooling Fans
Thermocouple
Temp Sensor
(RTD Radiant)
Power Supply Board
(24 VDC)

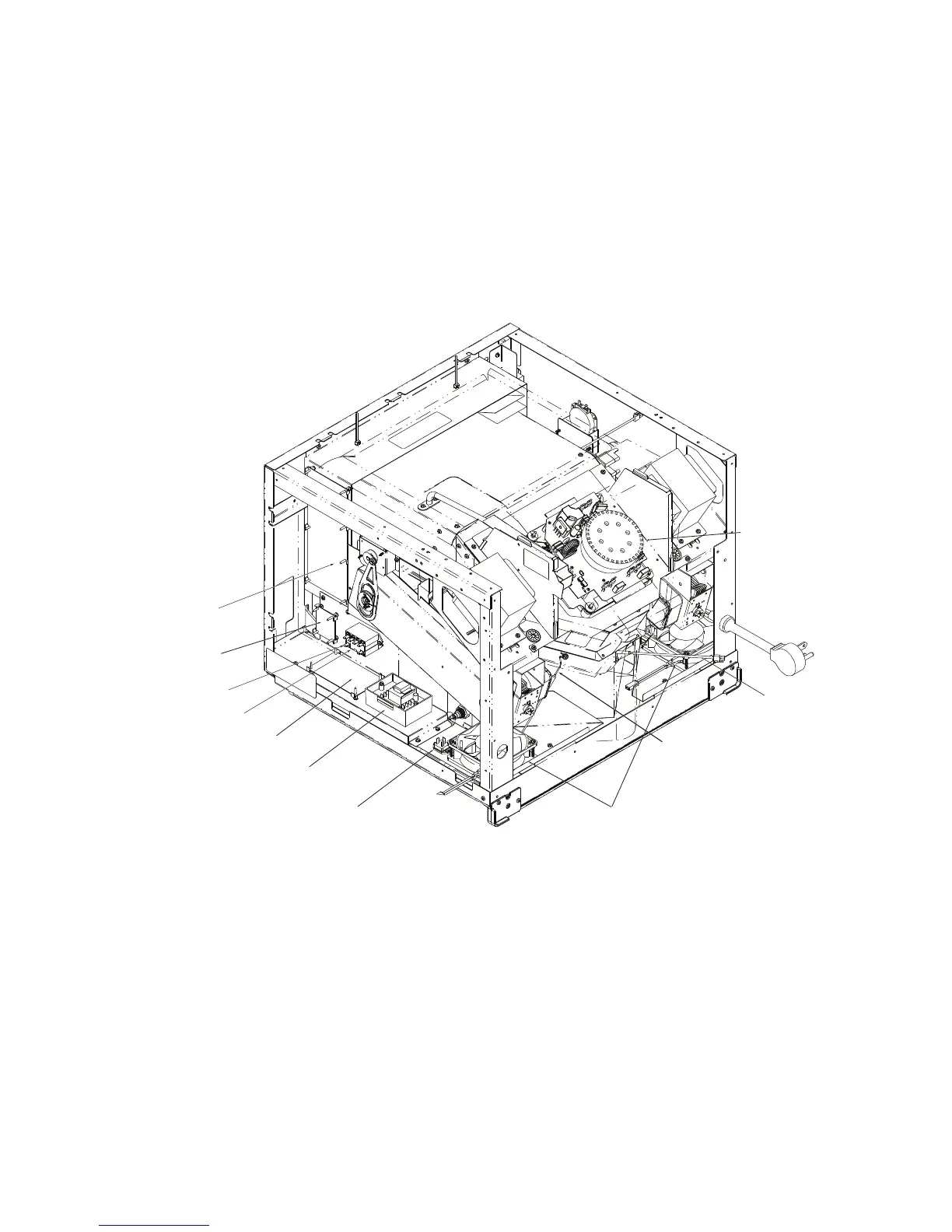

OVEN CONSTRUCTION
Circuit Boards
Power Relay
Limiter
Triac
Thermocouple
Temp Sensor (RTD)
Cooling Fans
Convection Motor
Snubber
*Note: If Main Fuse (F1) is blown
replace Relay Monitor Board
and Power Relay.
OVEN CONSTRUCTION-
