Y1-03-0138R 10

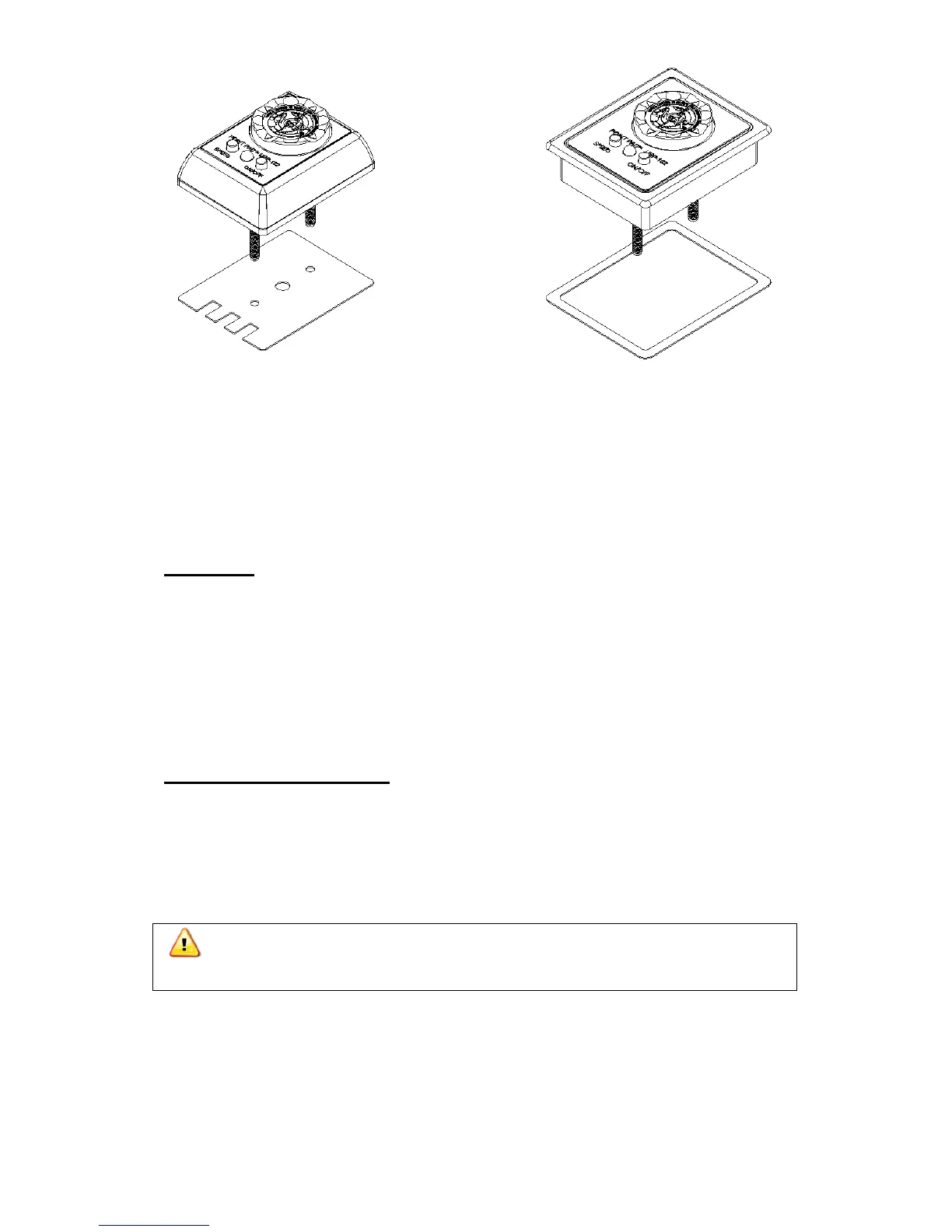

Figure 6 - URP-102 Point Pad™
Surface Mount Case with gasket and Flush Mount Case with
gasket
SECTION 6 - URC-102 MASTER CONTROLLER
Mounting
The Master Controller can be mounted in any position near the
Searchlight that is protected from the weather. Check in advance that
the coax cable from the Point Pad™ and the wiring harness from the
Searchlight can be routed to this location. Mount the Master controller
with the wires and coax facing down. Use an appropriate fastener for
your mounting location. Use a sealant in fastener holes to prevent
moisture intrusion.
General Wiring Scheme
The RCL-100 has a unique wiring scheme. Special attention must be
paid to the following chart. The Master Controller is supplied with an
in-line fuse-holder on the Orange power lead. Use only 15 amp fuses
in this fuse-holder. See Figure 9 for the Master Controller wiring
diagram.
WARNING: Failure to follow this arrangement may damage
components.
