APPENDIX B - USER REPLACEABLE PARTS
ACR/RCL-100D

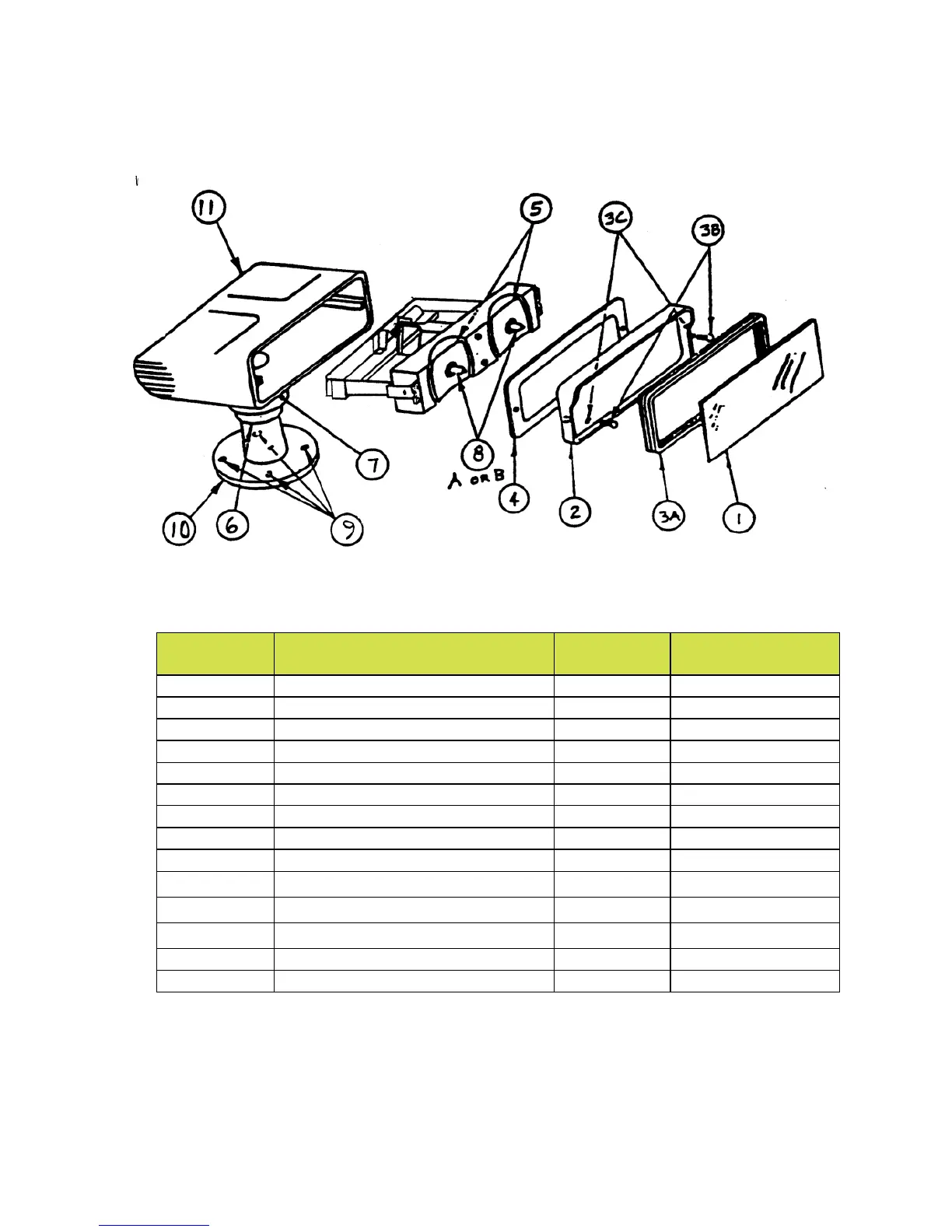

Figure 9 - Searchlight User Replaceable Parts
Item
Number
Description
Quantity
ACR Part
Number
1
Front Glass
1
HRMK 1300
2
Front Frame
1
HRMK 2101
3A
Window Weather Strip
1
HRMK 1201
3B
Screw M4x18
2
HRMK 1600
3C
Washer M408
2
HRMK 9301
4
Gasket of front frame
1
HRMK 2200
5
10 cm reflector
2
HRMK 1301
6
Protection Cover
1
HRMK 2102
7
O-Ring #594
1
HRMK 2202
8A
55W quartz halogen bulb (12V)
2
6001
8B
55W quartz halogen bulb (24V)
2
6003
9
Shoulder Washer
4
A1-05-0660-24
10
Base Housing
1
HRMK 2103
11
Head Housing
1
HRMK 2100
