Y1-03-0138R 14
Master
RCL-100
Point Pad
Spotlight
Yellow Lamp Power
Green Lamp Ground
Red Spot Up
White Spot Down
Brown Spot Left
Black Spot Right
Other RCL-100 Point Pads
75 ohm TV Coaxial Cable
75 ohm TV Coaxial Cable
“T” Connector or Optional
75 Ohm Splitter for Multiple
RCL-100 Point Pads
Ground
Blue Orange
Note: Wiring must be in accordance with this diagram. Improper wiring will damage components.
12 VDC or
24 VDC
Master Controller
in-line 15 amp fuse
Power Source Fuse

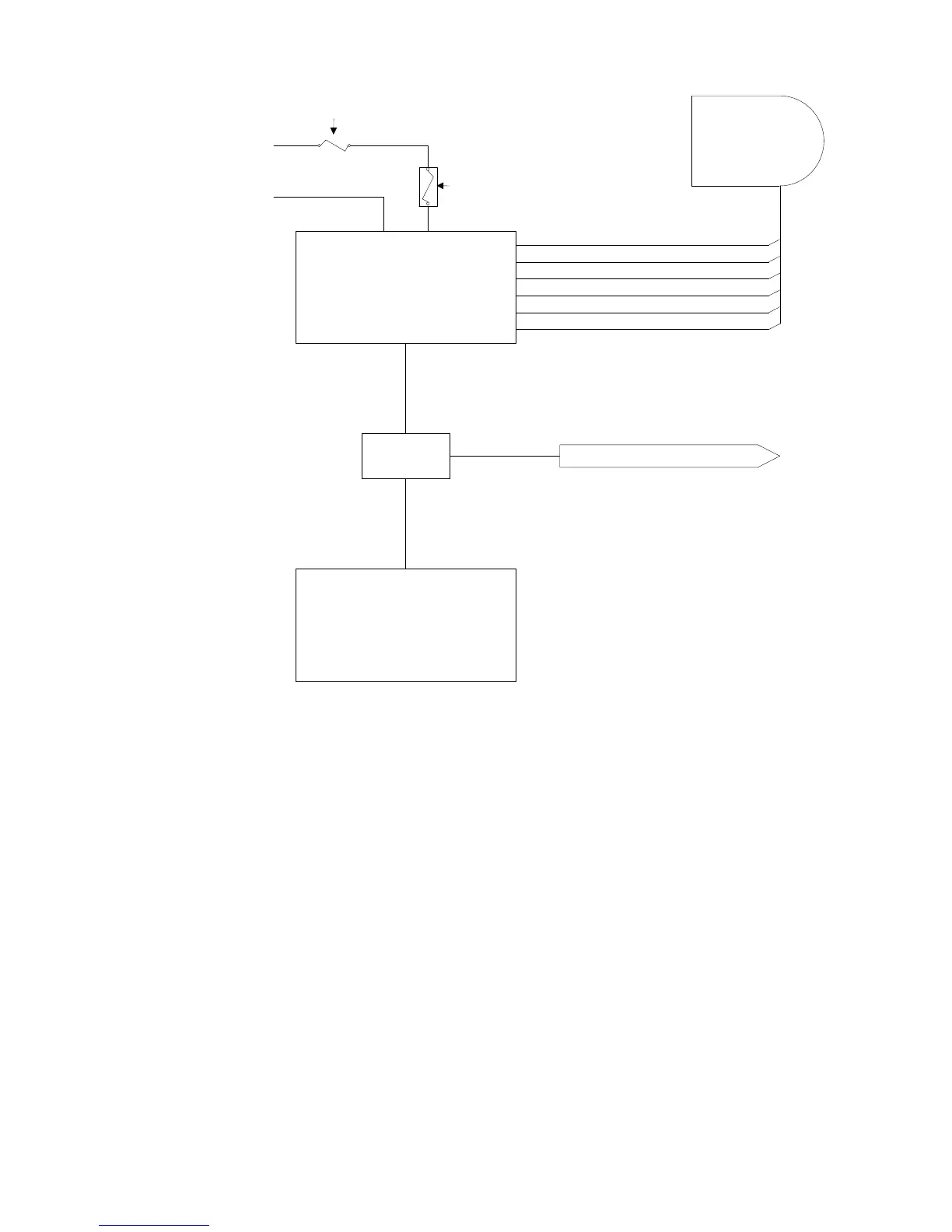

Figure 7 - URC-102 Master Controller Wiring Diagram
