Acrel ACR10R Series User Manual

`
- 5 -
5
．

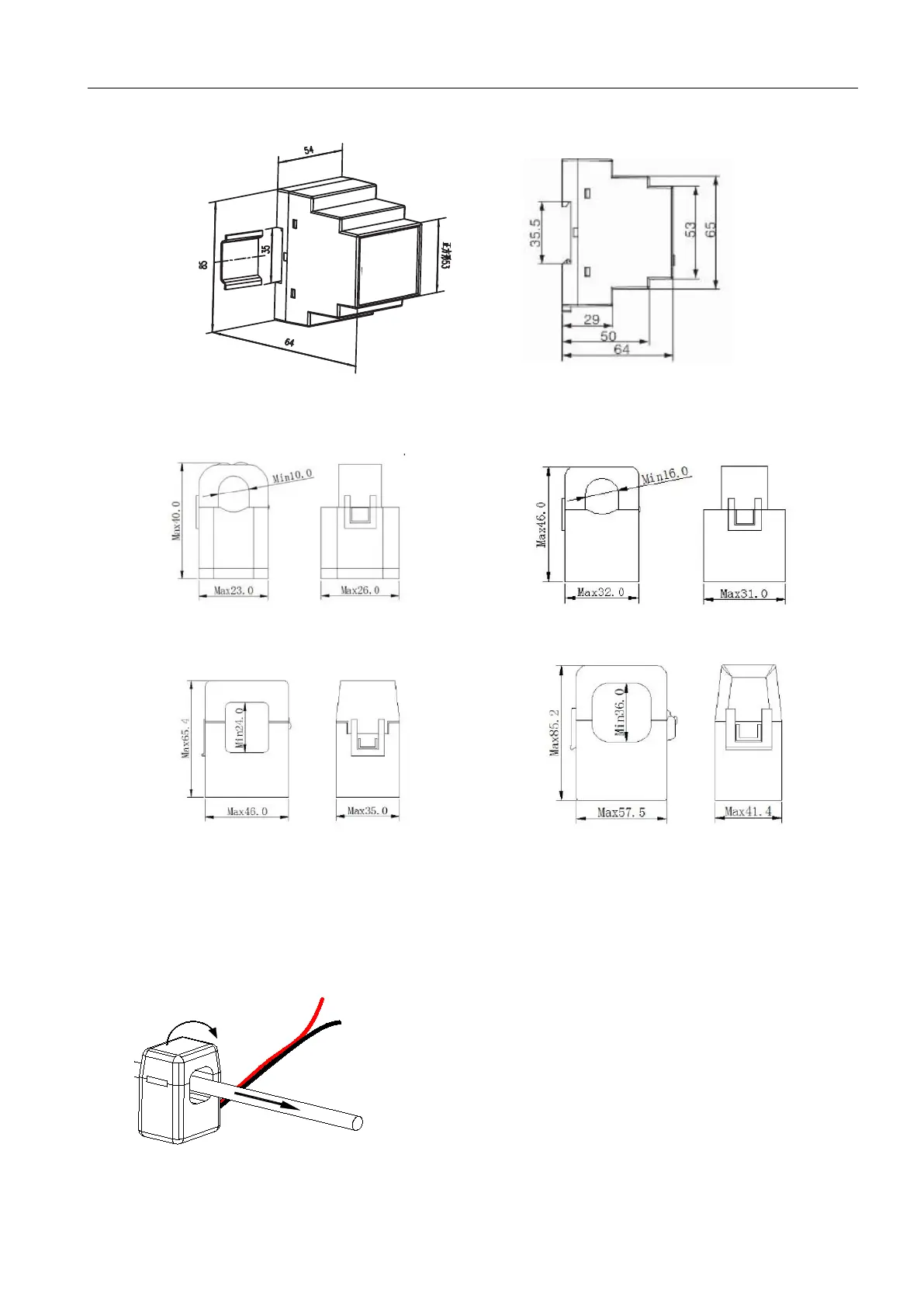

Installation
5.1 Shape and installing size （unit：mm）
5.2 Size of open type transformer（unit：mm）
Φ10mm Φ16mm
Φ24mm Φ36mm
5.3 installation
Instrument installation method：DIN 35mm standard guide rail installation
Direction of
current
Negative
pole（ black）
Positive
pole（ white）
Clos e in th e dir ec tio n of th e
arro w

Acrel ACR10R Series Specifications

General

Model	ACR10R series
Communication	RS485, Modbus-RTU
Protection	IP20
Display	LCD
Power Supply	AC/DC
Rated Current	AC 1A, AC 5A
Frequency	45Hz - 65Hz
Accuracy class	0.5
Power consumption	<5VA
Operating temperature	+55°C
Storage temperature	-25℃~+70℃
Safety	IEC/EN 61010-1
EMC	IEC 61326-1
Relative Humidity	≤95% (non-condensing)
Voltage overload	1.2x rated voltage continuously, 2x rated voltage for 1 second
