28

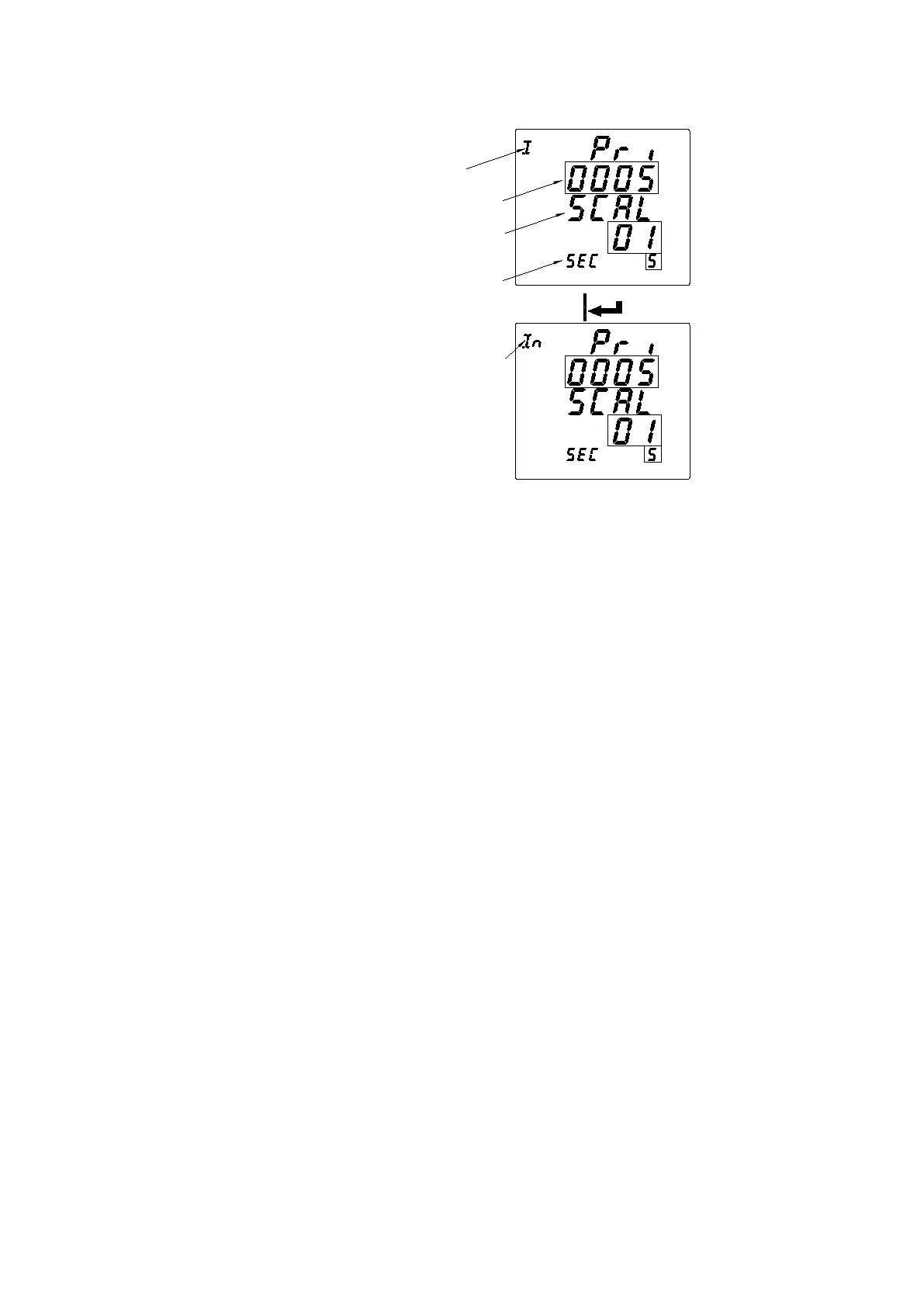

Rated value of primary side
Ratio of primary side
Rated value of secondary side
Current
Neutral current
7.5.4 Voltage ratio setting refers to current ratio setting
For example: If the current input is connected by external CT and the rated value is 40A/5A, set the rated value of primary side
current to 40A, the scale value to 1, and the rated value of secondary current to 5A. Neutral current setting is the same. If the voltage
input is connected by external PT and the rated value is: 6000V/400V, then set the rated value of the primary voltage to 6000V, the
scale value to 1, and the rated value of secondary voltage to 400V.
7.5.5 Pulse constant setting (Only APM801 can be set)
When the pulse constant is set to 0, the default is 8000 when the rated value of the secondary side current is 1A, and the default
is 4000 when the rated value of the secondary side current is 5A. When the pulse constant is set to non-zero, the actual pulse constant
is the setted value*100. For example, if the set value is 50, the actual pulse constant is 5000.
Note:
①
The primary value must be greater than or equal to the secondary value.
② Only the APM801 can set the pulse constant.
7.5.6 Alarm Settings
1. Press ◀▶ until ALM is selected and and press the Enter key.
2. Press
◀▶
key to select the alarm group (a total of two groups of alarms) and press the Enter key.
3. Press the ◀▶ keys to select the alarm category (Refer to Table 2 of 7.4 Alarm View) and press the Enter key.
4. Under the alarm category, select the alarm subclass (Refer to Table 2 of 7.4 Alarm View) and press Enter key.
5. Enable selected alarm type（ENABLE or disable selected alarm type（DISABLE）and press the enter key.
6. Input the value of alarm action (primary value). For some parameters, you can set the negative value. Press the
◀▶
key at the same
time to switch the positive and negative signs and press the enter key.
7. Enter the delay time of alarm action and press the enter key.
To Next Page
