Acrel APM Series User Manual

47

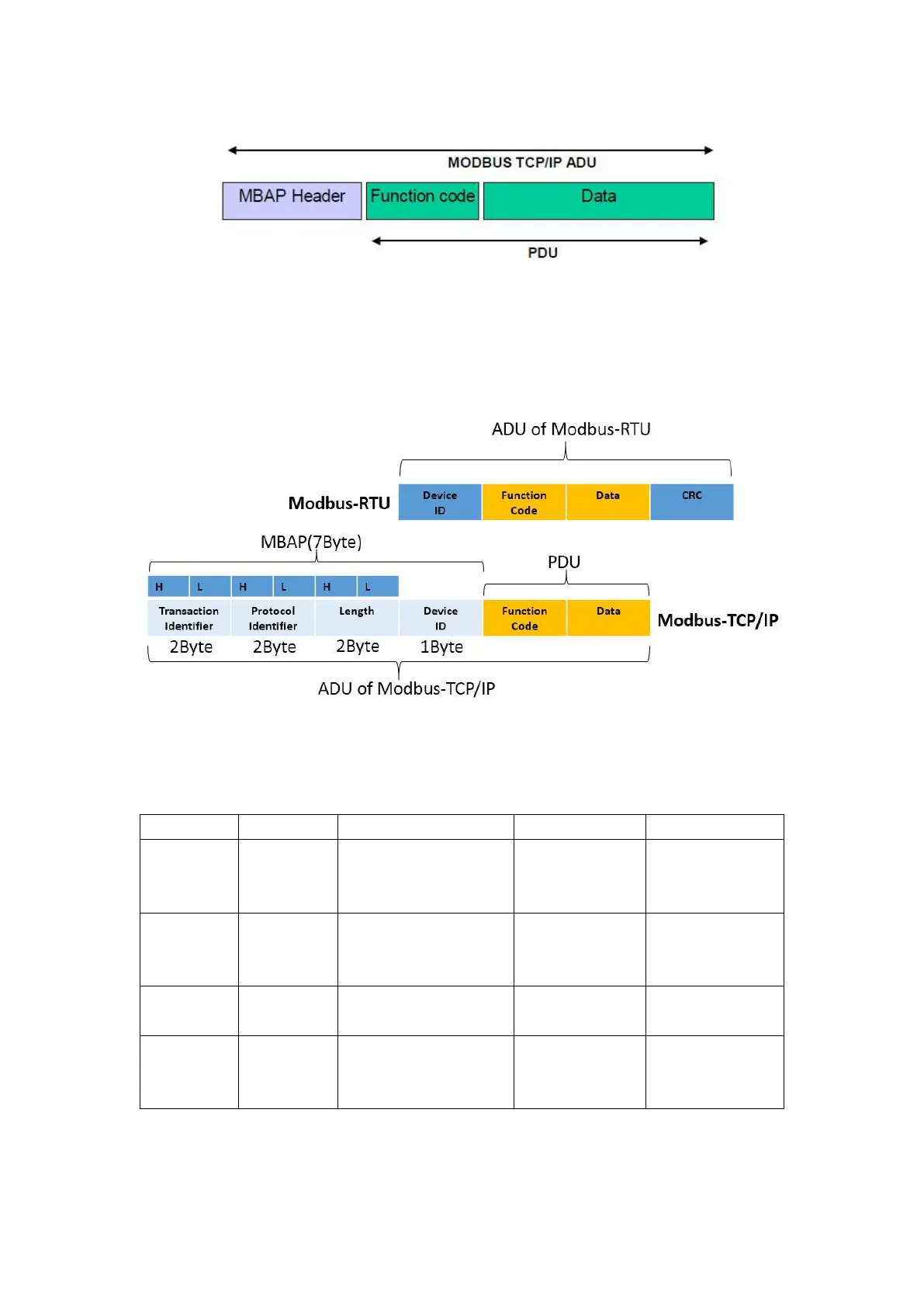

Figure 3:MODBUS request/response over TCP/IP
A dedicated header is used on TCP/IP to identify the MODBUS Application Data Unit. It is
called the MBAP header (MODBUS Application Protocol header)
Figure 4:The diffrences of modbus frame between Modbus TCP/IP and Modbus RTU
3. MBAP Header descriptio
The MBAP Header contains the following fields:
Fields
Length
Description
Client
Server
Transaction
Identifier
2Byte
Identification of a
MODBUS Request /
Response transaction
Initialized by the
Client
Recopied by the
server from the
received request
Protocol
Identifier
2Byte
0x00:MODBUS protocol
Initialized by the
client
Recopied by the
server from the
received request
Length
2Byte
Number of following bytes
Initialized by the
client ( request)
Initialized by the
server (Response)
Device ID
1Byte
Identification of a remote
slave connected on a serial
line or on other buses
Initialized by the
client
Recopied by the
server from the
received request
The header is 7 bytes long:
Transaction Identifier:It is used for transaction pairing, the MODBUS server copies in
the response the transaction identifier of the request.
