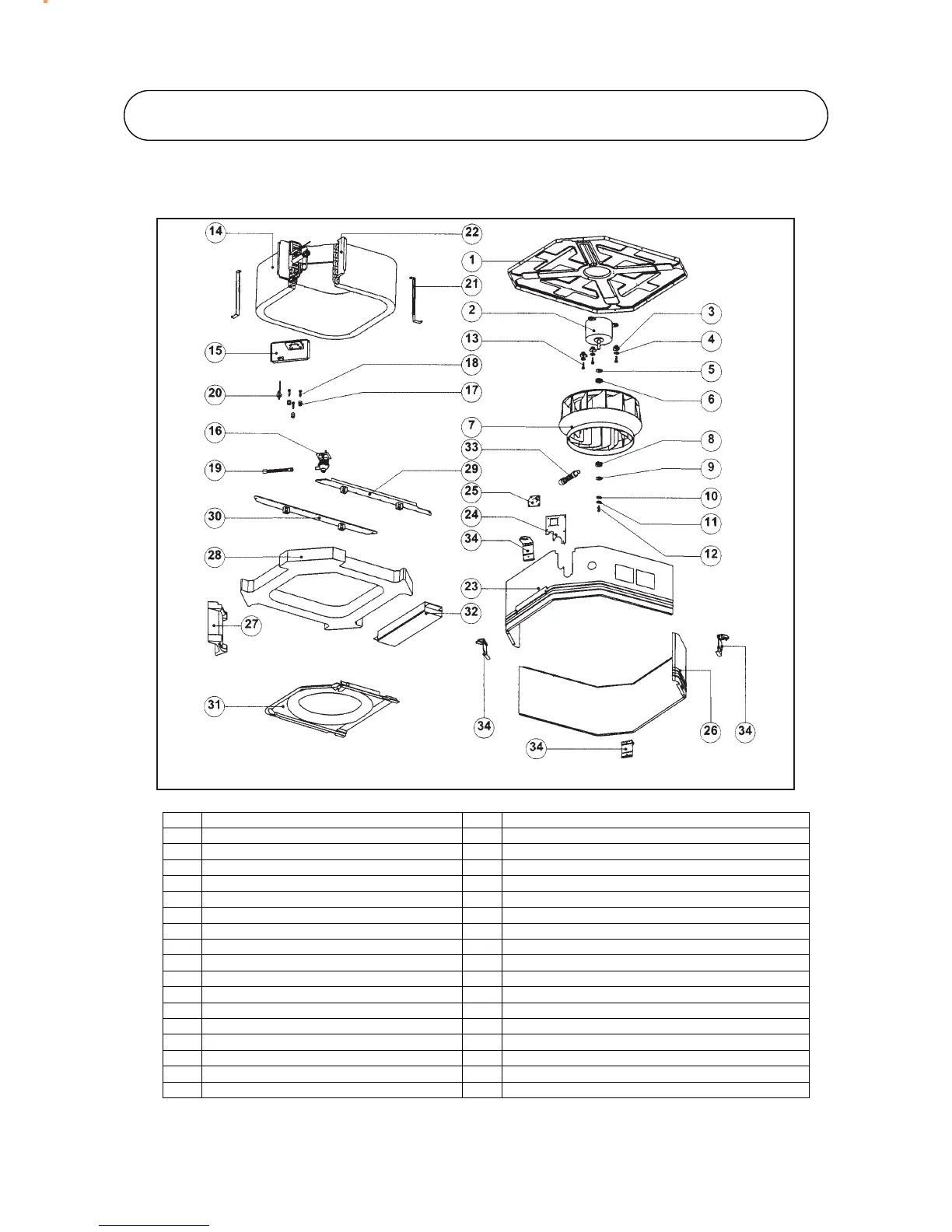

15. EXPLODED VIEW AND PARTS LIST
UNIT - ACK - A/AR
NO. PARTS DESCRIPTION NO. PARTS DESCRIPTION
1 BASE PAN 18 HEXAGON BOLT
2 FAN MOTOR 19 DRAIN HOSE
3 FAN MOTOR BUSH 20 LEVEL SWITCH
4 PLAIN WASHER 21 COIL SUPPORT
5 FAN MOTOR WASHER 22 PARTITION
6 BUTTON COUPLING 23 SIDE PANEL FRONT
7 TURBO FAN 24 VALVE PLATE
8 TOP COUPLING 25 DRAIN CONNECTOR
9 FLAT WASHER 26 SIDE PANEL BACK
10 PLAIN WASHER 27 AIR GUIDE
11 SPRING WASHER 28 DRAIN PAN
12 HEXAGON BOLT 29 FIX BRACKET FRONT
13 HEXAGON BOLT 30 FIX BRACKET BACK
14 EVAPORATOR COIL 31 FAN COVER
15 DRAIN PUMP BRACKET 32 TERMINAL BOX
16 DRAIN PUMP 33 DRAIN PIPE
17 DRAIN PUMP BUSH 34 HANGER BRACKET A,B & C
10
