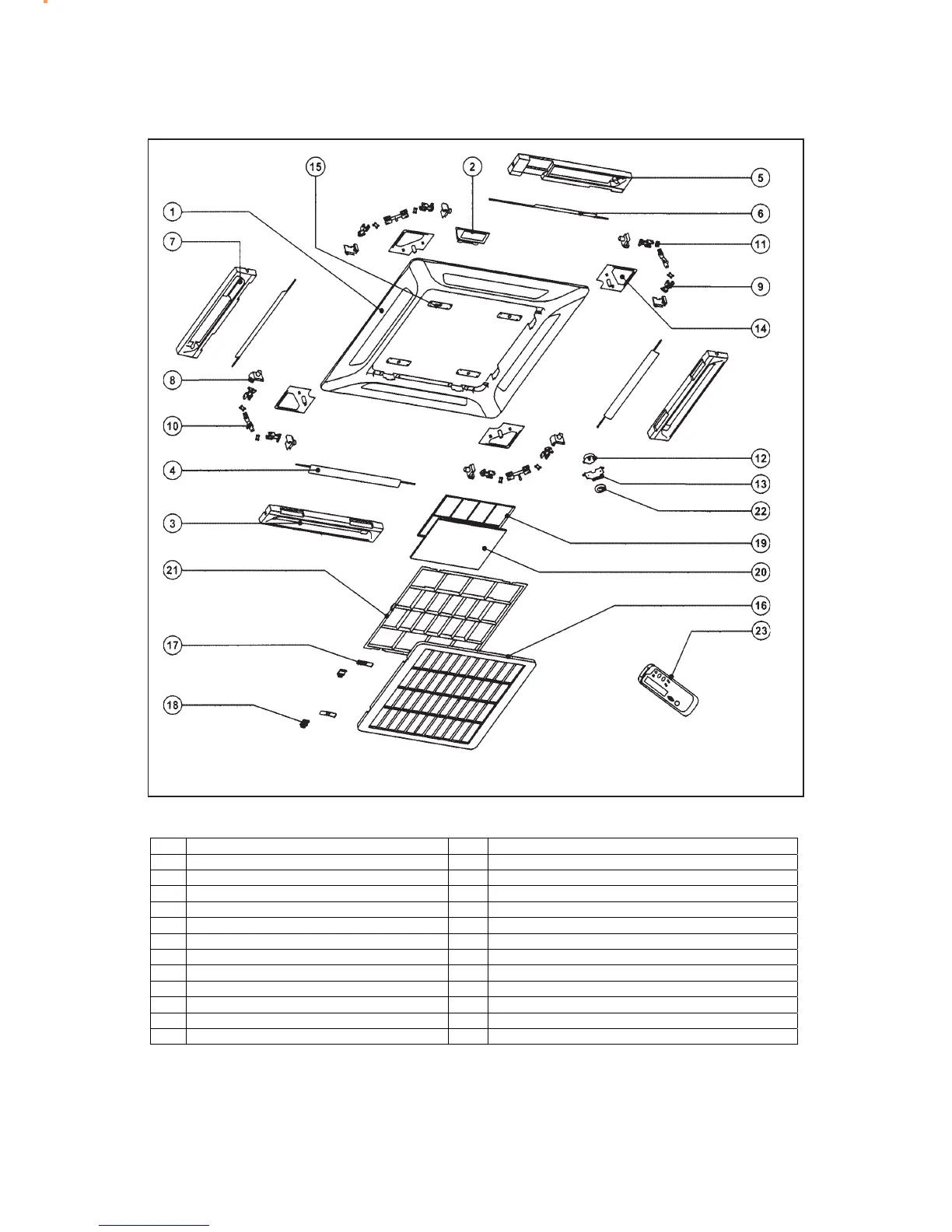

PANEL ( WIRELESS REMOTE CONTROL ) - ACK – A/AR
NO PART DESCRIPTION NO. PART DESCRITION
1 FRONT PANEL 13 SWING MOTOR BRACKET
2 RECEIVER BRACKET 14 PANEL COVER
3 DISCHARGE HOUSING A 15 FIX PLATE
4 METAL LOUVER A 16 AIR INTAKE GRILLE
5 DISCHARGE HOUSING B 17 GRILLE LOCK
6 METAL LOUVER B 18 GRILLE LOCK BRACKET
7 DISCHARGE HOUSING D 19 IONIZER FILTER FRAME
8 LOUVER BRACKET 20 IONIZER FILTER
9 CRANK SHARF 21 AIR FILTER
10 CRANK CONNECTOR 22 AIR SWING CAP
11 CRANK CROSS 23 REMOTE CONTROL
12 SWING MOTOR
11
To Next Page
