Acson A5CK20A User Manual

MODEL : A5CK 10C/CR
A5CK 15C/CR
A5CK 20C/CR

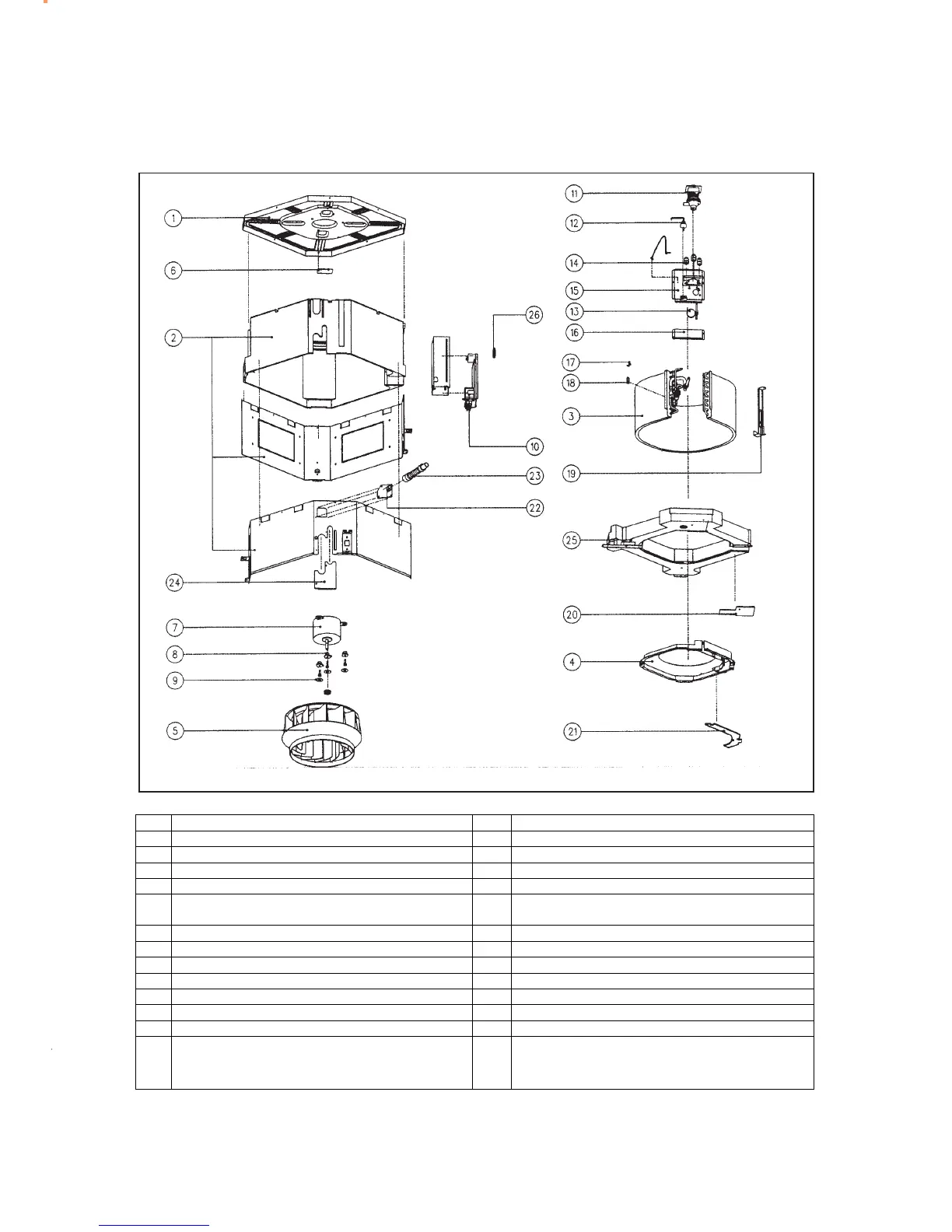

NO PART DESCRIPTION NO. PART DESCRITION
1 ASSY. BASE 14 BUSH, DRAIN PUMP
2 ASSY. CASING 15 ASSY. DRAIN PUMP SUPPORT BUCKET
3 ASSY. COIL 16 ASSY., ENDPLATE SUPPORT
4 COVER, FAN 17 CLIP, COIL SENSOR (6mm)
5
BLOWER WHEEL, TURBO FAN FX330 TU
YAMAHA
18 TUBE, COIL SENSOR
6 PLATE, WIRE 19 BRACKET, COIL
7 MOTOR, ACK20C-501 HONG LU 20 COVER, TERMINAL
8 BUSH, FAN MOTOR 21 COVER, WIRE
9 BUSH, FAN MOTOR RING 22 CONNECTOR, DRAIN CK
10 ASSY., CONTROL BOX 23 HOSE, DRAIN CK
11 DRAIN PUMP PJV-0732 24 ASSY., COVER VALVE
12 LEVEL SWITCH/ FLOAT SWITCH FS-06122A 25 ASSY., DRAIN PAN
13
BUSH, WIRE NRID22XOD 36XT10.0-MODEL
CE/SB
26 BUSH, WIRE
13
