Acson A5CK20A User Manual

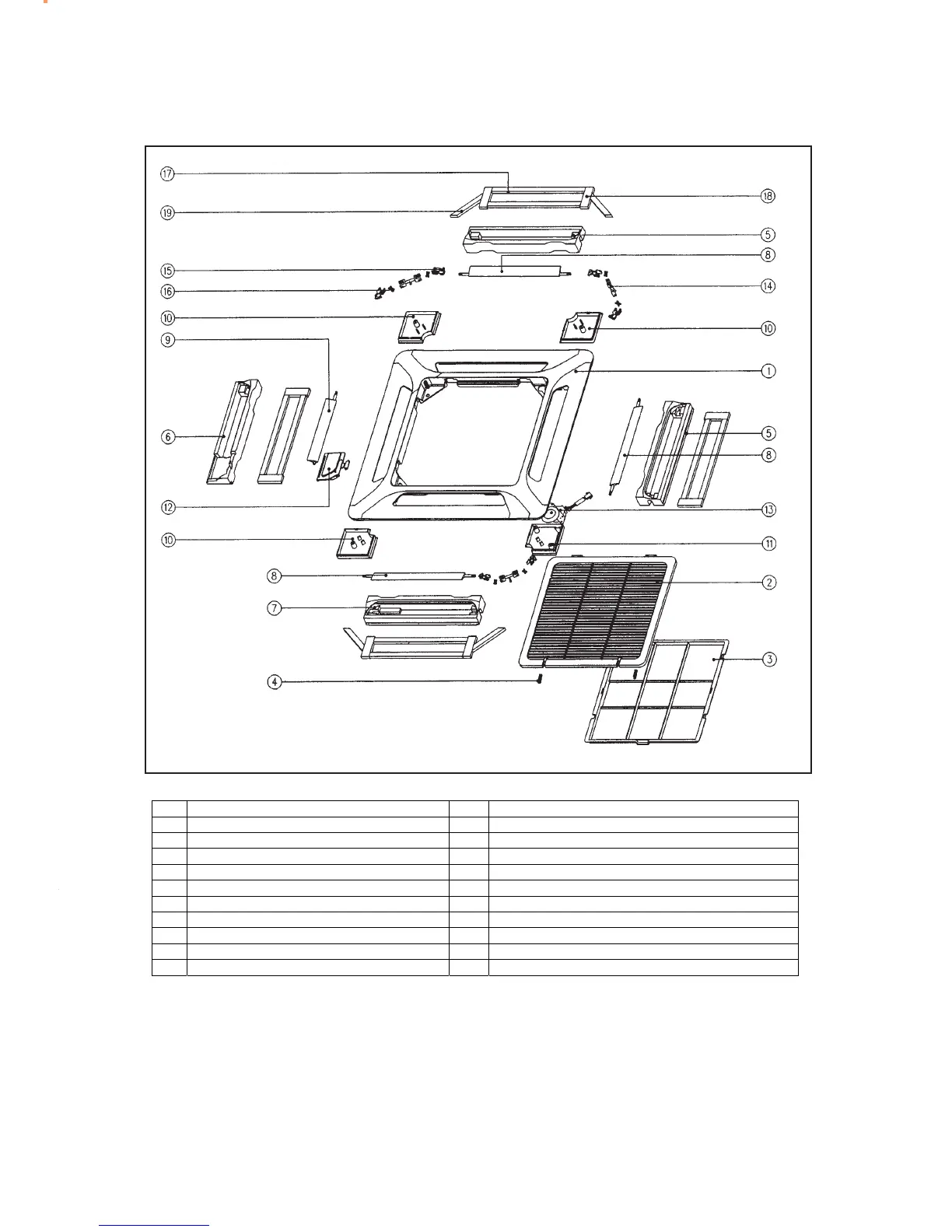

PANEL : A5CK 10/15/20C/CR
NO PART DESCRIPTION NO. PART DESCRITION
1 FRAME 11 LINKAGE, COVER MOTOR
2 INTAKE GRILLE 12 ASSY, BRACKET RECEIVER (LED/SLM)
3 FILTER 13 AIR SWING MOTOR ASSY
4 GRILLE LOCK 14 CRANK CONNECTOR
5 DISCHARGE, FOAM 15 LOUVER HOLDER
6 DISCHARGE, FOAM LED 16 CRANK CROSS
7 DISCHARGE, FOAM SHORT 17 INSULATION LONG
8 LOUVER 18 INSULATION SHORT
9 LED LOUVER 19 INSULATION CORNER
10 LINKAGE, COVER
14

Acson A5CK20A Specifications

General

Brand	Acson
Model	A5CK20A
Category	Air Conditioner
Language	English
