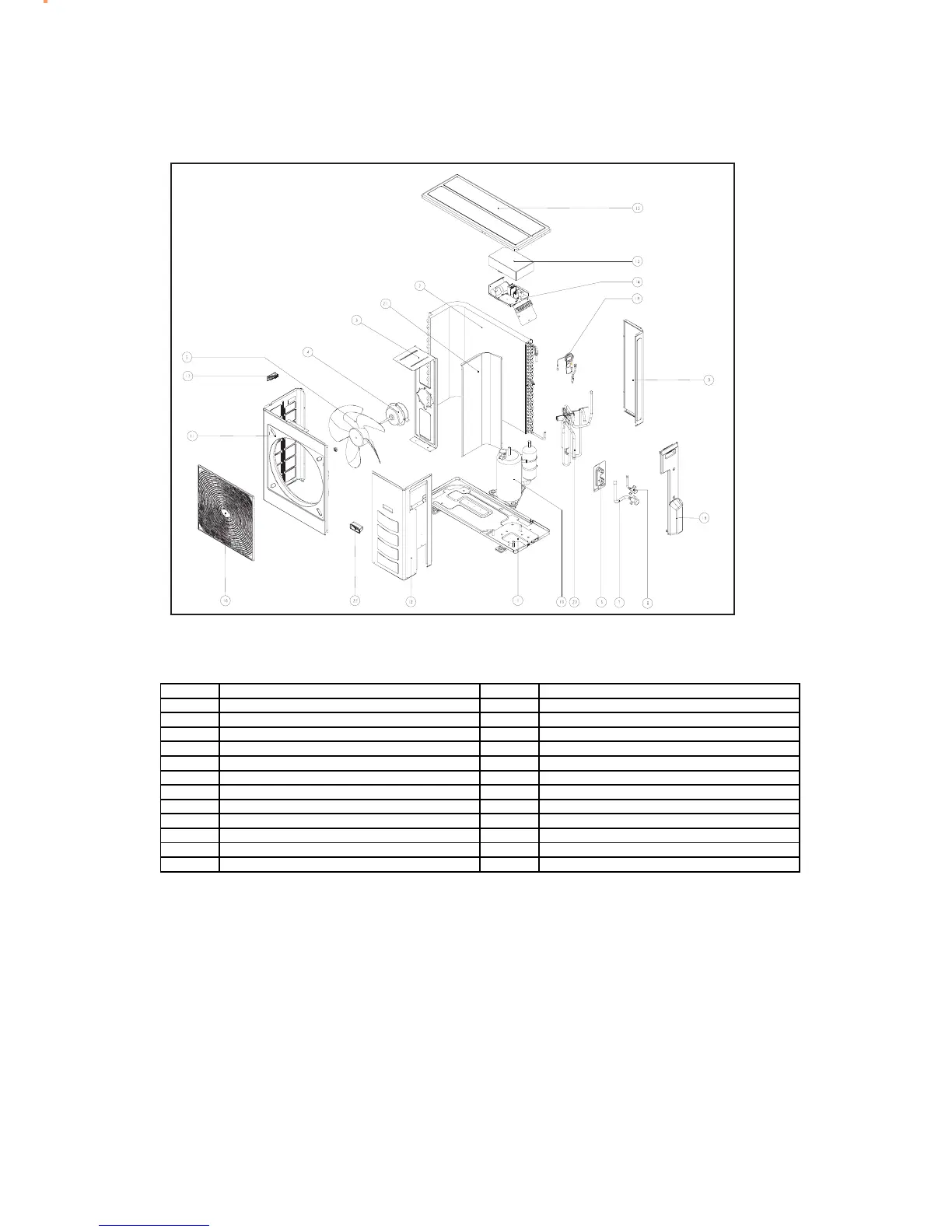

MODEL: A5LC 25/28CR
No Description No Description
1 Assy, Base Pan 12 Service Panel
2 Assy, Outdoor Coil 13 Terminal Cover Panel
3 Motor Bracket 14 Assy, Control Panel
4 Fan Motor 15 Top Panel
5 Fan Blade 16 Assy, Front Grille
6 Valve Bracket 17 Plastic Handle, Side
7 Assy, Flare Valve 3 Ways 18 Assy, Valve Cover
8 Assy, Flare Valve 2 Ways (ALC/A5LC25CR) 19 Assy, Cap Tube
Assy, Flare Valve 3 Ways (ALC/A5LC28CR) 20 Assy, 4 Way Valve
9 Back Panel, Right 21 Partition
10 Compressor 22 Plastic Handle, Front
11 Front Panel, Left
To Next Page
