ASCON Service Guide Book
34

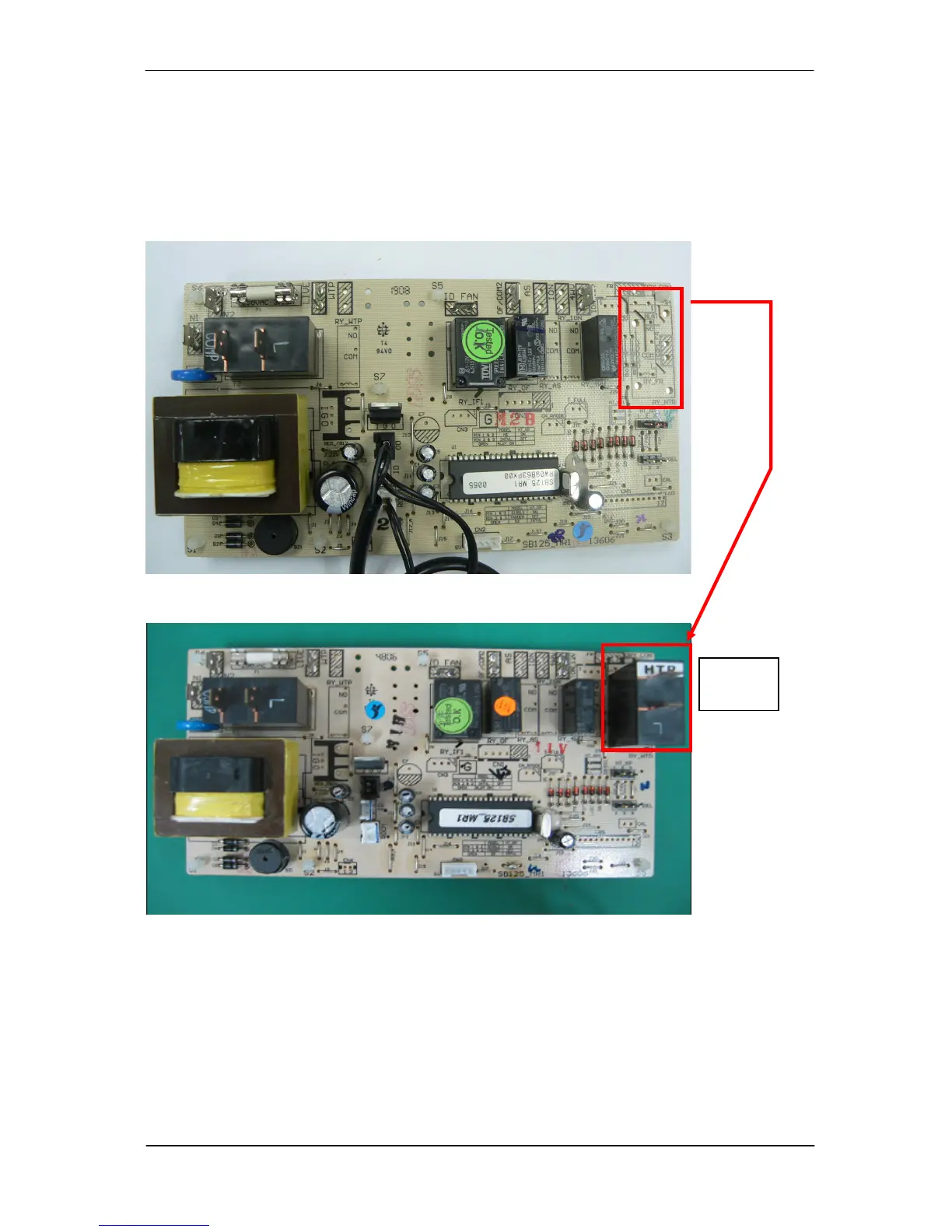

To convert SB125 heatpum
p PCB to auxiliary heater application,
y
ou need onl
y
one heater rela
y as
shown below:
1.
Place the JM rel
ay on the RY_HTR location
2.
Solder all the re
lay
pins.
SB125 Heatpump without
A
uxiliar
y
heater
SB125 Heatpump with Aux
iliary Heater
Re
Relay
240V/ 20A
34
36
Table of Contents
Default Chapter
2
Table of Contents
2
1 Model Name
3
Product Name Description
3
Nomenclature
4
Outdoor Unit
5
2 Conversion Table 2.1 Conversion Table
6
3 0 Product Mainboard Vs. Handset Matrix
7
Product Mainboard Vs. Handset Matrix
7
4 0 Controller Development History
9
Controller Development History
9
5 Handset Operating Guide
11
Operation Guide
13
G12
15
G18
17
Gs02
19
Apj2
22
Slm3
25
Sequential LCD
27
Netware 3
29
6 Controller Configuration
31
Auto Random Restart
31
Hot Keep Selection
32
Auxiliary Heater Conversion
34
Multi Split Conversion
37
Sequential Controller
38
Chilled Water Fan Coil Unit - W1V
43
Chilled Water Fan Coil Unit - W2.0
44
U1.5 L208A Conversion
45
WMF U1.4 to L2EF Conversion
46
7 Service Diagnosis
47
Self Diagnosis Table
47
General Check
81
General Troubleshooting Guide
82
Appendix Resistance – Temperature Characteristic
89
Appendix
89
Resistance - Temperature Characteristic
89
