ACTpro 120e PSU Operating and Installation Manual
ACTpro 120e PSU Installation Guide
The ACTpro 120e is a single door station with an integrated 12V DC 2A power supply. It
expands any of the existing ACTpro controllers (ACTpro 4000, 4200, 1520e, 1500e) by
one door.

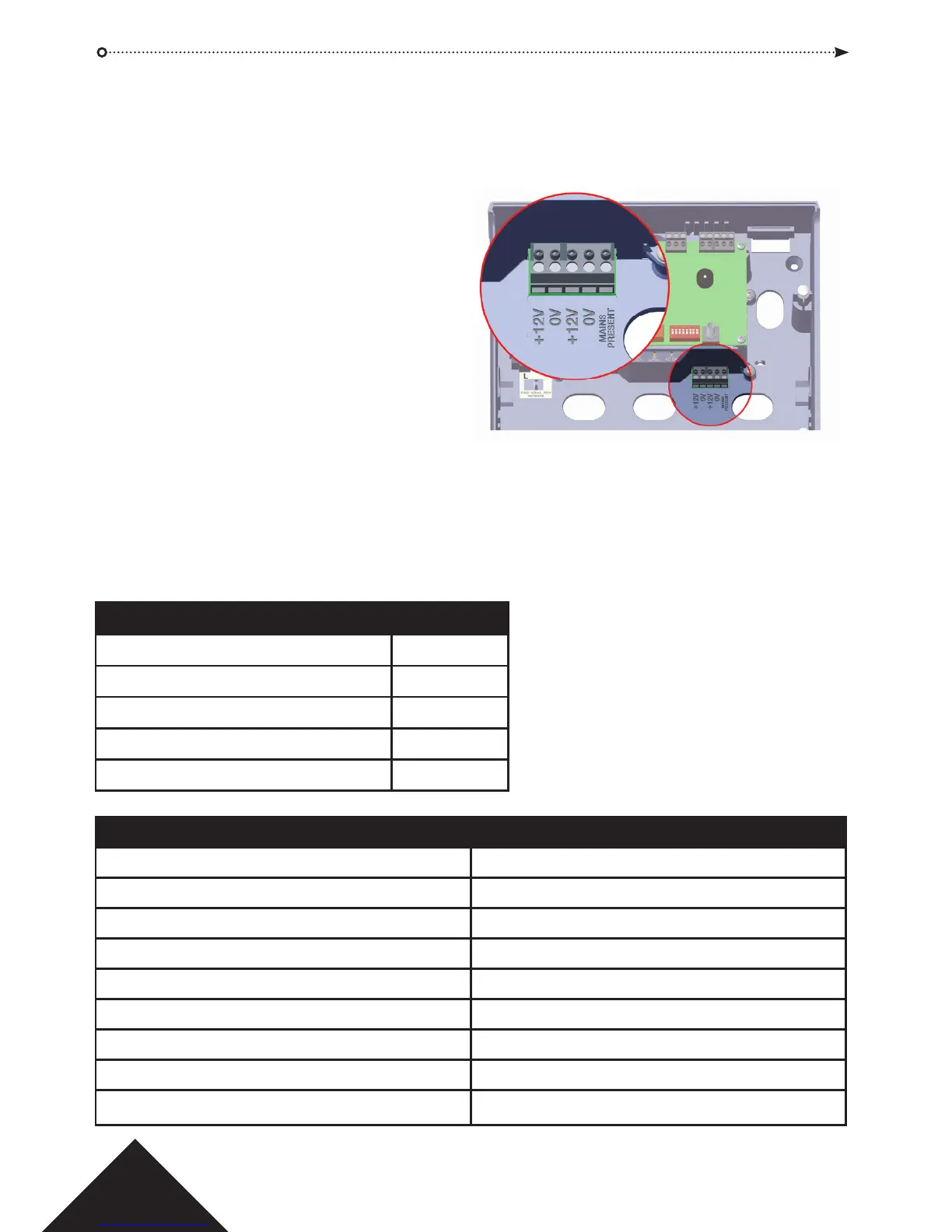

The 2A output current is used to power
the door station and supply the battery
recharge current. 500mA is reserved for
battery recharge and to power the door
station. Therefore 1.5A is available to power
readers and the lock.
See “Installation Instructions” on page 6.
Example: Power budget of a typical single door read in/out installation.
Total Current Available 2000mA
ACT Door Station and Battery Recharge 500mA
ACT Reader X 2 200mA
Typical Mag Lock 800mA
Total Consumption 1500mA
Spare Capacity 500mA
Electrical Speci cation
Input Voltage 230VAC +/- 10%
Frequency 47-53Hz
Input Fuse 625mA 250V anti-surge fuse
Output Voltage 13.65V (+/-5%)
Max Load 2A @ 25°C
Electronic Output Fuse Yes
Battery Current ~0.5A for a battery discharged to ~10V.
Battery Protections Deep Discharge/Over Charge/Reverse Polarity
Operating Temperature -10°C to +50°C
1
