Wiring Information and Procedures Installing the System
Wiring Instructions for System Ground
Before you begin: Before using the following procedure, check to make sure that the unit
and Main Distribution Frame (MDF) are properly grounded. If not properly grounded, use a
method similar to the one below to connect equipment rack and MDF to the facility ground
source.
Procedure: To ground the ML600, perform according to the following figure:
!
Caution: Make sure there are no exposed wires.

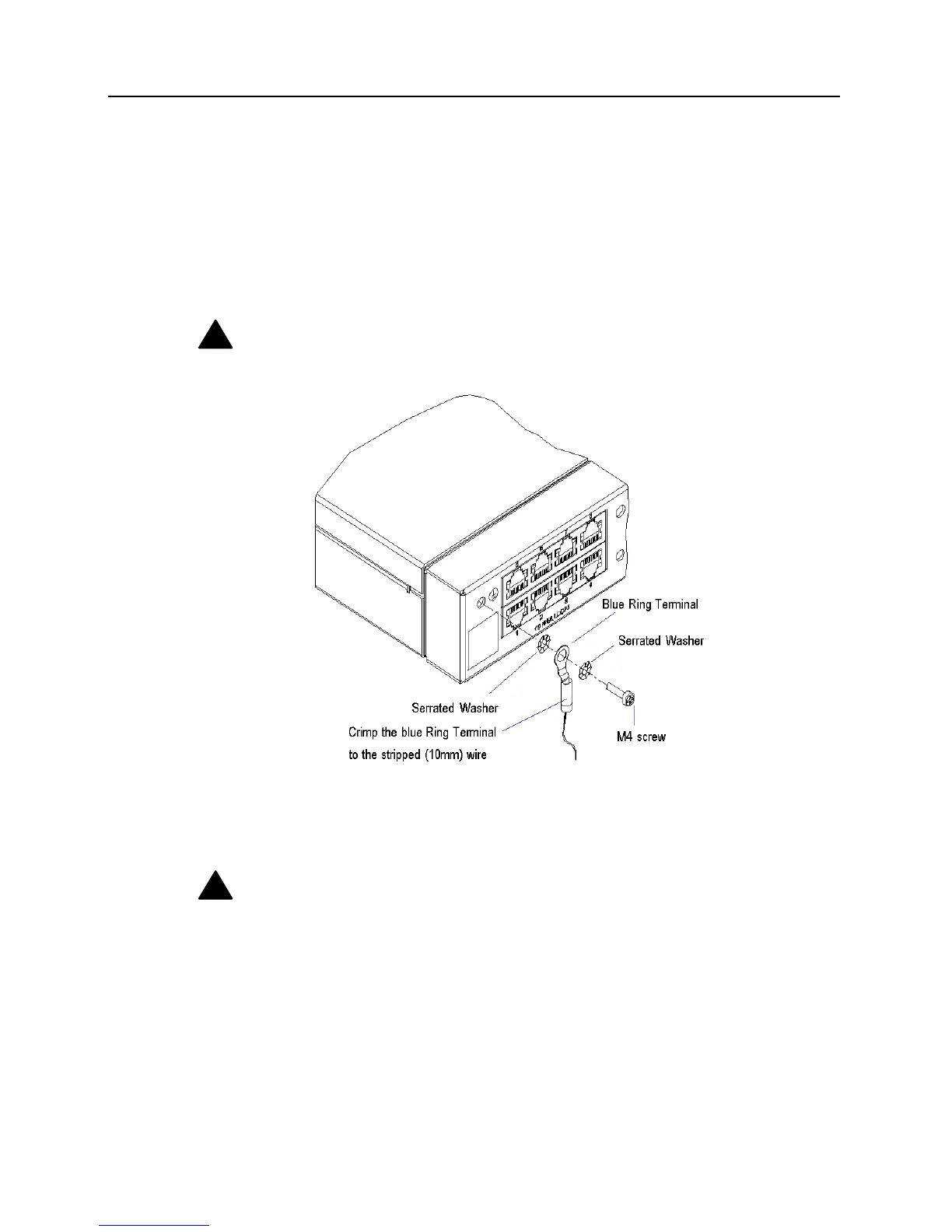

Figure 7: Ground wire attachment
Wiring Instructions for DC Power Source
!
Caution: A readily accessible Listed branch circuit overcurrent protective device rated
at 5A Slow Blow is recommended to be incorporated in the building wiring. A 5A circuit
over current protective device may feed 2 ML600 units in rack mount sleeve.
ML600 Release 5.0a Quick Installation Guide 13
