4 Installing the medical device
4.1 Handpiece
The handpieces are designed to operate exclusively with SATELEC dental ultrasonic generators.
4.2 Handpiece cord
The cord enables irrigation flow and provides an electrical connection between the medical device and the handpiece.
Never rotate the handpiece connector on its cord as this can damage your medical device.
Never wrap the handpiece cord around the medical device.
Make sure that it is not possible to wheel over or walk on the different cords.
The cord attached to its handpiece must be easily accessible. Make sure that the cord is slack during use.

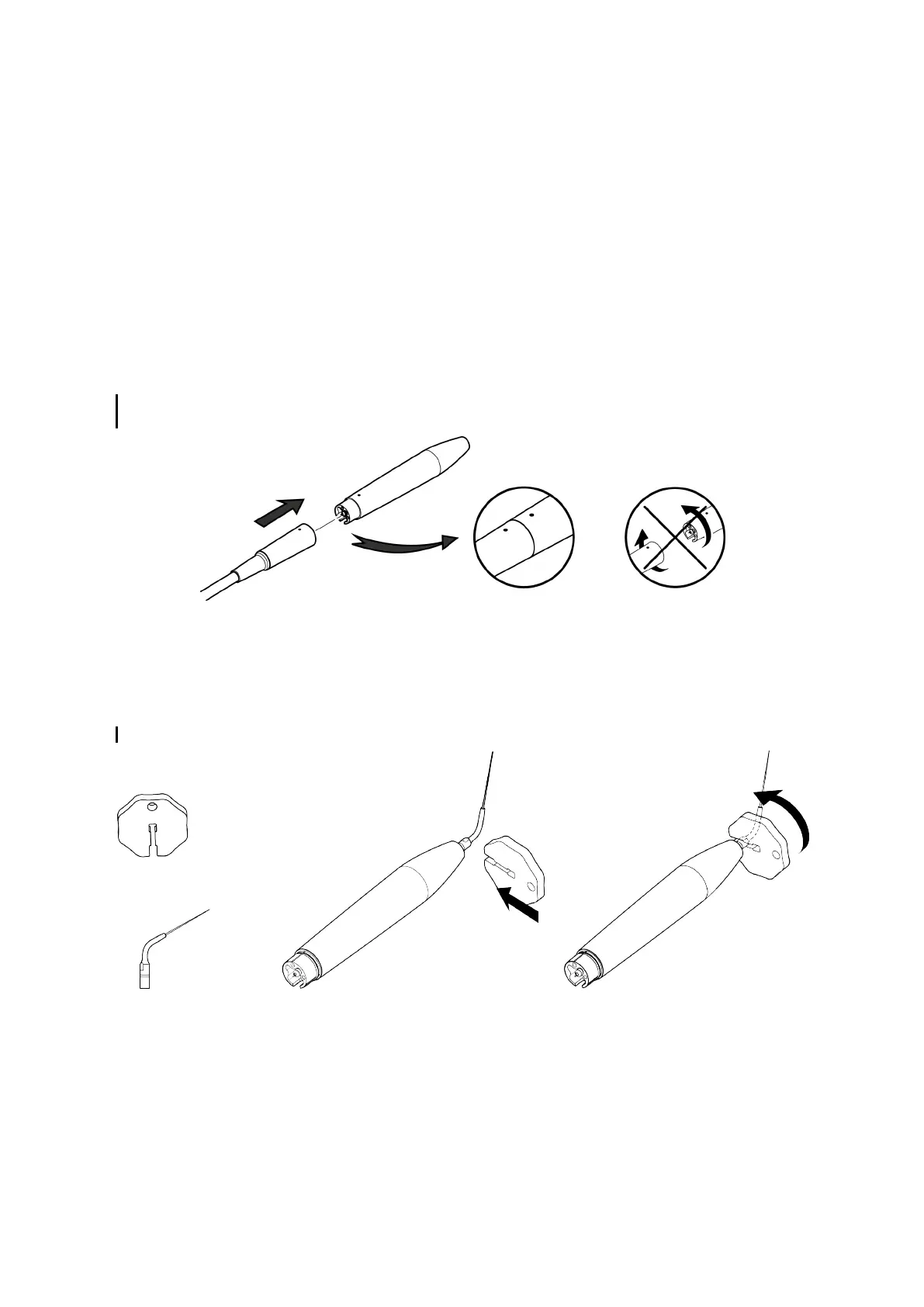

4.3 Connecting the handpiece
Check for any traces of humidity on the handpiece connections.If the connections are damp, dry them with the multi-
purpose syringe.
Lubricate the irrigation circuit seal located on the metal shaft on the back of the handpiece with silicone paste.
This will prolong its service life and prevent leaks. Do not use spray lubricant on dental instruments.
Place the handpiece on the support.
4.4 Attaching a tip or a file
A tip or a file vibrates correctly when it is perfectly tightened without being forced beyond its stop point. Tighten the tip with
the torque wrench (F81320, F81321, F81322 or F81323) to ensure optimum ultrasonic function. Over-tightening of the tip
or file with the open-ended wrench can result in breakage of the tip, file or handpiece.
To prevent self-locking of the tip or the file, the latter must be removed and sterilised after each use.
User Manual | handpiece Newtron LED | J12611 | V4 | (07) | 01/2021 | NB62EN020D - Page 9/28
