Hardware Manual
18

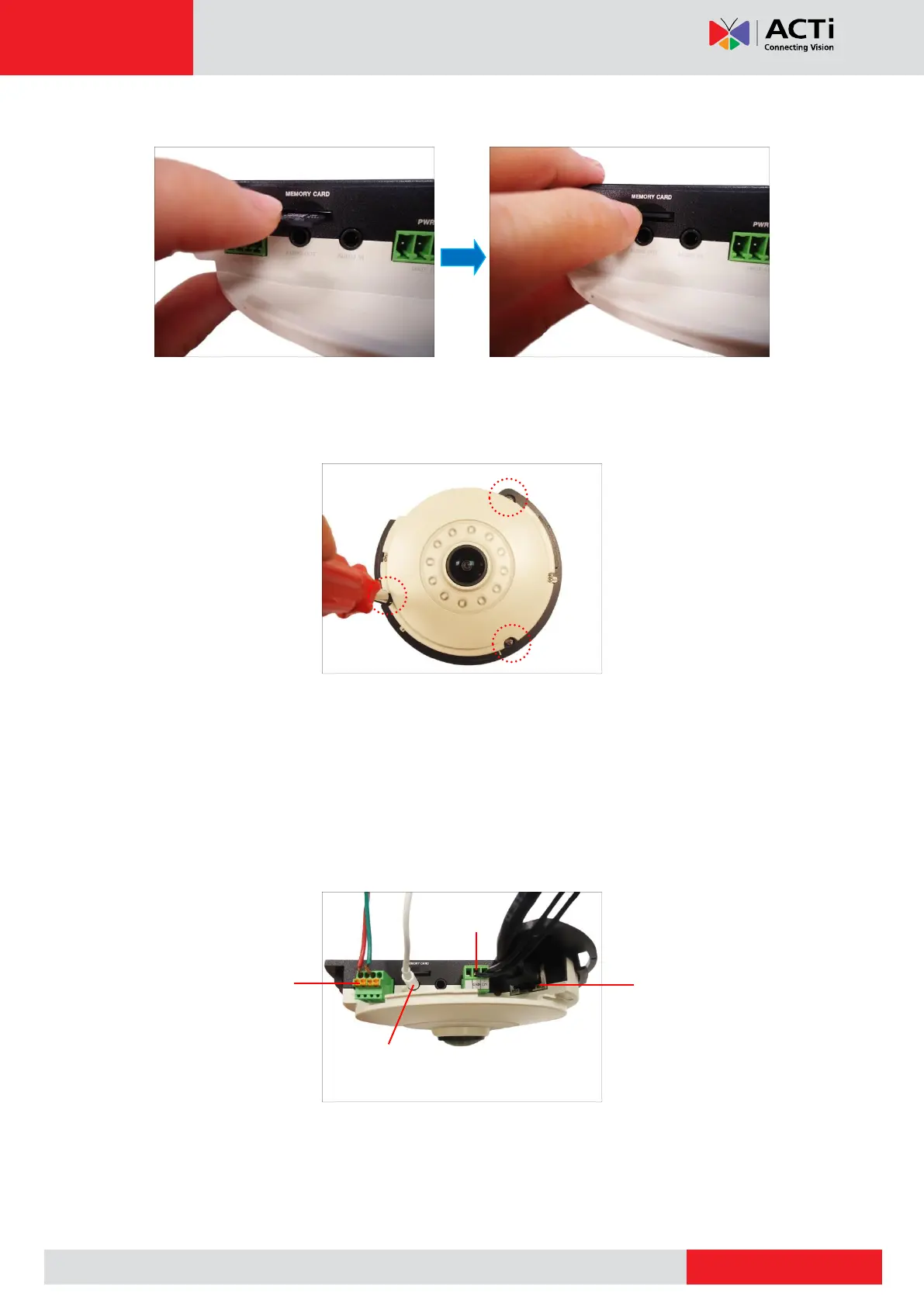

3. Install a memory card into the memory card slot of the camera, as needed.
Step 3: Install the Camera
Install the camera using the three (3) supplied screws.
Step 4: Connect the Cable(s)
1. Connect one end of the network cable to the camera.
If necessary, connect other cable connectors (optional), like audio input/output, DC 12V
power, and DI/DO. See sample image below.
NOTE: The cables are not included in the camera package.
Network Cable
DC 12V
Power
Audio Output
DI / DO
