ACTi B57A - Physical Description

www.acti.com
Hardware Manual
8

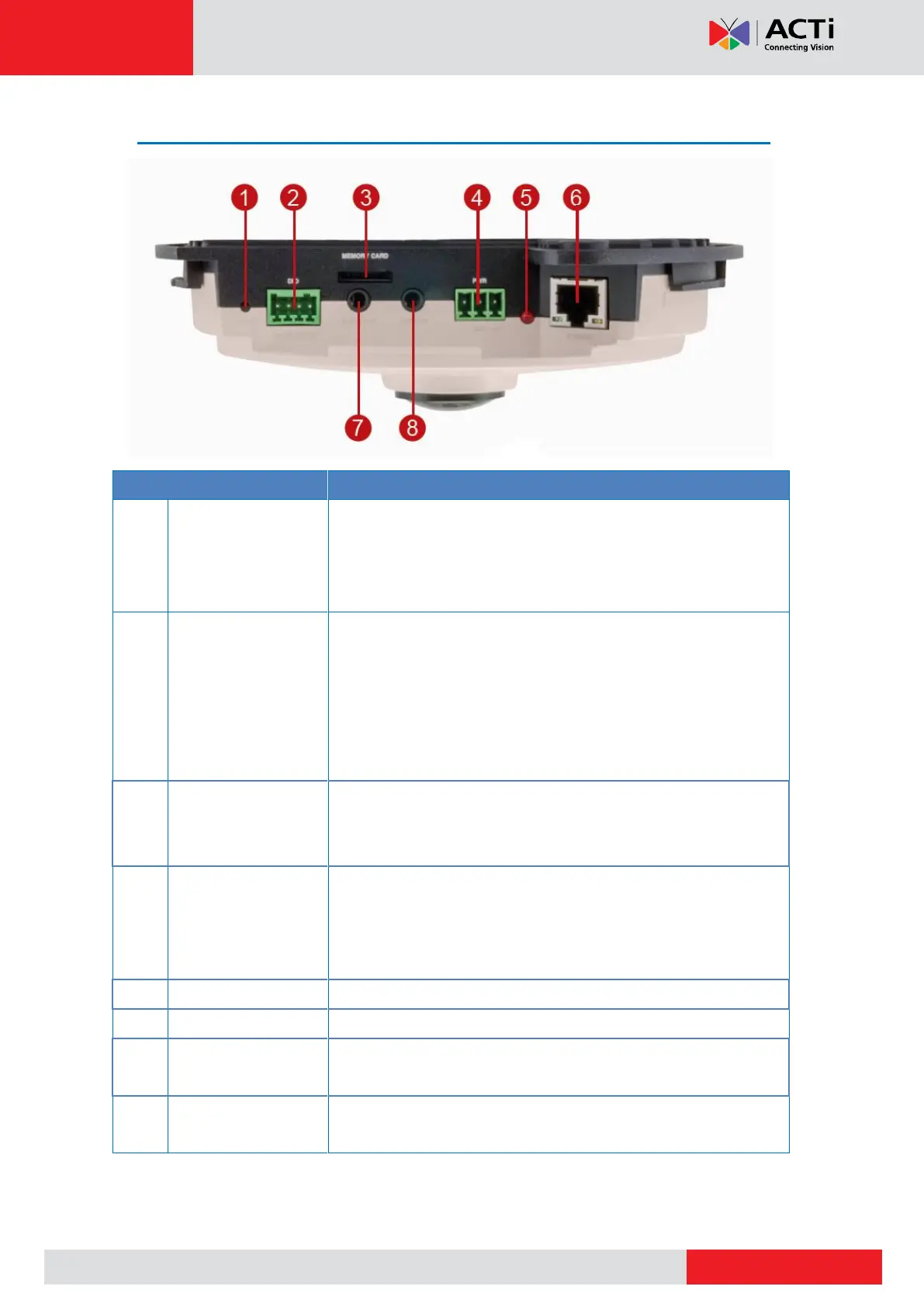

Physical Description
Item
Description
1
Reset Button
Used to restore the factory default settings, including the
administrator’s password. Using a pointed object, such as a pen,
press and hold the Reset button for 5 seconds or until the Power
LED lights up.
2
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Prepare the DI/DO
Connector (Optional) on page 11 for information on how to
connect DI/DO devices to your camera.
3
Memory Card Slot
Insert a memory card (not included) into the slot for local
recording purposes.
NOTE: Supports only microSDHC and microSDXC cards.
4
DC 12V Power Input
In case the camera is connected to a non-PoE (Power over
Ethernet) switch, use this connector to connect the camera to an
external power adapter. See Prepare the Power Adapter
(Optional) on page 9 for information.
5
Power LED
Lights up when the camera is powered on.
6
Ethernet Port
Connects to the network using an Ethernet cable.
7
Audio Output
Connects to an audio output device, such as a speaker, with a
3.5 mm audio jack connector.
8
Audio Input
Connects to an audio input device, such as a microphone, with a
3.5 mm audio jack connector.
