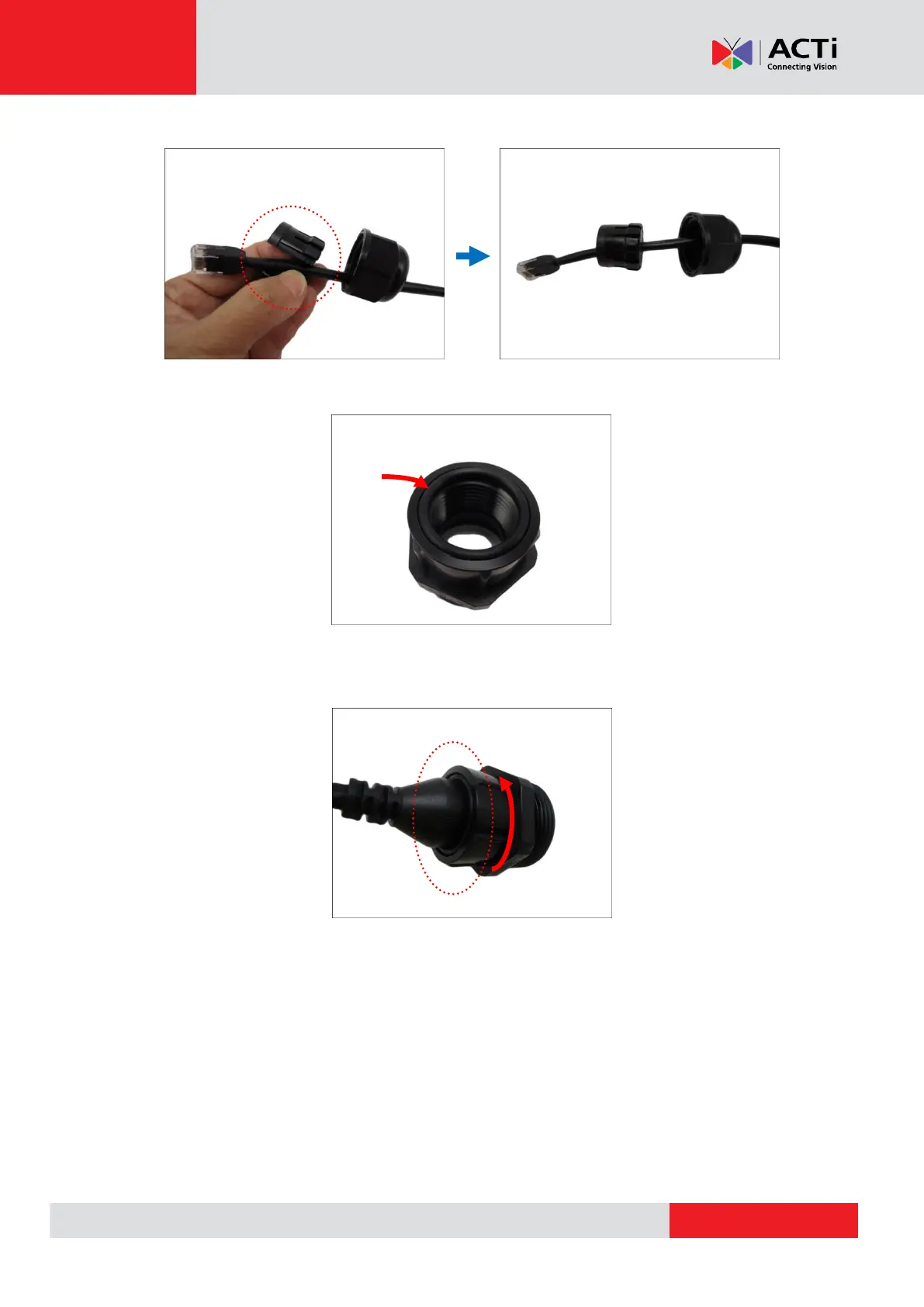

4. Insert the Ethernet cable through the sealing rubber and claw.
5. Ensure the rubber ring is attached on the gland body (smooth end).
NOTE: Make sure the rubber ring is completely aligned on the gap on the gland body.
6. Attach the gland body to the Ethernet port of the camera.
IMPORTANT!
Make sure the rubber ring is completely aligned and flat on the gland body to avoid
possible water leakage.
