ACTi B915 - Physical Description

www.acti.com
Hardware Manual
9

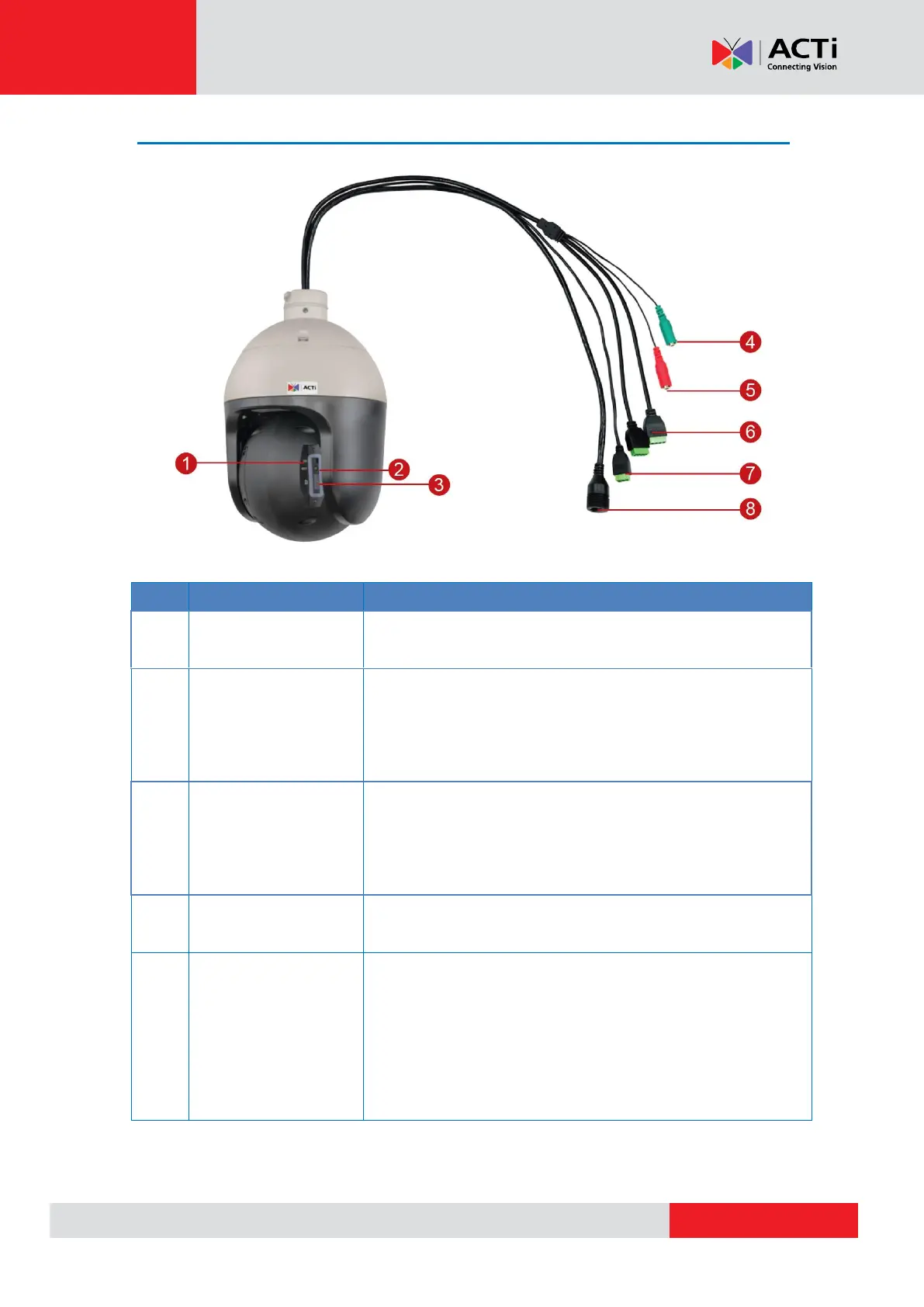

Physical Description
No.
Item
Description
1
Power LED
The Power LED lights red when the camera is powered up and
goes off when the boot up process is complete.
2
Reset Button
The reset button is used to restore the factory default settings
of the camera, including the administrator’s password.
To reset the camera, do the following: Press and hold the reset
button for at least 5 seconds or until the Power LED turns on.
3
Memory Card Slot
Insert a memory card into this slot for local recording purposes.
See Insert the Memory Card (Optional) on page 13 for more
information.
NOTE: Supports microSDHC cards only.
4
Audio Output
This jack connects to an audio output device, such as a
speaker. See How to Connect Audio Devices on page 39.
5
Audio Input
This jack connects to an audio input device, such as a
microphone with built-in amplifier. See How to Connect Audio
Devices on page 39.
NOTE: Make sure that the connected audio input device has a
built-in amplifier. Connecting an ordinary microphone will dwarf
sounds and will result in inaudible recording.
