www.acti.com
Hardware Manual
21

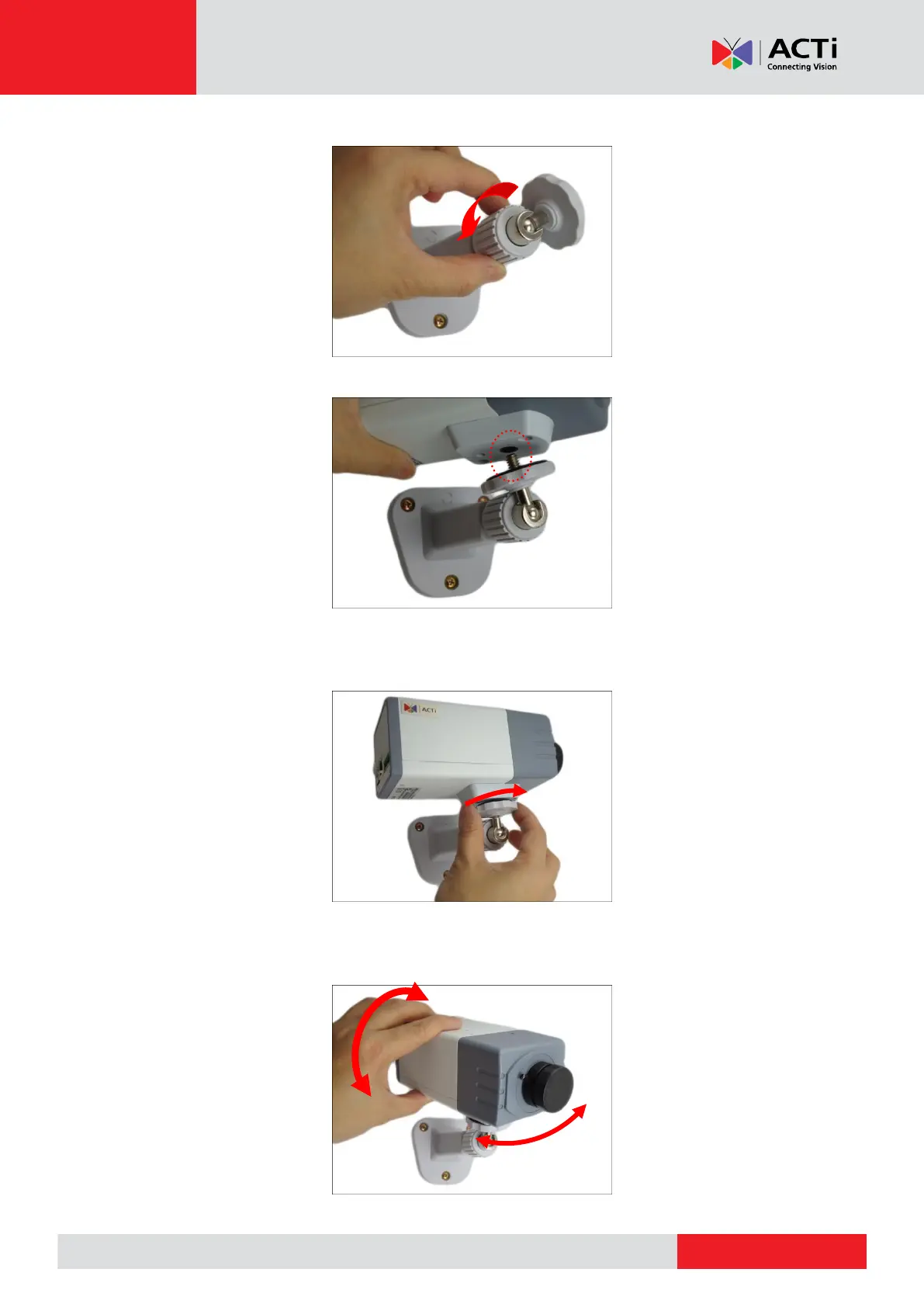

2. Slightly loosen the knurled knob.
3. Screw the camera to the bracket by its mounting block.
4. Tighten the hand knob until the camera is secured to the bracket.
5. Adjust the camera angle.
