ACTi E43 - Step 1: Remove the Pre-Installed Network Cable (Pigtail)

www.acti.com
Installation Guide
28

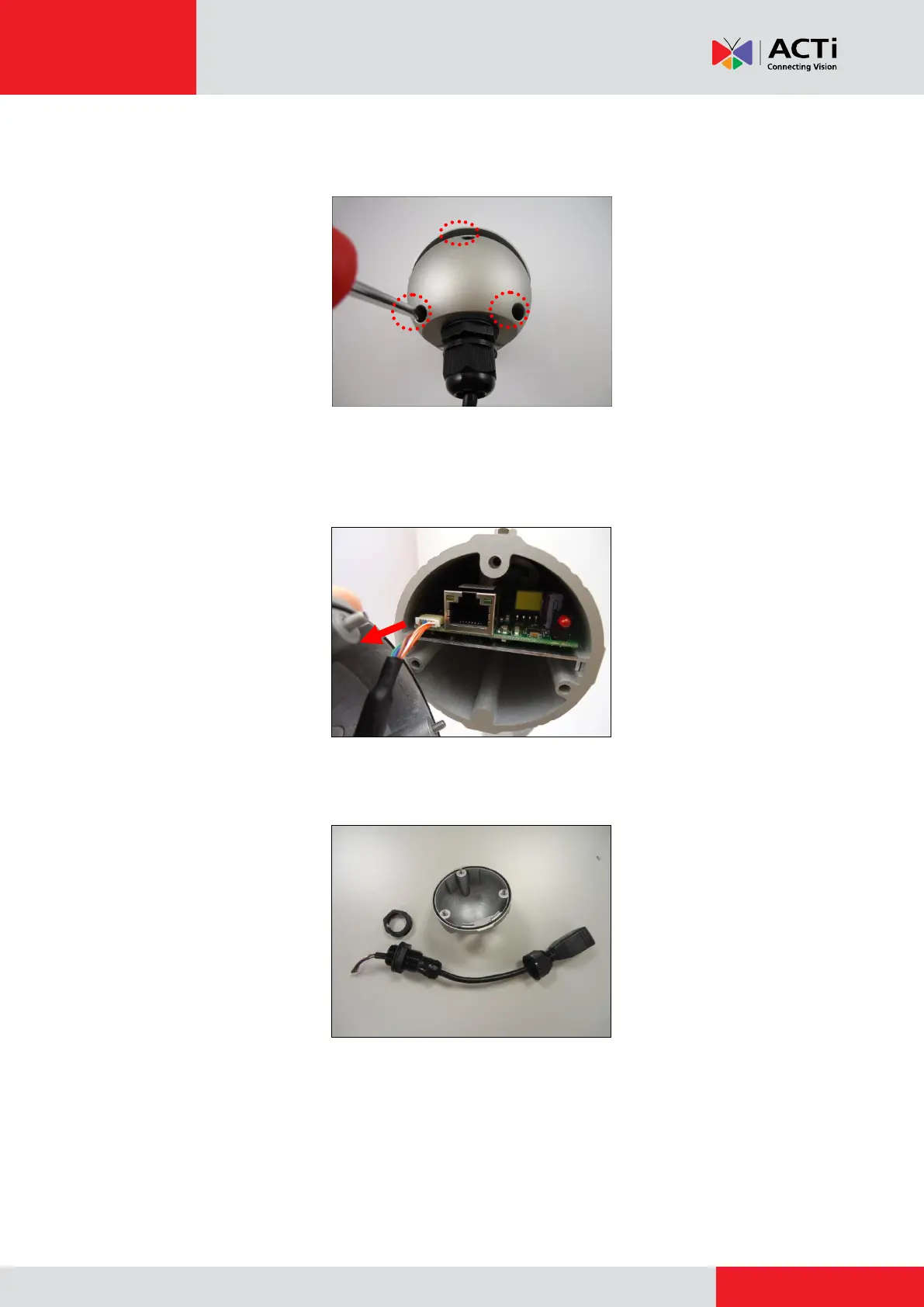

Step 1: Remove the Pre-installed Network Cable (“Pigtail”)
1. Loosen the three (3) screws to detach the back cover.
NOTE: A cable is connected inside the camera; do not abruptly pull the back cover.
2. Disconnect the network connector.
3. Remove the pre-installed cable gland and network cable using pliers (not included in the
package).
