Hardware Manual
9

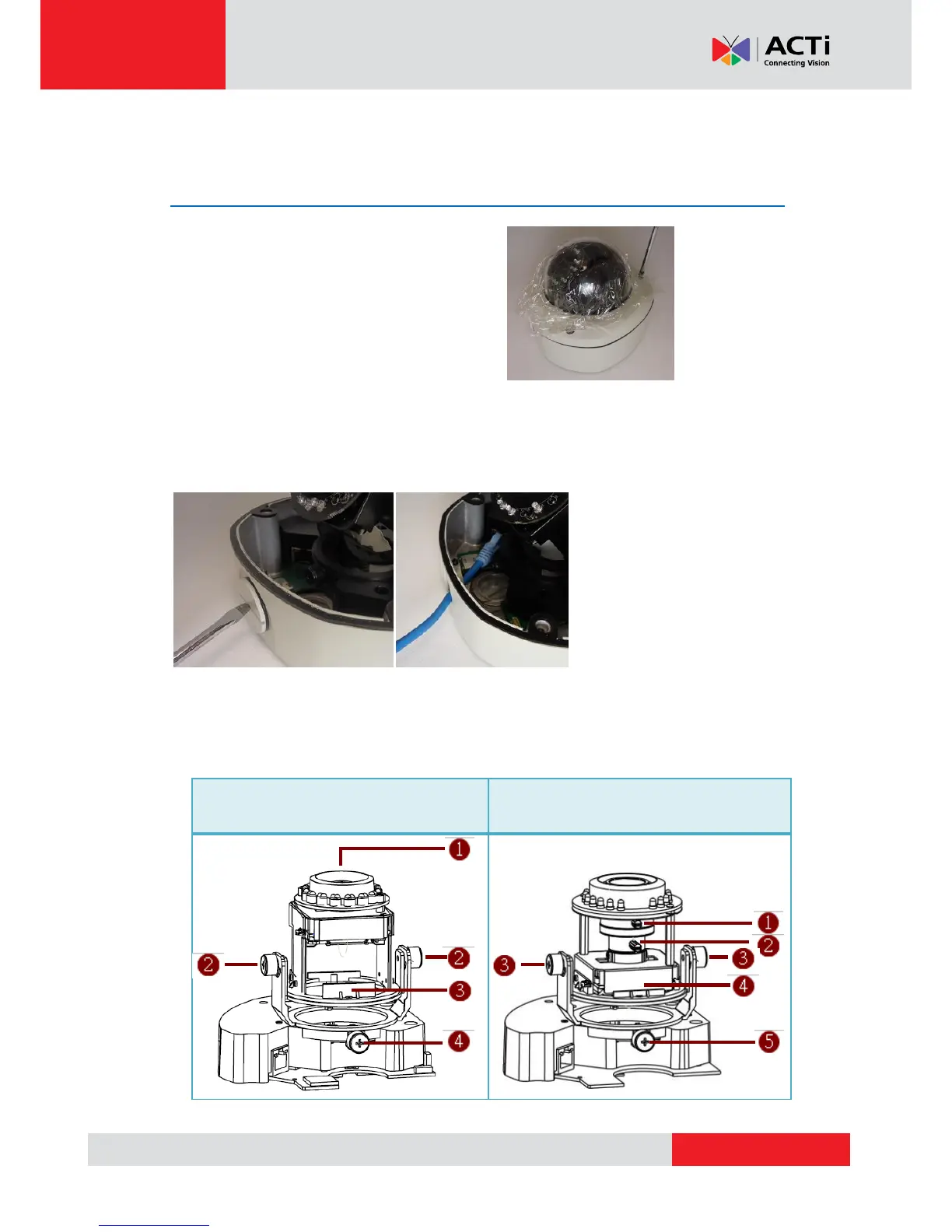

Installation and Access
Basic Connections
1) Remove the cover
Remove the dome cover with Phillips screwdriver.
2) Insert the cable
There are two conduit holes on the outdoor dome. One is at the bottom, while the other is at the
side and covered with a plug. Remove the plug if your cable will go through the one at the side of
the outdoor dome
3) Adjust viewing angle and focus
The illustration shows where to adjust each axis.
D71, D72, E71, E72, E73, E74
D81, D82, E81, E82, E83, E84,
E85, E86, E87
