ACTi Q13 - Page 29

www.acti.com
Hardware Manual
29

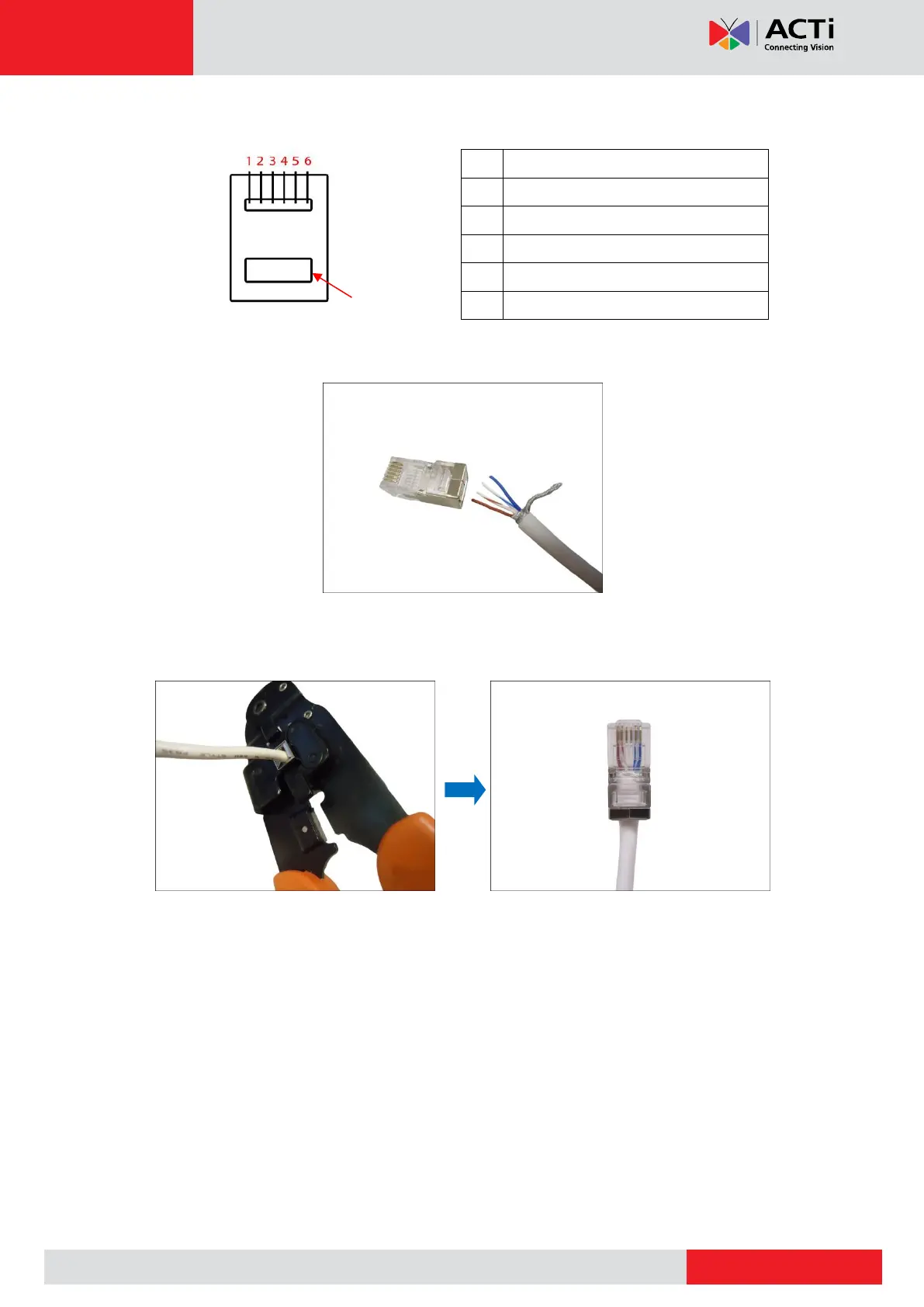

6. Unwind the wires and arrange them according to the color sequence below.
This side up
1
Brown
2
Stripe Brown
3
Unused
4
Unused
5
Stripe Blue
6
Blue
7. Push the wires into the connector all the way to the end.
8. Place the connector into the crimping tool, and cinch down to secure the RJ-12
connector to the cable.
NOTE: If the RJ-12 connector has metal shielding, solder the braid on the connector
shielding.
