ACTi Q13 - Physical Description

www.acti.com
Hardware Manual
9

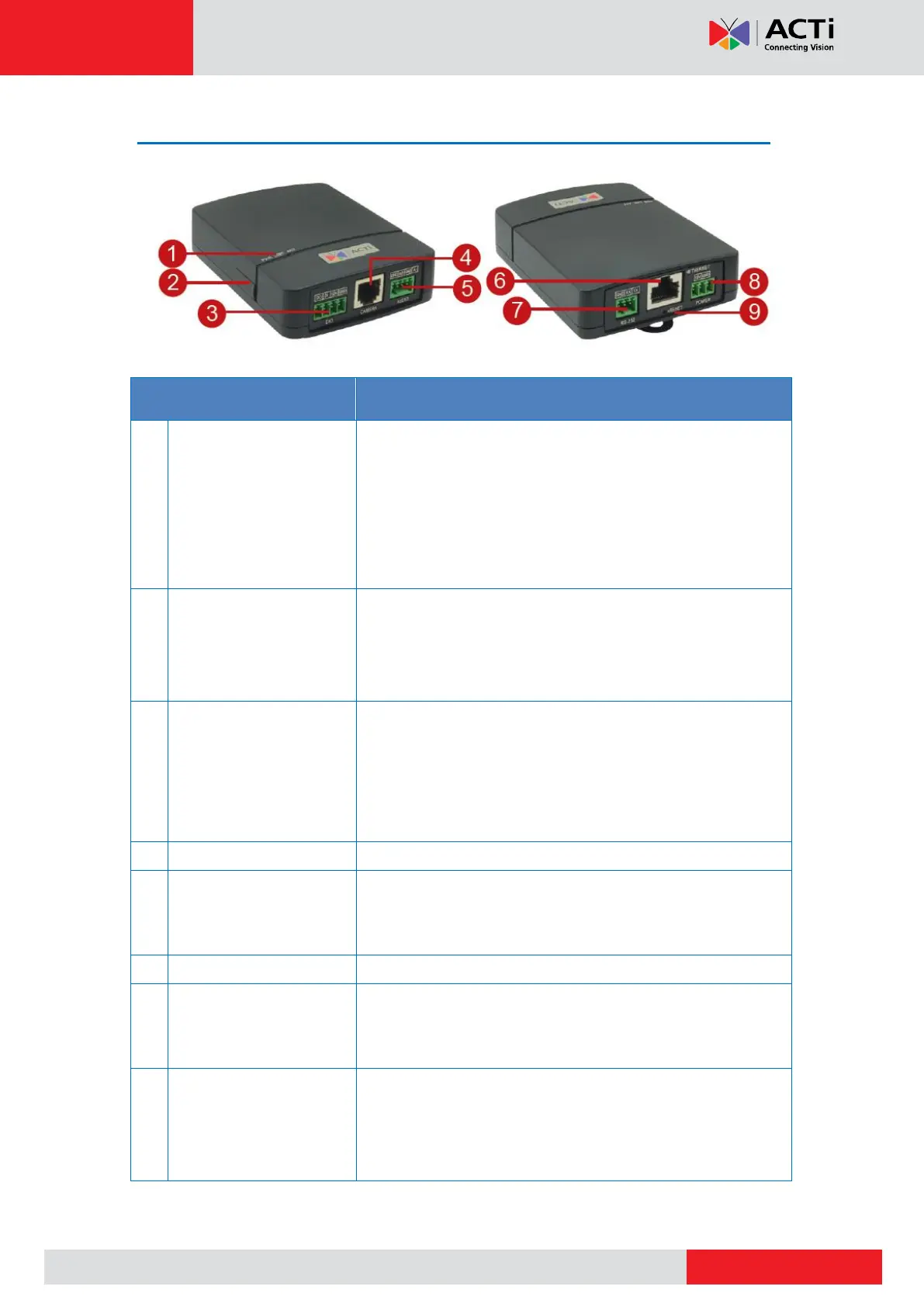

Physical Description
Item
Description
1
LED Indicators
 Power LED (PWR): Lights BLUE to indicate power is
connected.
 Link LED (LINK): Lights GREEN to indicate network is
connected.
 Activity LED (ACT) : Flashes AMBER to indicate network
activity is in progress.
2
Memory Card Slot
Insert a memory card (not included) into the slot for local
recording purposes. See How to Install / Remove the
Memory Card on page 26 for more information.
NOTE: Supports only microSDHC and microSDXC cards.
3
Digital Input / Output
Connects to digital input or output devices, such as an alarm
trigger, panic button, etc. Digital Input (DI) and Digital Output
(DO) devices are used in applications like motion detection,
event triggering, alarm notifications, etc. See Connecting
DI/DO Devices (Optional) on page 21 for information.
4
Camera Port
Connects the camera.
5
Audio Input / Output
Connects to audio input and output devices, such as
microphones and speakers. See Connecting Audio In / Out
Devices (Optional) on page 24 for more information.
6
Ethernet Port
Connects to a network using an Ethernet cable.
7
Serial Port
Connects to serial device using the RS-232 protocol. See
Connecting Serial Devices (Optional) on page 25 for more
informatioin.
8
DC 12V Power Input
In case the camera is connected to a non-PoE (Power over
Ethernet) switch, use this connector to connect the camera to
an external power adapter. See Connecting a Power
Adapter (Optional) on page 19 for more information.
