ACTi Z98 - Step 5: Connect to Network; Step 6: Access the Camera Live View; Step 7: Adjust the Viewing Angle and Orientation

www.acti.com
Hardware Manual
18

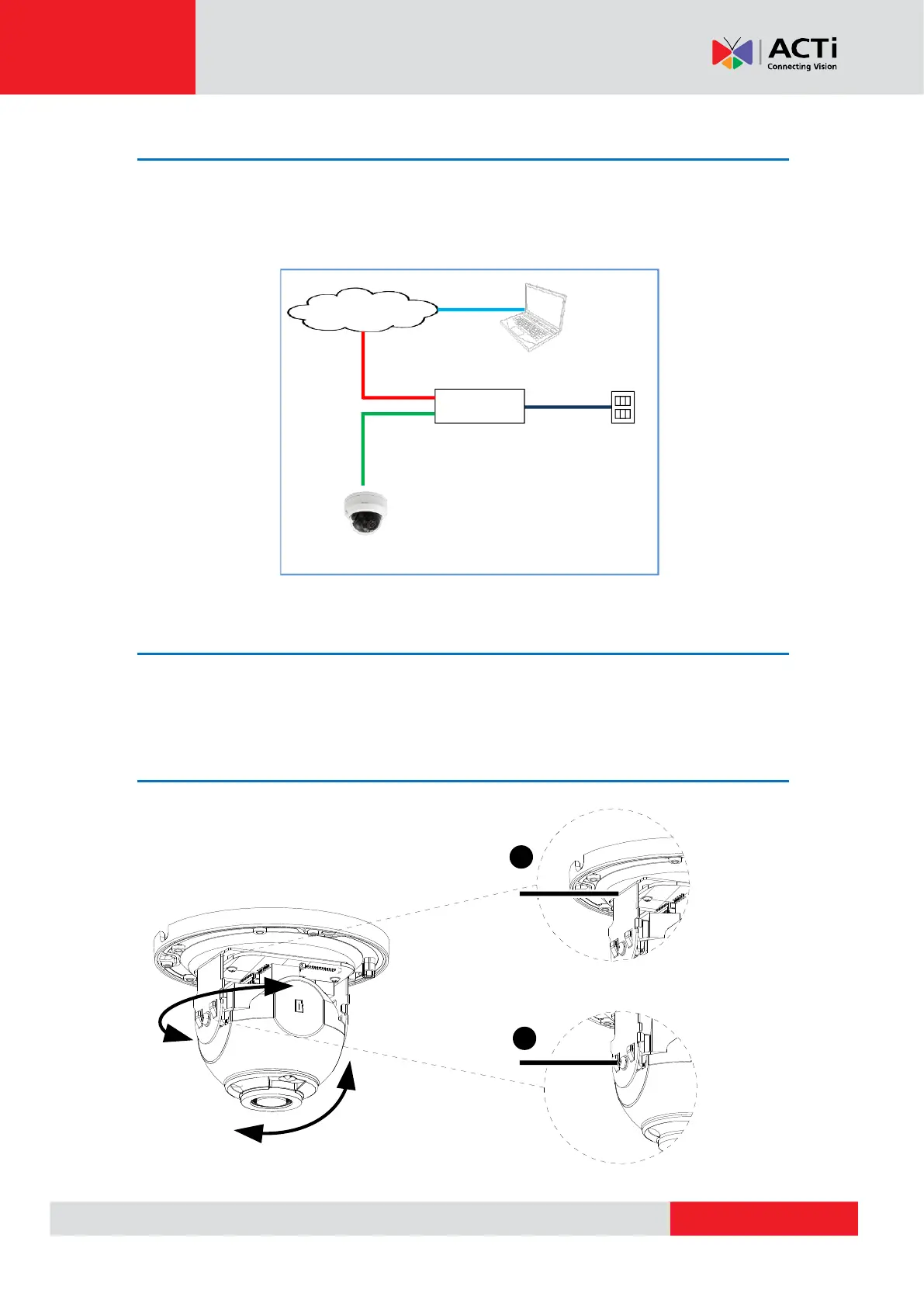

Step 5: Connect to Network
Connect the other end of the network cable to a switch or injector. Then, connect the switch or
injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example
connection diagram below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Step 6: Access the Camera Live View
See Accessing the Camera on page 20 for more information on how to access the Live View of
the camera.
Step 7: Adjust the Viewing Angle and Orientation
Lens
base
1
Fastening
screw
2
