Action SPARK - Frame; Screw Nut

16
SPARK by Action Trampoline Climbing Bar
Step 5

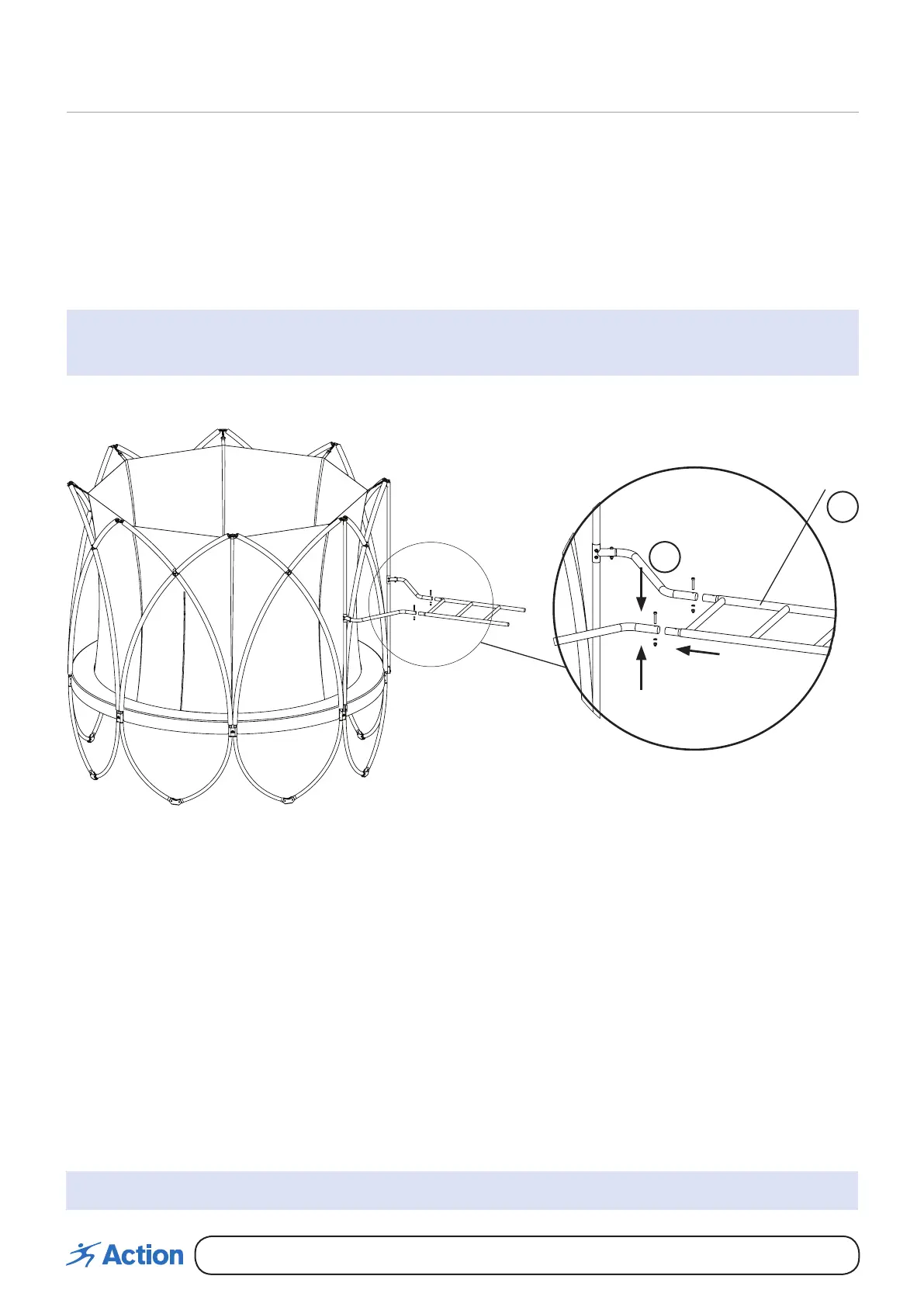

1. Attach Bar Frame (8) to Pole 2 (7) and secure with Bolt 2 (10), Washer (12) and Screw Nut
(11).
2. Tighten with Allen Key (13) and Wrench (14).
Assembly Instructions (cont)
批准
制造
尺寸使用毫米
公差:
角度:
日期
材料:
重量:
NOTE: If you have any problems by this stage, please do not try to install the accessory and call 1800 465 070
NOTE: Stage 5 and 6 is recommended to have assistance with support of the climbing bar
frame.
8
7
3
1
2
Frame
