Actiontec USB/Ethernet DSL Modem User Manual
5
Chapter 1 Introduction
Rear Panel

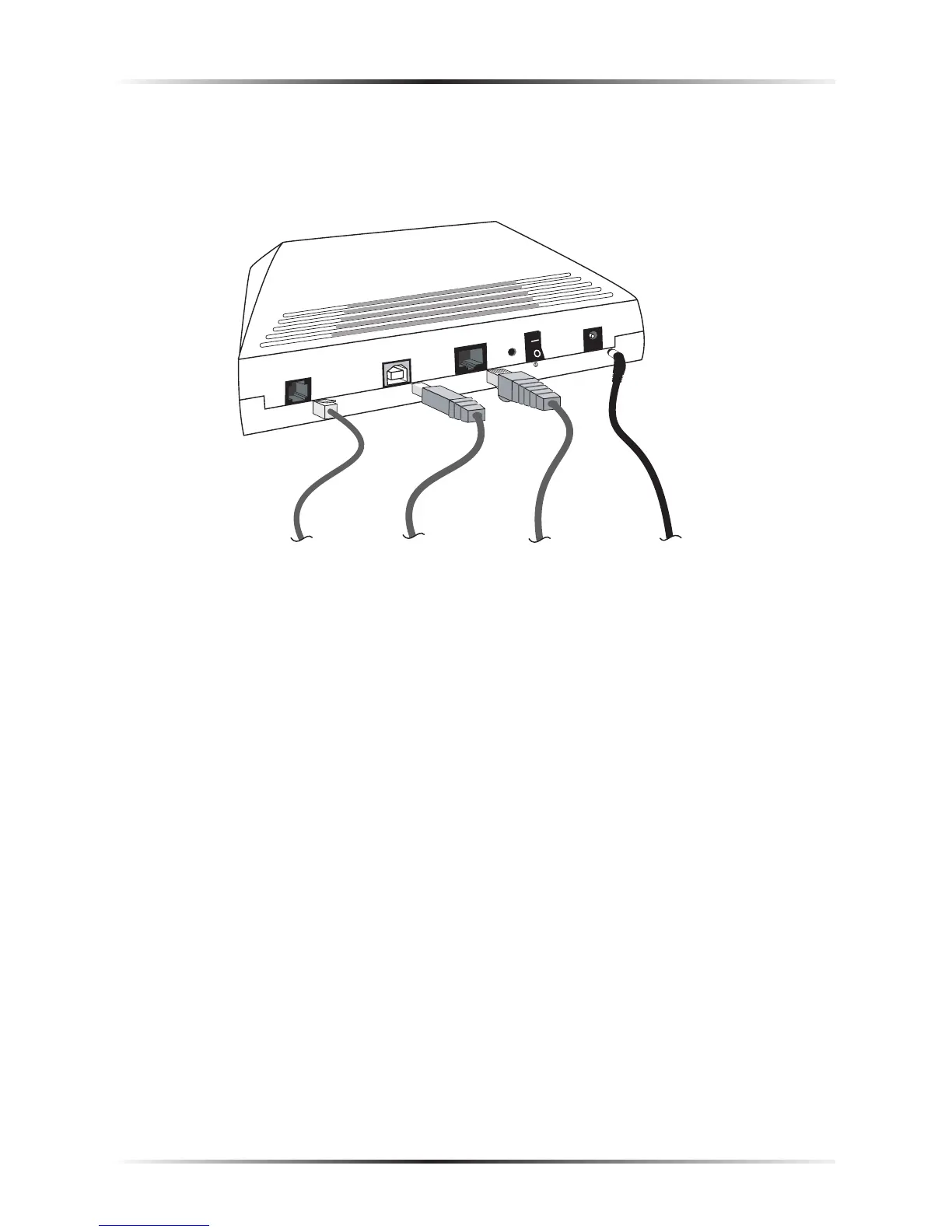

The rear panel of the Modem contains four ports (Phone, USB, Ethernet, and
Power), as well as an On/Off switch and Reset button.
Power
Reset
Phone
USB
Etherne
t
Black Power Cord
(from black Power
port to Power Outlet)
Yellow Ethernet Cable
(from yellow Ethernet
port to Computer)
Blue USB Cable
(from blue USB
port to Computer)
Gray DSL Cable
(from gray Phone
port to Phone Jack)
Phone Port
The Phone port is used to connect the Modem to a phone jack.
USB Port
The USB port is used to connect a computer to the Modem via USB cable.
Ethernet Port
The Ethernet port is used to connect a computer to the Modem via Ethernet
cable. The Ethernet port is a 10/100 Mbps auto-sensing port, and either a straight-
through or crossover Ethernet cable can be used when connecting to the port.
