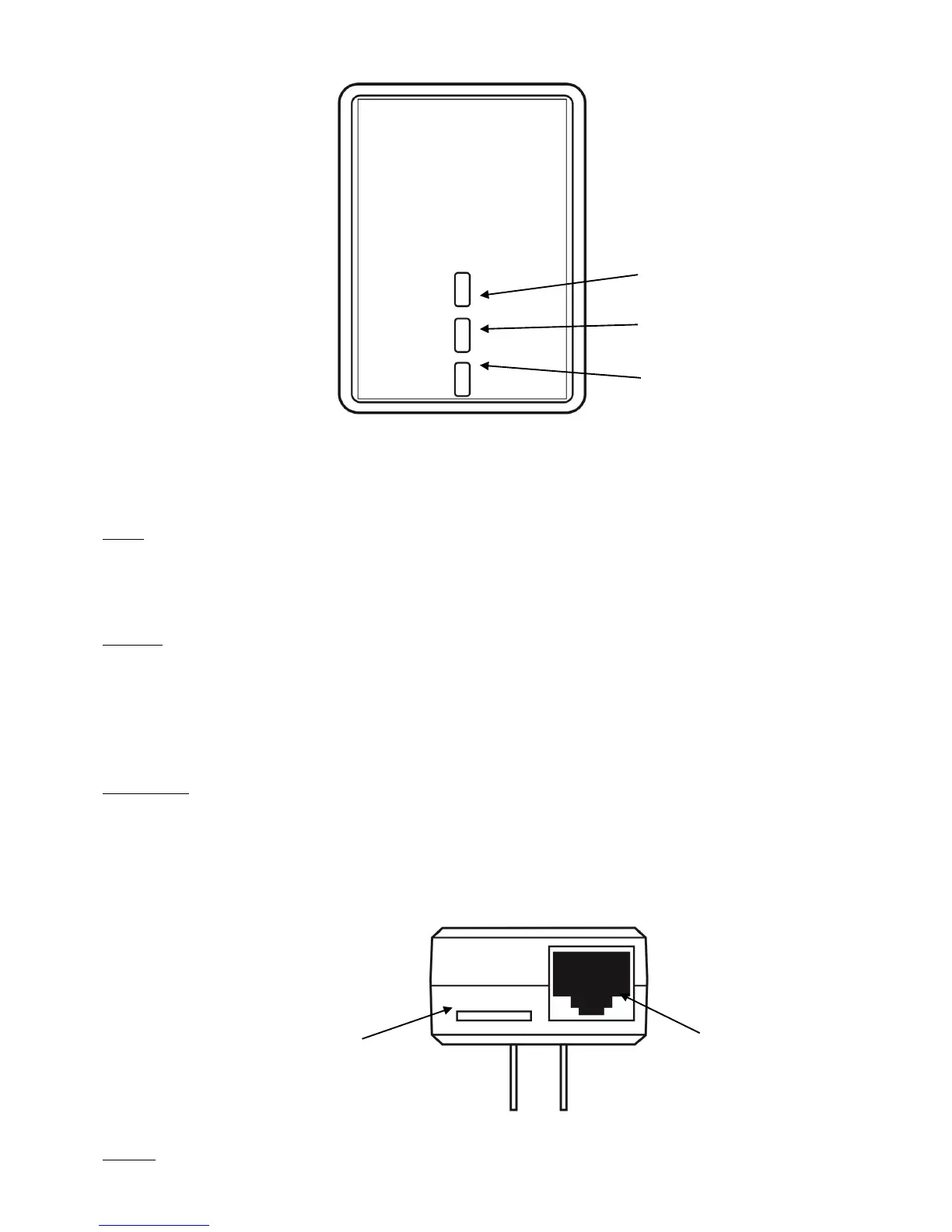

Status Lights
Power
On: This HomePlug Ethernet Bridge is receiving electrical power
Off: Power off
Flashing Green ( 1 second ON, 4 second OFF ) : Device in standby mode
PLC Link
The PLC (Powerline) Link light will indicate the overall speed of your network with 3 colors:
Red: Minimum connection indicates weak signal and slower network speed: less than 5Mbps
Orange: Normal signal with standard network speed: 5-39Mbps
Green: Excellent signal with optimal network speed: 40Mbps+
Off: No activity. This HomePlug Ethernet Bridge is not connected
Ethernet Link
Solid Green: 10/100 Mbps port linked
Off: Ethernet Link not active
Bottom Casing
The bottom casing contains a recessed Reset Button, a Security Button, and an Ethernet Port.
Security / Reset Button
This button has dual functions : Security and Reset
Security
