R915

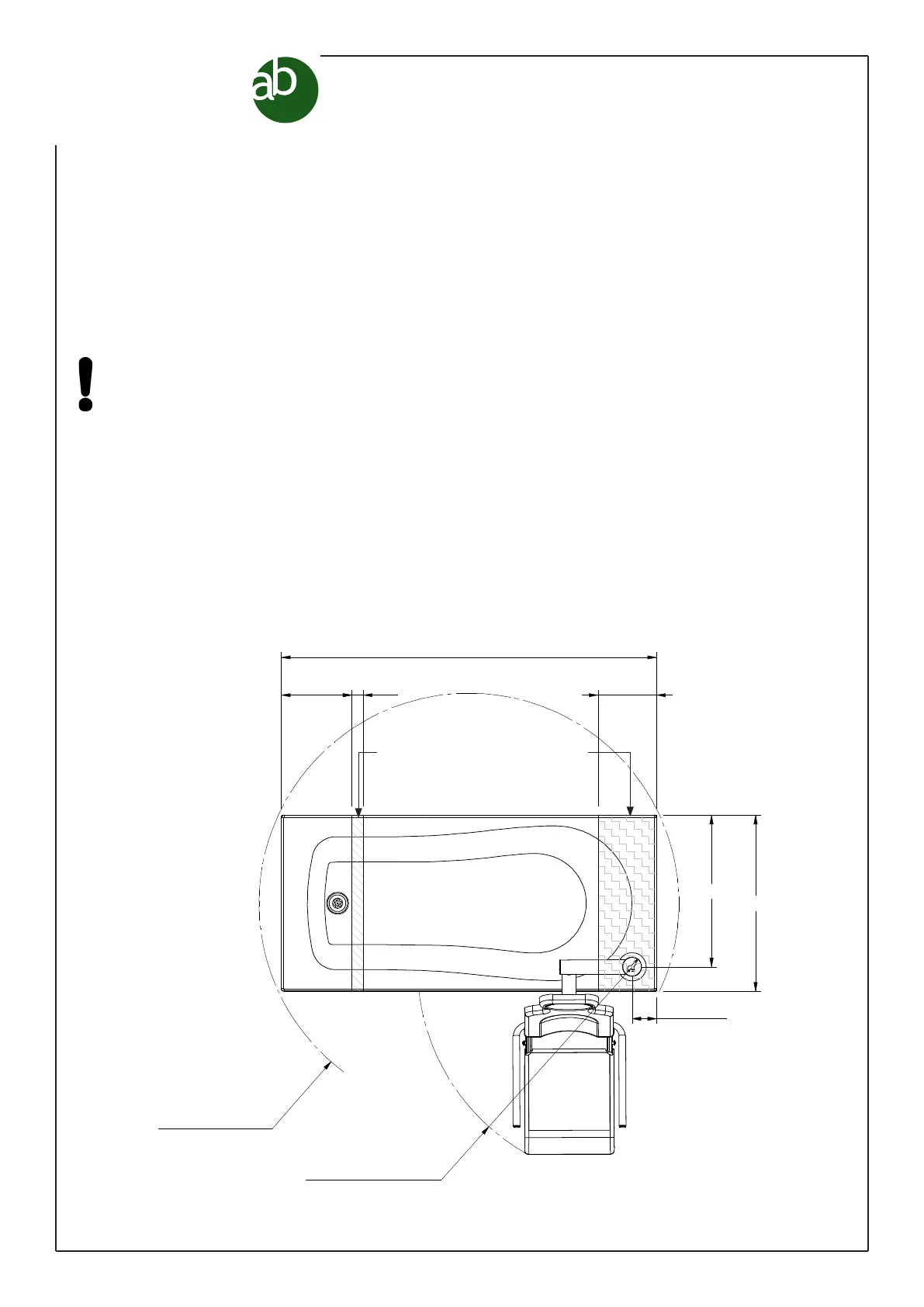

SEAT SWING RADIUS
TURNING CIRCLE
INS T ALLATION:
300 50 250
750
108
646
BATH LENGTH
INSTALLATION
Positioning
• All wall decoration including floor coverings and tiling, MUST be complete before
the bath is installed, where applicable, skirting boards may be left in place.
• Adjacent walls MUST be plumb, flat and clear of obstructions e.g. No Electric
showers or towel rails in the area where the chair operates.
• The bath can be fitted as a corner, alcove or peninsular unit.
There must be enough space to clear the users legs when the chair swings out
of the bath and sufficient space to transfer on and off the seat.
• The floor MUST be clear of obstructions including pipe work and wiring in the
shaded area’s shown at both ends of the bath, this includes under floor heating
etc...
•The floor must be strong enough (especially in the shaded areas) to carry the
weight of the bath when full and occupied.
No obstructions can be laid on
the floor in the shaded areas
Bath Lengths: 1600mm, 1700mm
Turning Circle: 1790mm, 1880mm
