INSTALLATION
Plumbing and electrical
• The bath requires a 1 off 230 volt, 1.25 kW, wall mounted waterproof flex
outlet, supplied from a protected fused spur.
• The electrical outlet can be located at either end of the bath, but MUST be
100mm from the edge of the bath.

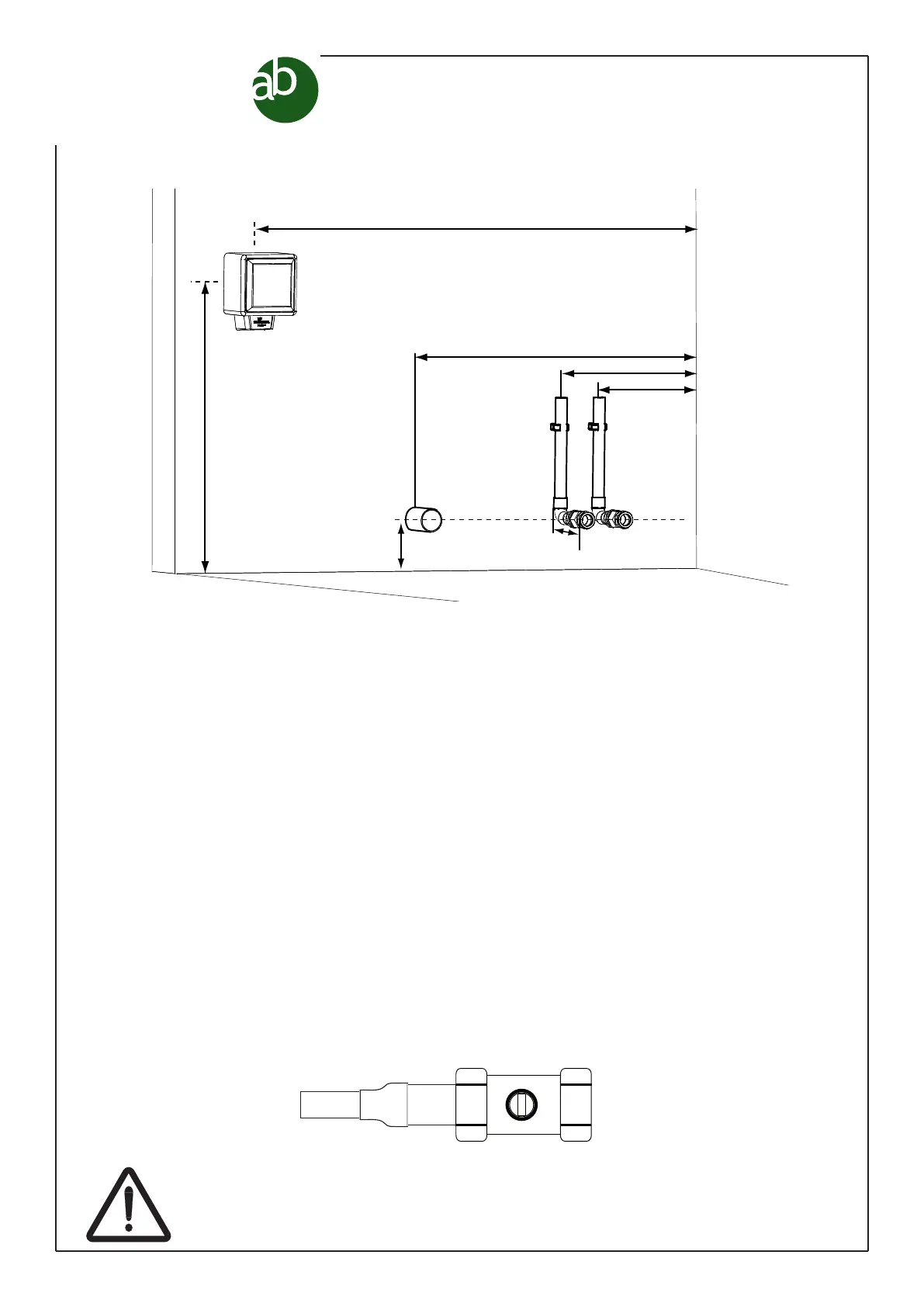

• We recommend the waste and water supply pipes be mounted at the tap end
of the bath and positioned to the dimensions indicated in the above diagram.
• The pipes can be wall mounted, fed through the wall or through the floor,
but both supply pipes MUST have a 22mm ball type isolation valves fitted and
orientated for easy access.
• Note: If the site piping is 15mm then this should be expanded to 22mm at the
valve end to accommodate the valves (see diagram below).
• Where baths are fitted with Thermostatic mixing valves they must
be calibrated before use to avoid the risk of scalding.
250mm
300mm
400mm to centre
80mm to centre
of pipework
100mm wall to
end of fitting
900mm wall to centre of waterproof flex outlet
450mm to centre
of box
