8

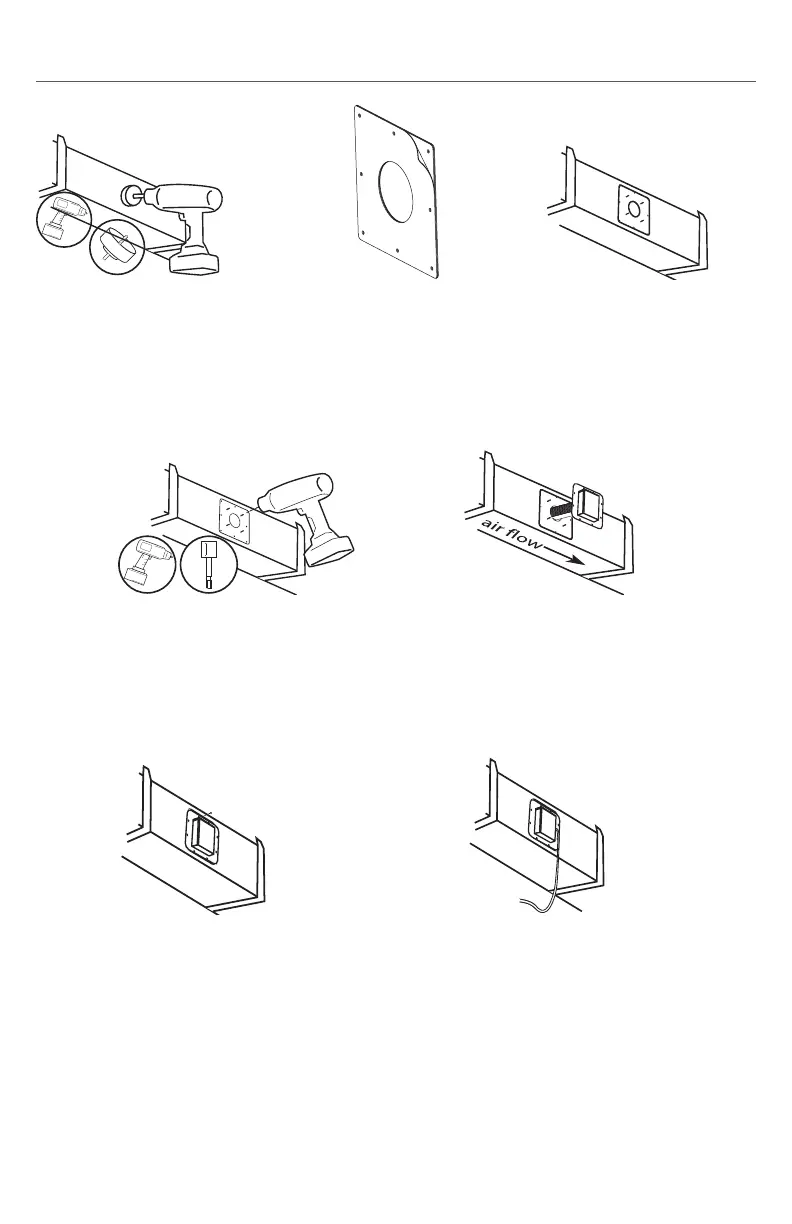

5. Remove backing from mounting
plate adhesive gasket.
6. Center openings and press
mounting plate onto duct.
The adhesive gasket will hold
the mounting plate in place.
7. Secure the mounting plate using (8)
#8 self-tapping screws.
8. Insert unit into opening. Be
sure the air will pass though the
ActivePure
®
Cell honeycomb
matrix.
9. Secure the unit to the
mounting plate with (4) thumb
nuts.
10. Plug unit into working
power receptacle.
NOTE: Unit requires power 24/7. Do not install where power to the unit will be cycled on and o.
INSTALLING THE UNIT
(
CONT.
)
4. Cut hole in duct using
3.5" hole saw.
