Actron OBD II PocketScan Code Reader CP9125 User Manual

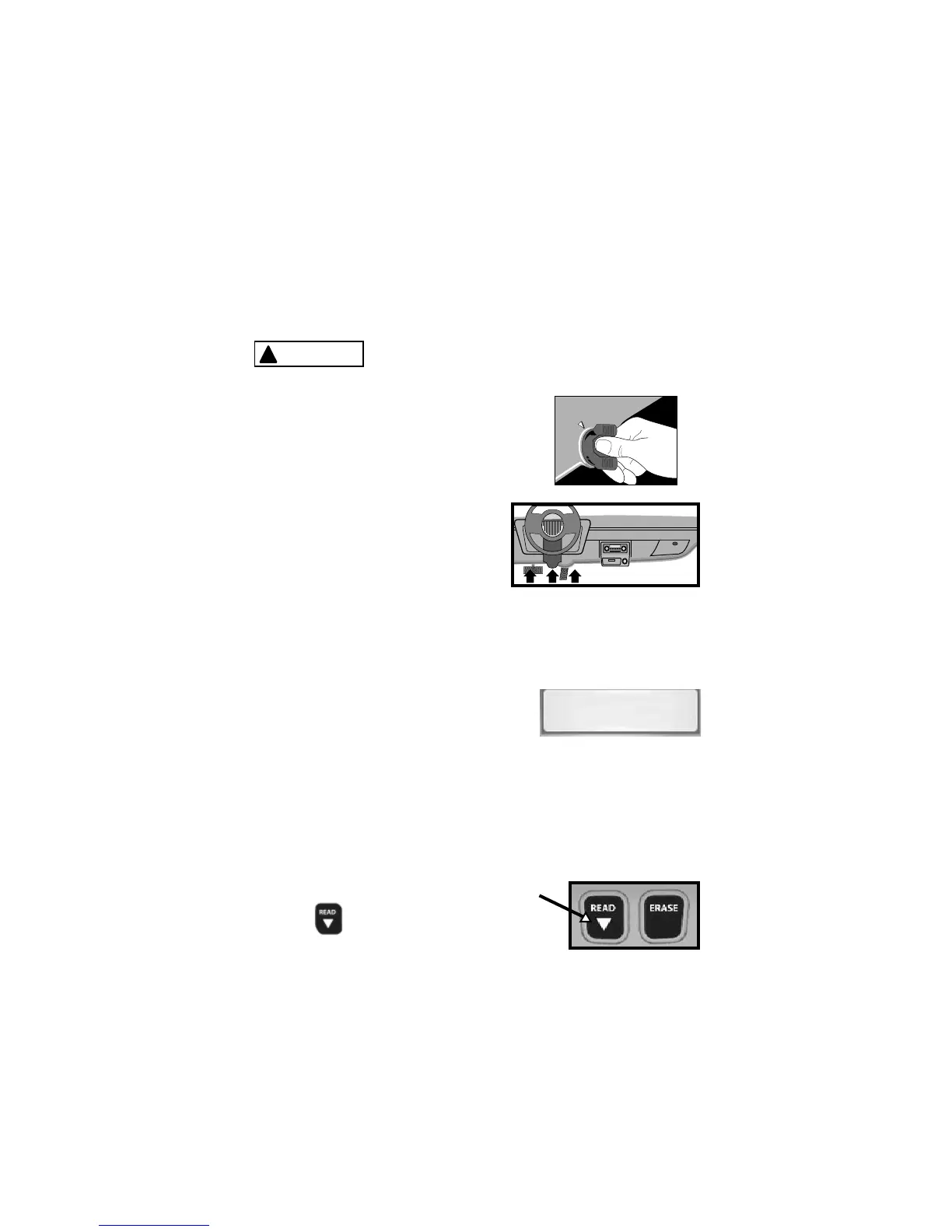

Reading Diagnostic Trouble Codes and Data
Avoid Cooling Fan! Fan may turn on
during test.
1.Turn Ignition Key to the Off Position.
2. Locate and Plug in Data Link
Connector (DLC.)
NOTE: The data link connector
should be located under
the dashboard on the
driverside of the vehicle.
If the data link connector is not located under the
dashboard as stated, a label describing the location of
the data link connector should be there.
3. Observe Display toggles between
“Pocket” and “Scan”.
NOTE: For a correct reading for
Diagnostic Trouble Codes and I/M Monitor Status,
ignition key must be in the ON position and Engine does
not require starting.
To get a correct reading for MIL Status, Engine must be
started.
4. Start Engine.
5. Press
READ/ScrREAD/Scr
READ/ScrREAD/Scr
READ/Scr
oll Dooll Do
oll Dooll Do
oll Do
wnwn
wnwn
wn Key
and Release.
O
F
F
O
N
!
WARNING
Pocket
7

Actron OBD II PocketScan Code Reader CP9125 Specifications

General

Power Source	Vehicle's OBD II port
Compatibility	OBD II compliant vehicles
Display	LCD
Connectivity	OBD II
Features	Reads and erases diagnostic trouble codes (DTCs)
Functions	Diagnostic trouble code (DTC) reading and clearing
Supported Protocols	J1850 PWM, J1850 VPW, ISO9141-2, ISO14230-4 (KWP2000), ISO15765-4 (CAN)
