ActronAir ESP Platinum QUE - Components Overview; Outdoor Unit Components; Outdoor Unit Electrical Panel

07
ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
Copyright © 2019 Actron Engineering Pty. Ltd.
Installation and Commisioning Guide
ESP Platinum QUE - Three Phase
05. Components Overview

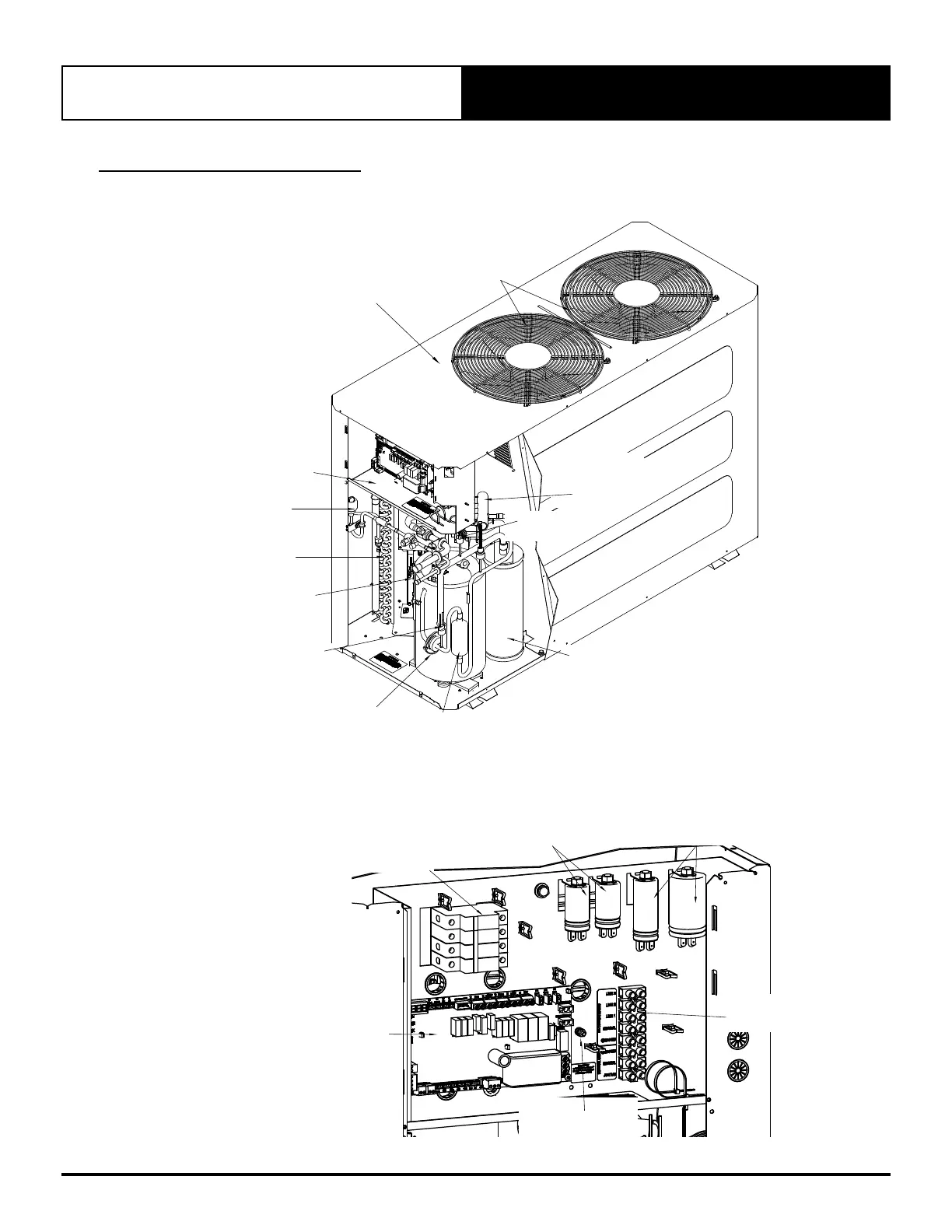

OUTDOOR UNIT COMPONENTS OVERVIEW
COMPRESSOR*
OUTDOOR UNIT
CONTROL PANEL
OUTDOOR COIL
ASSEMBLY
EEV ASSEMBLY
DISCHARGE
MUFFLER  1
LP
CONTROL
HP
CONTROL
VARIABLE
SPEED DRIVE
ACCUMULATOR
REVERSING
VALVE
OUTDOOR
UNIT
OD FANS
* Compressor has crankcase heater and wrapped with Compressor Jacket.
OUTDOOR UNIT ELECTRICAL PANEL OVERVIEW
CONTROL AND VSD
CIRCUIT BREAKER
FAN RUNNING
CAPACITORS
FAN SPEED
CAPACITORS
OUTDOOR UNIT
CONTROL BOARD
TERMINAL
BLOCKS
EARTHING BOLTS
WITH
WASHERS & NUTS
