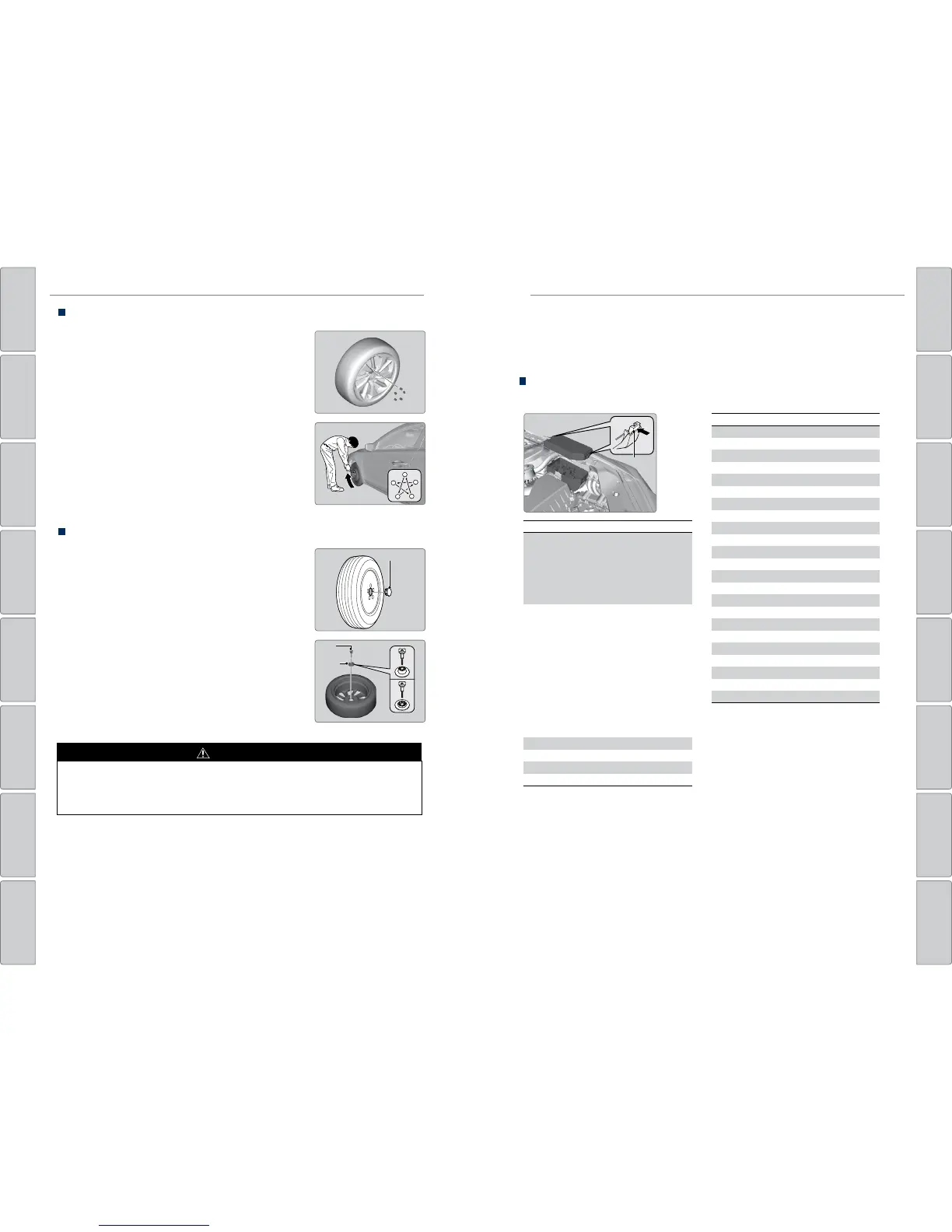

Replacing the Flat Tire
1. Remove the wheel nuts and at tire.
2. Mount the compact spare tire. Replace the
wheel nuts, and lightly tighten them.
3. Lower the vehicle and remove the jack. Tighten
the wheel nuts in the order indicated in the
image. Go around, tightening the nuts, two to
three times in this order. Do not over tighten the
wheel nuts.
Storing the Flat Tire
1. Remove the center cap, and place the at tire
face down in the spare tire well.
2. Remove the spacer cone from the wing bolt, ip
it over, and insert it back on to the bolt. Secure
the at tire with the wing bolt.
3. Return the jack and wheel nut wrench to the
tool case. Store the case in the trunk, and close
the trunk.
Loose items can y around the interior in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Center cap
Spacer
cone
Wing
bolt
Full-size
tire
Spare tire
Fuse Locations
If any electrical devices are not working, turn off the vehicle and check to see if any
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the
fuse by the fuse number and box cover number.
Engine Compartment Fuse Box
Located near the brake uid reservoir. Push the tabs to open the box.
*if equipped
Circuit Protected Amps
1
EPS 70 A
− −
ABS/VSA FSR 30 A
ABS/VSA Motor 40 A
WIPER 30 A
Main Fuse 120 A
2
IG Main 50 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
ST/MG SW 30 A
Rear Defogger 30 A
IG Main
13
0 A
Blowe
r4
0A
IG Main
23
0 A
Sub Fan Moto
r2
0A
Main Fan Moto
r2
0A
3 − −
4− −
5 Starter DIAG 7.5A
6− −
7 − −
8− −
9 − −
10 −−
11 Oil Level 7.5 A
12 Fog Lights
*
(20 A)
13 Injector 20 A
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 15 A
17 Daytime Running Lights 7.5 A
18 Stop & Horn 10 A
19 − −
20 Right Headlight Low Beam 10 A
21 IGP 15 A
22 DBW15A
23 Left Headlight Low Beam 10 A
24 −−
25 MG Clutch 7.5A
26 Washer 15 A
27 Small 20 A
28 Interior Lights 7.5 A
29 Backup 10 A
Circuit Protected Amps
Tab
Circuit Protected Amps
1
EPS 70 A
− −
ABS/VSA FSR 30 A
ABS/VSA Motor 40 A
WIPER 30 A
Main Fuse 120 A
2
IG Main 50 A
Fuse Box Main 60 A
Fuse Box Main 2 60 A
Headlight Main 30 A
ST/MG SW 30 A
Rear Defogger 30 A
IG Main130 A
Blower40A
IG Main230 A
Sub Fan Motor20A
Main Fan Motor20A
3 − −
4− −
5 Starter DIAG 7.5A
6− −
7 − −
8− −
9 − −
10
−−
11 Oil Level 7.5 A
12 Fog Lights
*
(20 A)
13 Injector 20 A
14 Hazard 10 A
15 FI Sub 15 A
16 IG Coil 15 A
17 Daytime Running Lights 7.5 A
18 Stop & Horn 10 A
19 − −
20 Right Headlight Low Beam 10 A
21 IGP 15 A
22 DB
W1
5A
23 Left Headlight Low Beam 10 A
24
−−
25 MG Clutch 7.5A
26 Washer 15 A
27 Small 20 A
28 Interior Lights 7.5 A
29 Backup 10 A
Circuit Protected Amps
